Kenwood VR-606 VR-616 User Manual

12
EN
S VIDEO
VIDEO 2
IN
DVD
IN
MONITOR
OUT
SUB WOOFER
PRE OUT
VIDEO 2
COAXIAL
DVD
DIGITAL IN
CD / DVD
OPTICAL
VOLTAGE
SELECTOR
AC110V-120V / 220V-240V~
50 / 60Hz
SWITCHED
TOTAL 90W MAX.
AC OUTLETS
AC 220-
240V~
AC 110-
120V~
SPEAKERS
SURROUND
SPEAKERS
(8-16Ω)
CENTER
SPEAKER
(8-16Ω)
FRONT
SPEAKERS
(8-16Ω)
GRAY
WHITE GREEN BLUERED
LC
R
L
R
CENTER
SUB
WOOFER
SURROUND FRONT
DVD / 6CH INPUT
PLAY IN
VIDEO 2
AUDIO
REC OUT PLAY IN
VIDEO1
PHONO
REC OUT PLAY IN
MD / TAPE
CD / DVD
L
R
VIDEO 1
OUT
VIDEO 1
IN
VIDEO
VIDEO 2
IN
DVD
IN
MONITOR
OUT
ANTENNA
GND
AM
FM
75Ω
SYSTEM
CONTROL
+
-
+
-
SUB WOOFER
PRE OUT
CENTER
SPEAKER
(8-16Ω)
FRONT
SPEAKERS
(8-16Ω)
+
-
CR L
RED WHITE GREEN
SURROUND
SPEAKERS
(8-16Ω)
SUB WOOFER
SPEAKER
(8-16Ω)
+
-
R
GRAY
L
BLUE PURPLE
SW
VR-616
VR-606
SURROUND
SPEAKERS
(8-16Ω)
+
-
R
GRAY
L
BLUE

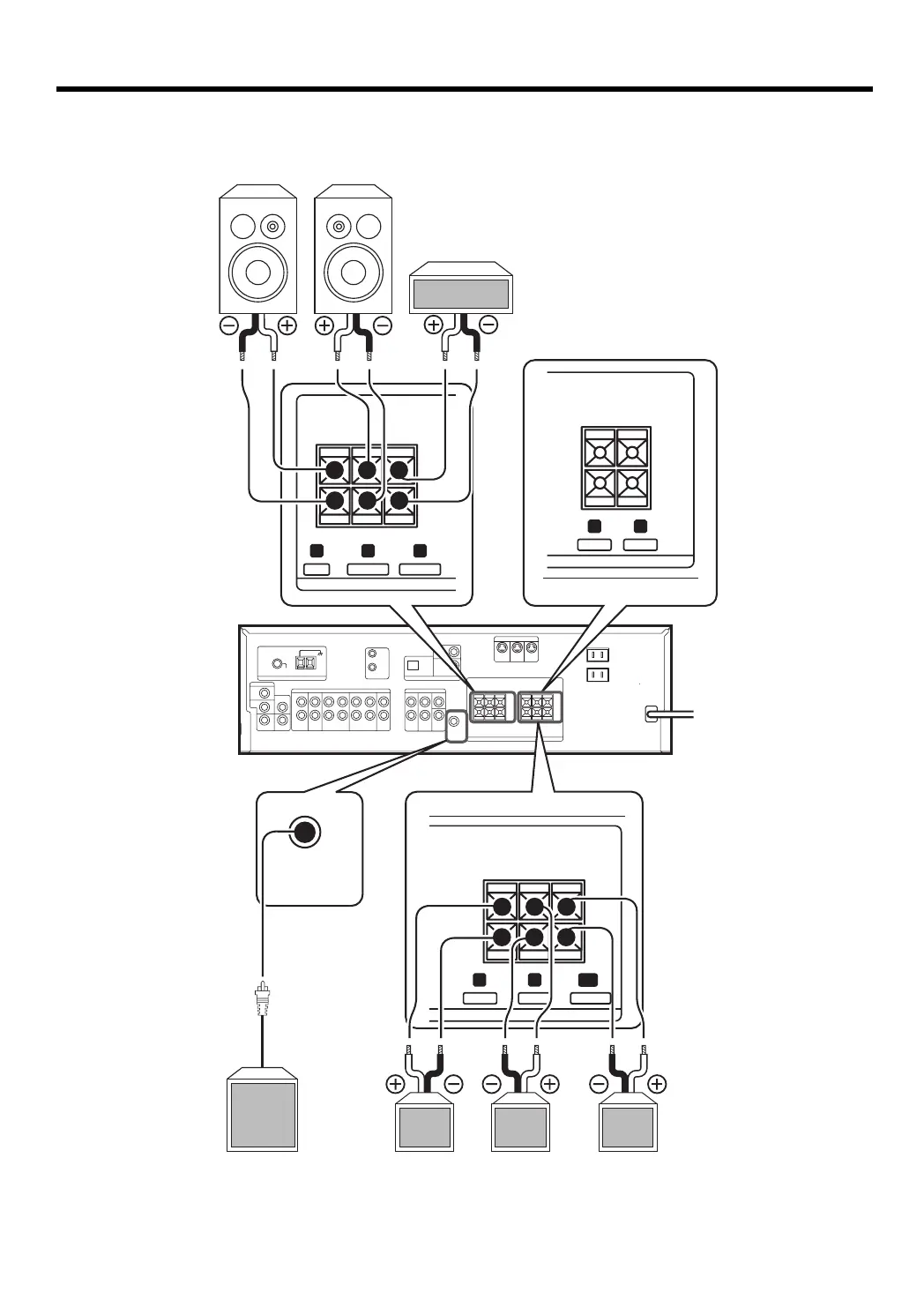

Setting up the system
Connecting the speakers
Sub woofer
Right Left
Center
Speaker
Front Speakers
Right Left
Powered
sub woofer
(For VR-606)
(Be sure to connect both
surround speakers)
Surround Speakers
*5228/07-14/EN 14/06/2002, 11:54 AM12

Kenwood VR-606 VR-616 Specifications

Audio Performance

rated power output during stereo operation	100 watts per channel
effective power output during surround operation (front)	100 W + 100 W
effective power output during surround operation (center)	100 W
effective power output during surround operation (surround)	100 W + 100 W
effective power output during surround operation (subwoofer)	100 W

Audio Characteristics

total harmonic distortion	0.05% (1 kHz, 50 W, 8Ω)
frequency response (CD)	20 Hz ~ 70 kHz, +0 dB, –3.0 dB
signal to noise ratio (CD)	95 dB
input sensitivity / impedance (CD)	550 mV / 47 kΩ
input sensitivity / impedance (DVD/6CH INPUT)	550 mV / 47 kΩ

Digital Audio

sampling frequency	32 kHz, 44.1 kHz, 48 kHz, 96 kHz
input level / impedance / wave length (optical)	(–15 dBm ~ –21 dBm), 660 nm ±30 nm
input level / impedance (coaxial)	0.5 Vp-p / 75 Ω

Video

video inputs / outputs	1 Vp-p / 75 Ω
s video inputs / outputs (luminance signal)	1 Vp-p / 75 Ω
s video inputs / outputs (chrominance signal)	0.286 Vp-p / 75 Ω

FM Tuner

tuning frequency range	87.5 MHz ~ 108.0 MHz
usable sensitivity (MONO)	1.3 µV (75 Ω)/ 13.2 dBf (75 kHz DEV., SINAD 30 dB)
50dB quieting sensitivity (STEREO)	28 µV (75 Ω)/ 40.2 dBf
total harmonic distortion (MONO)	0.5% (71.2 dBf input)
total harmonic distortion (STEREO)	0.7% (71.2 dBf input)

AM Tuner

tuning frequency range (10 kHz step)	530 kHz ~ 1, 700 kHz
usable sensitivity (30% mod., S/N 20dB)	16 µV / (600 µV/m)
signal to noise ratio (30% mod. 1 mV input)	50 dB

General

power consumption	2.2 A
ac outlet (switched)	(total 150 W, 1.25 A max.)
dimensions (W x H x D)	440 mm x 143 mm x 303 mm
weight (net)	7.7 kg (17.00 lb)
