X-E5

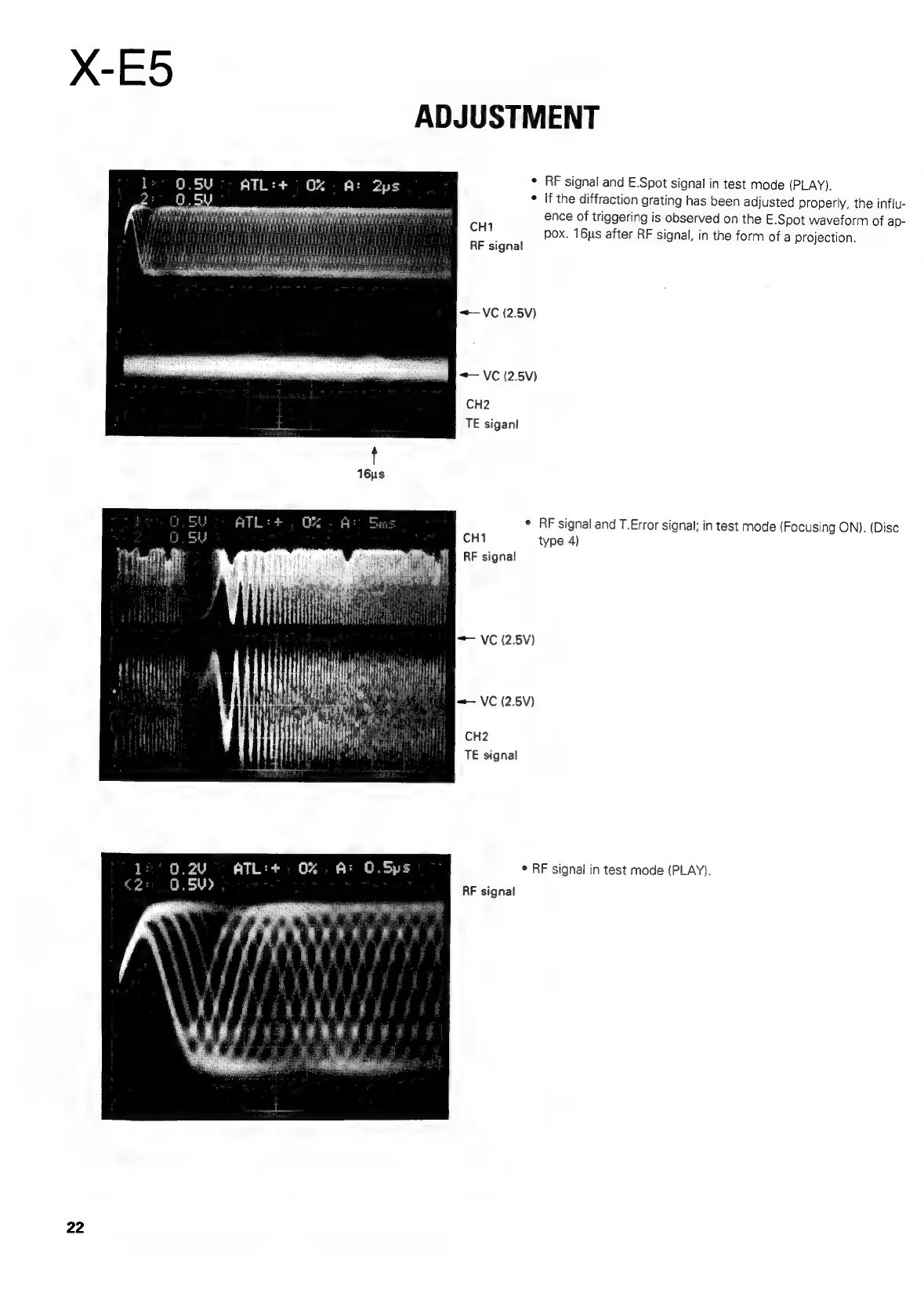

ADJUSTMENT
"
*
RF
signal
and
E.Spot
signal
in
test
mode
(PLAY).
¢
If
the
diffraction
grating
has
been
adjusted
properly,
the
influ-
ence
of
triggering
is
observed
on
the
E.Spot
waveform
of
ap-
pox.
16s
after
RF
signal,
in
the
form
of
a
projection.
CH1
RF signal
= VC (2.5V)
+ VC (2.5V)
CH2
TE sigani
*
RF
signal
and
T.Error
signal:
in
test
mode
(Focusing
ON).
(Disc
CHI
type
4)
RF
signal
= VC (2.5V)
CH2
TE signal
0 | * RF signal in test mode (PLAY).
RF signal
22
