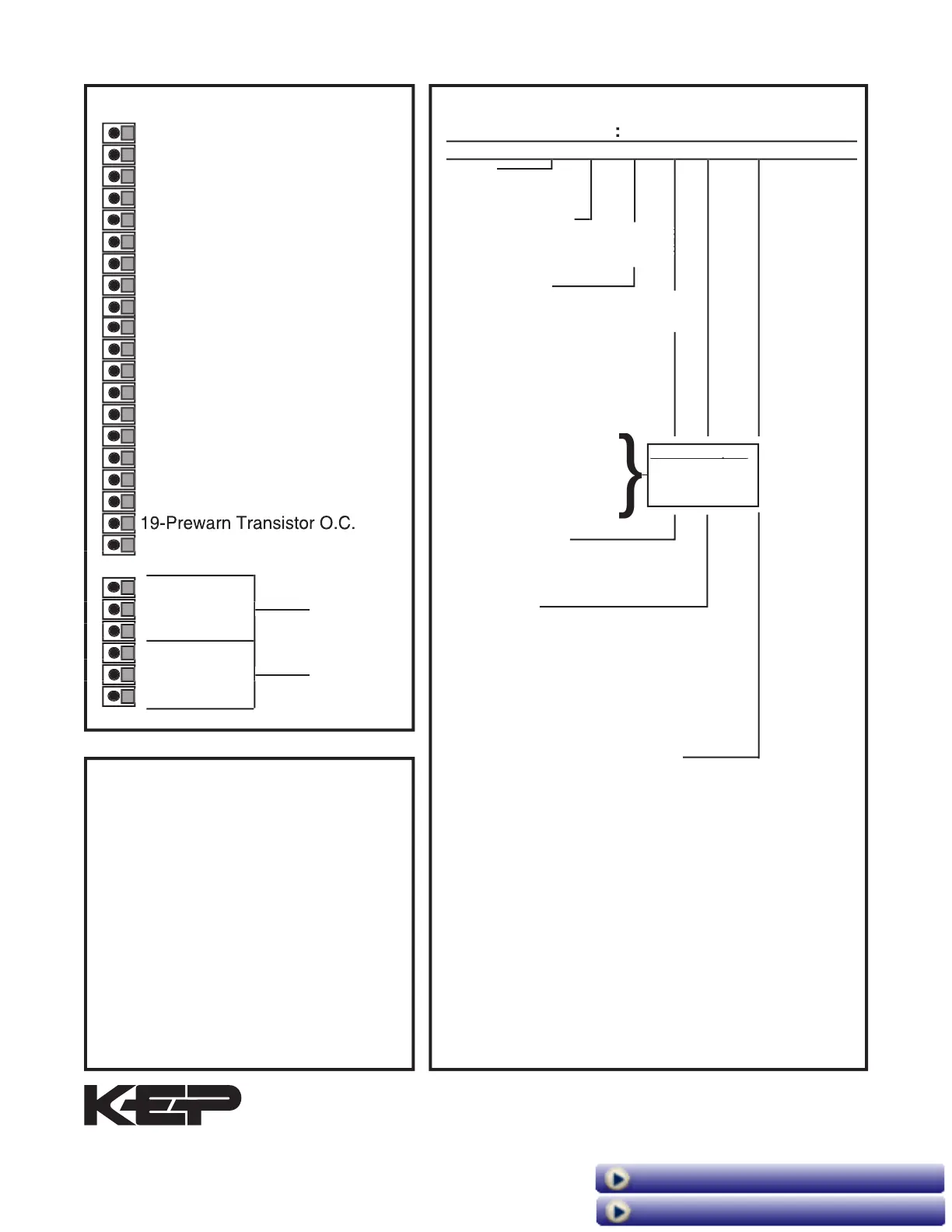

KEP BATCHtrol II - Page 51

Ordering
1 - Not Used
2 - Scaled Pulse Output O.C.
3 - Analog Output
4 - Input A (Pulse/Analog)
5 - Remote Stop/Reset Input
6 - Not Used
7 - Not Used
8 - Not Used
9 - Not Used
10 - Remote Start Input
11 - Ground (-DC), Input Common
12 - Ground (-DC), Input Common
13 - +12 Volts Out
14 - DC Power In (12 - 27 VDC)
15 - Isolate -12 Volts
16 - Isolate +12 Volts
17 - AC In
18 - AC In
19-Prewarn Transistor O.C.
19-Prewarn Transistor O.C.
19-Prewarn Transistor O.C.
19-Prewarn Transistor O.C.
19-Prewarn Transistor O.C.
19-Prewarn Transistor O.C.
19-Prewarn Transistor O.C.
19-Prewarn Transistor O.C.
19-Prewarn Transistor O.C.
19-Prewarn Transistor O.C.
20-Preset Transistor O.C.
20-Preset Transistor O.C.
20-Preset Transistor O.C.
20-Preset Transistor O.C.
20-Preset Transistor O.C.
20-Preset Transistor O.C.
20-Preset Transistor O.C.
20-Preset Transistor O.C.
20-Preset Transistor O.C.
20-Preset Transistor O.C.
R1-N.O
R1-N.O
R1-N.O
R1-N.O
R1-N.O
R1-N.O
R1-N.O
R1-N.O
R1-N.O
R1-N.O
R2-N.C. Preset
R2-N.C. Preset
R2-N.C. Preset
R2-N.C. Preset
R2-N.C. Preset
R2-N.C. Preset
R2-N.C. Preset
R2-N.C. Preset
R2-N.C. Preset
R2-N.C. Preset
R2-N.C. Preset
R2-N.C. Preset
R2-N.C. Preset
R2-N.C. Preset
R3-Common
R3-Common
R3-Common
R3-Common
R3-Common
R3-Common
R3-Common
R3-Common
R3-Common
R3-Common
R4-N.O
R4-N.O
R4-N.O
R4-N.O
R4-N.O
R4-N.O
R4-N.O
R4-N.O
R4-N.O
R4-N.O
R5-N.C. Prewarn
R5-N.C. Prewarn
R5-N.C. Prewarn
R5-N.C. Prewarn
R5-N.C. Prewarn
R5-N.C. Prewarn
R5-N.C. Prewarn
R5-N.C. Prewarn
R5-N.C. Prewarn
R5-N.C. Prewarn
R5-N.C. Prewarn
R5-N.C. Prewarn
R5-N.C. Prewarn
R5-N.C. Prewarn
R6-Common
R6-Common
R6-Common
R6-Common
R6-Common
R6-Common
R6-Common
R6-Common
R6-Common
R6-Common
Terminals
}
Decoding Part Number
:
Example BT28 A 7AX 2 A 1 3
Series:
Batchtrol II
Operating Voltage:
A: 110 VAC ±15% or 12 to 27 VDC
A: 110 VAC ±15% or 12 to 27 VDC
B: 220 VAC ±15% or 12 to 27 VDC
B: 220 VAC ±15% or 12 to 27 VDC
Control Inputs:
* 3A: STD Pulse 3-30 VDC 20 kHz Max.
* 3B: As 3A, with 4.7 K
Ω
pull up resistors
5A: 4-20 mA
5B: 0-20 mA
5C: 1-5 VDC
5D: 0-5 VDC
5E: 0-10 VDC
6A: 4-20 mA Square Law
7A:
4-20mA in, 4-20mA out
7B:
0-20mA in, 4-20mA out
7C:
1-5VDC in, 4-20mA out
7D:
0-5VDC in. 4-20mA out
7E:
0-10VDC in, 4-20mA out
Control Outputs:
1: Open Collector
2: SPDT Relay 10A
Input Speed:
* A: 0-40 CPS (Inputs 3A, 3B)
* C: 0-400 CPS (Inputs 3A, 3B)
* E: 0-20K CPS (Inputs 3A, 3B)
K: Inputs 5A-5E, 6A, 7A-7E
* Dip switch selectable,
all units can be fi eld modifi ed easily.
Options:
(Multiple Options Available)
1: RS232 Serial Interface
2: RS422 Serial Interface
3: 4-20 mA Output (Input 3A or 3B only)
3X: 0-20 mA Output (Input 3A or 3B only)
3Y: 0-5VDC Output (Input 3A or 3B only)
3Z: 0-10VDC Output (Input 3A or 3B only)
4: 16 Point Linearization Opt.
ET: Extended Temperature:
-40° to 158°F (-40° to 70° C)
ET not available with analog inputs or outputs
Accessories:
NEMATROL 4X1 - NEMA 4X/IP 65 Enclosure for
wall mounting accommodating 1 ‘TROL Series unit.
NEMATROL 4X2 - NEMA 4X/IP 65 Enclosure for
wall mounting accommodating 2 ‘TROL Series unit.
FLEXCOVER #36120
XTROL7/4- Explosion proof
housing
}
For Other Outputs:
For Other Outputs:
Add X for 0-20mA out
Add Y for 0-5V out
Add Z for 0-10V out
WARRANTY
This product (excluding batteries) is warranted
against defects in materials and workmanship for
a period of two (2) years from the date of shipment
to Buyer.
The Warranty is limited to repair or replacement of
the defective unit at the option of the manufacturer.
This warranty is void if the product has been altered,
misused, dismantled, or otherwise abused.
ALL OTHER WARRANTIES, EXPRESSED OR
IMPLIED, ARE EXCLUDED, INCLUDING BUT
NOT LIMITED TO THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE.
