770/GS/GJ-BA-defsi-0023 127
6.8 Pin Assignment Chart
Female Interface Connector:
25-position D-submini, DB25S, with screw lock hardware for cable gland
Male Connector Use:
(Recommendation)
25-pin D-submini, DB25S, with integrated shielded cable clamp assembly (Amp type
826 985-1C) and fastening screws (Amp type 164 868-1)
Warning when using pre-wired RS 232 C Connecting Cables !
RS 232 C cables purchased from other manufacturers often have incorrect pin
assignments for use with
KERN
balances. Therefore, before connecting the cable,
make sure to check the pin assignment according to the chart below and disconnect any
lines that are assigned as „Internally Connected“ (e.g. Pin 6). Failure to do so can result
in malfunctioning or may even completely ruin your balance and/or on-line peripheral
device.
Pin Assignment:
Pin
Pin
Pin
Pin
Pin
Pin
Pin
Pin
Pin
Pin
Pin
Pin
Pin
Pin
Pin
Pin
Pin
Pin
Pin
Pin
Pin
Pin
Pin
Pin
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
: Signal Ground
: Data Output (TxD)
: Data Input (RxD)
: Internal Ground (GND)
: Clear to Send (CTS)
: Internally Connected
: Internal Ground (GND)
: Internal Ground (GND)
: Reset_In*)
: Not Connected
: +12V
: Reset_Out*)
:+5V
: Internal Ground (GND)
: Universal Switch
: Not Connected
: Not Connected
: Not Connected
: Not Connected
: Data Terminal Ready (DTR)
: Internal Ground (GND)
: Not Connected
: Not Connected
: Not Connected
: +5V

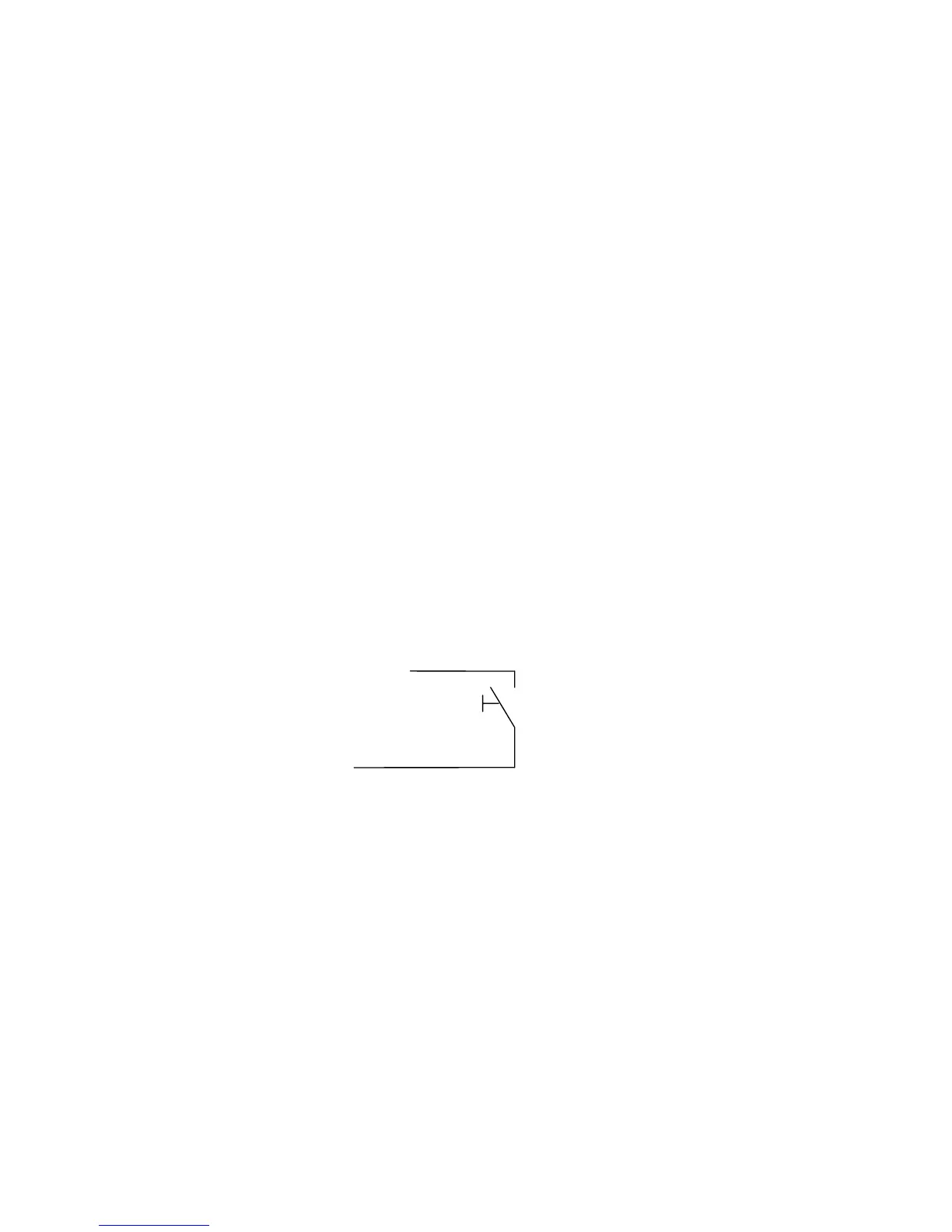

Connection to a switch
