7 Operation

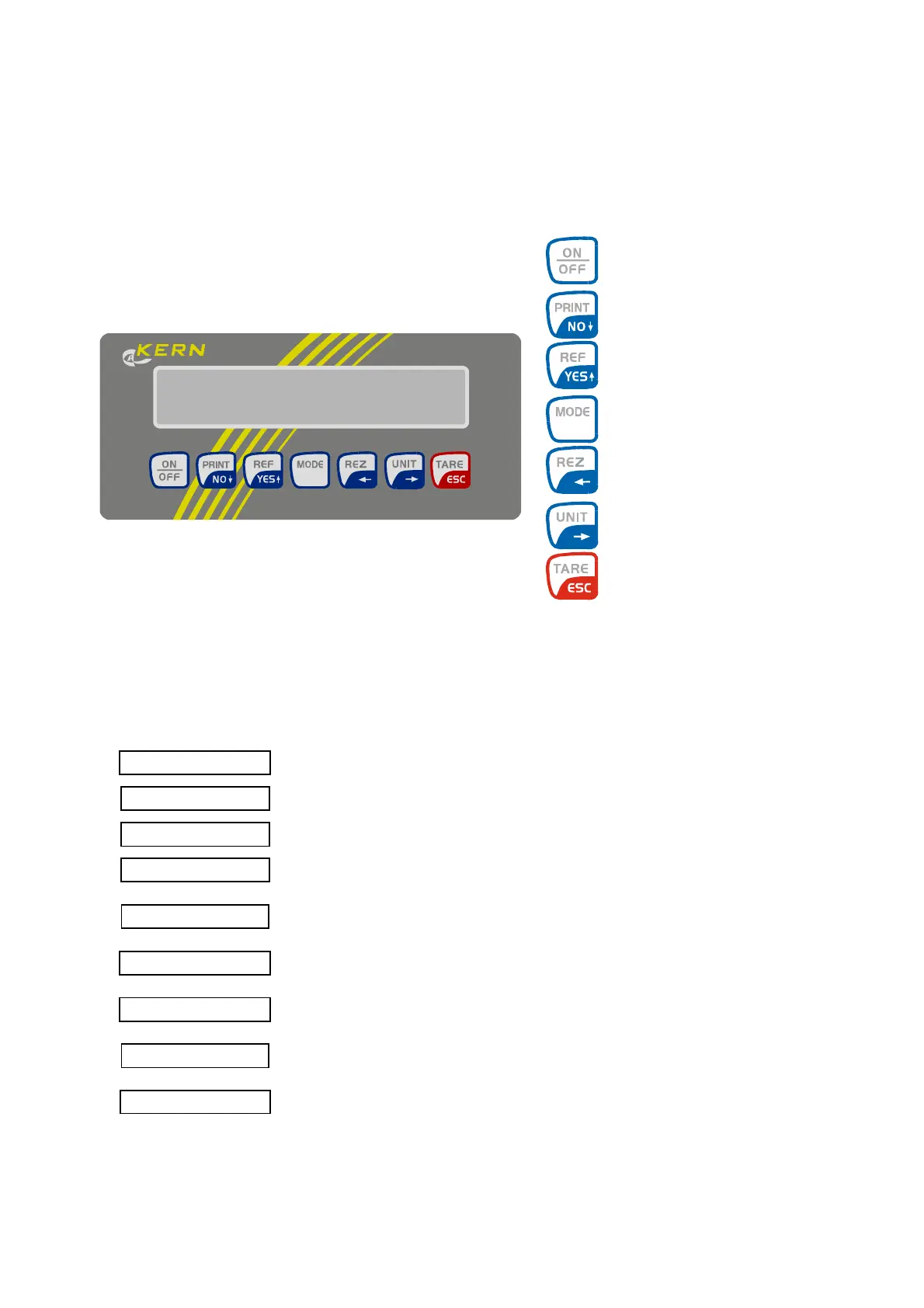

7.1 Display control panel
Keyboard
ON / OFF
Print weighing result
in MODE: No / descending
in % and counting mode:
Form reference
in MODE: Yes / ascending
MODE configuration
(see mode structure diagram page 2)
Formula weighing
in MODE: to left
Change g-pieces
Unit changeover
in MODE: to right
Tare
in MODE: back in weighing operation
Display-Symbol Meaning
==OVERLOAD==
Overload: Weighing range has been exceeded
= ============
Underload: Weighing range has been fallen short of
<< .
In counting and % mode: part too light
 .
Automatic tare active
PTA .
Preselect tare Tare pre-selection active
D .
Difference in % during percentage weighing
Net .
Net weight of the components during formula preparation
SUM .
Gross weight of several components during formula prepa-
ration
Æ .
Balance is in counting mode and currently displaying the
weight value of the counting amount
