Step 2. Aesthetic panel’s dimensions and installation

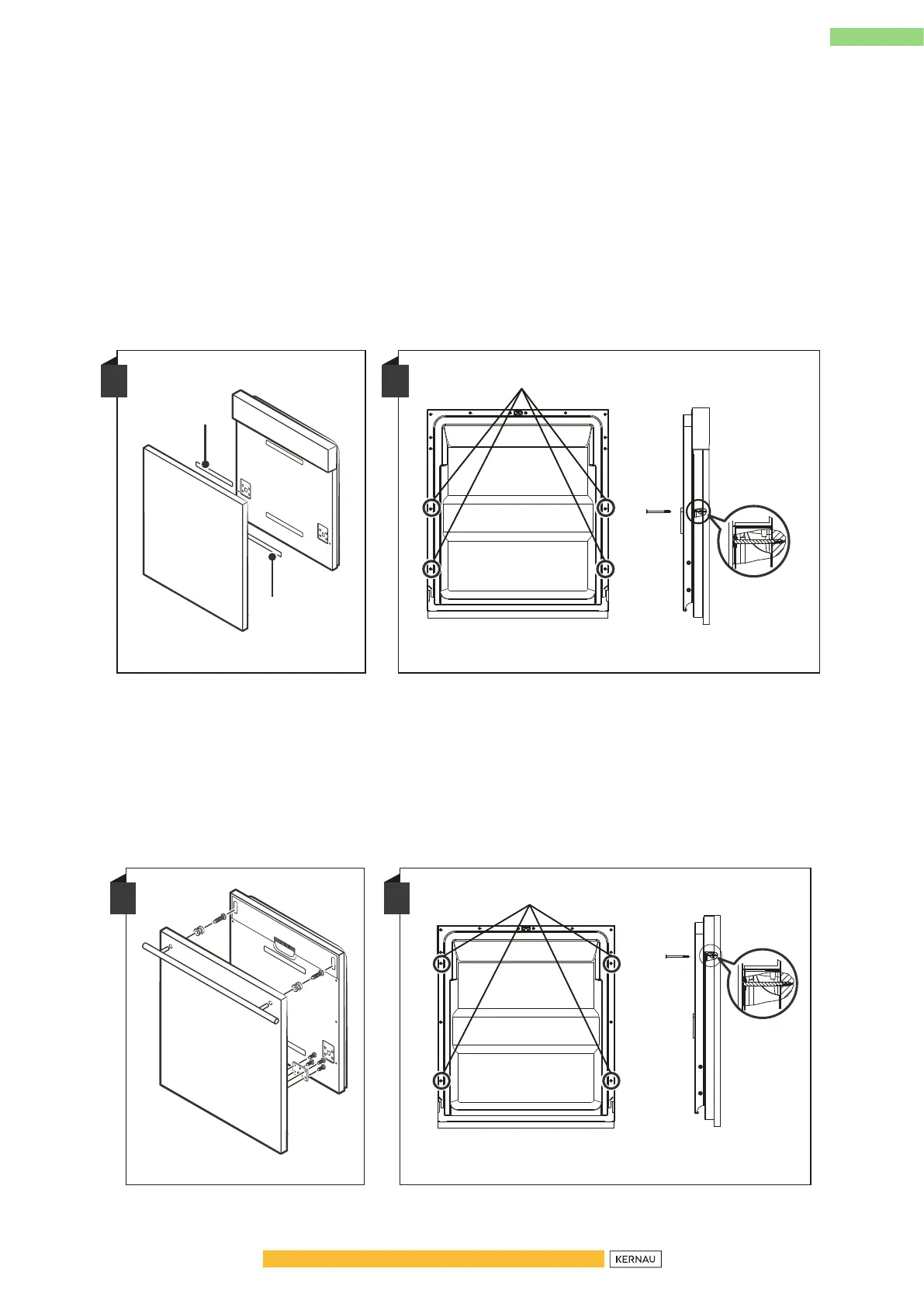

The aesthetic wooden panel could be processed according to the installation drawings.
Semi-integrated model
Magical paster A and magical paster B be disjoinedon ,magical paster A on the
aesthetic wooden panel and felted magical paster B of the outer door of dishwasher
(see figure A).
After positioning of the panel, fix the panel onto the outer door by screws and bolts
(See figure B).
Full-integrated model
Install the hook on the aesthetic wooden panel and put the hook into the slot of the outer
door of dishwasher (see figure A).
After positioning of the panel , fix the panel onto the outer door by screws and bolts
(See figure B).
A
Magical paster
Magical paster
B
2. Pin up the four long screws
1. Take away the four short screws
B
2. Pin up the four long screws
A
1. Take away the four short screws
