5.6. Built-In Installation (for the integrated model)
Step 1. Selecting the best location for the dishwasher
The installation position of dishwasher should be near the existing inlet and drain hoses
and power cord.

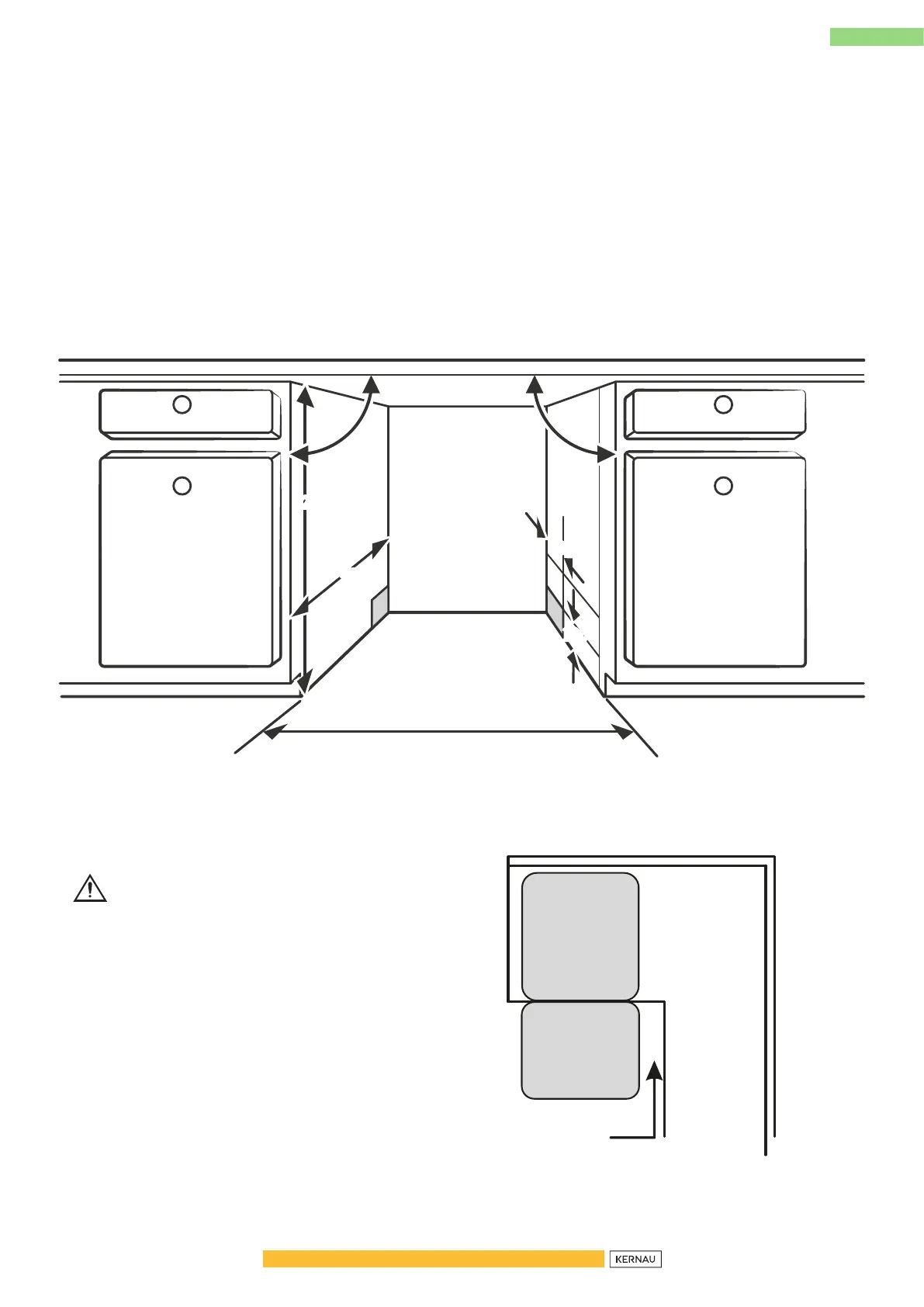

Illustrations of cabinet dimensions and installation position of the dishwasher.
• Less than 5 mm between the top of dishwasher and cabinet and the outer door
aligned to cabinet.
• If dishwasher is in stalled at the corner of the cabinet, there should be some
space when the door is opened.
NOTE:
Depending on where your electrical
outlet is, you may need to cut a hole in
the opposite cabinet side.
90 °
90 °
580mm
820mm
100
Electrical, drain
line entrances
and water supply
Space between cabinetSpace between cabinet
bottom and floorbottom and floor
600 mm( for 60cm model )
80
450
mm (for 45cm model )
CabinetDishwasher
Door of
dishwasher
Minimum space
of 50mm
