: Overview 3

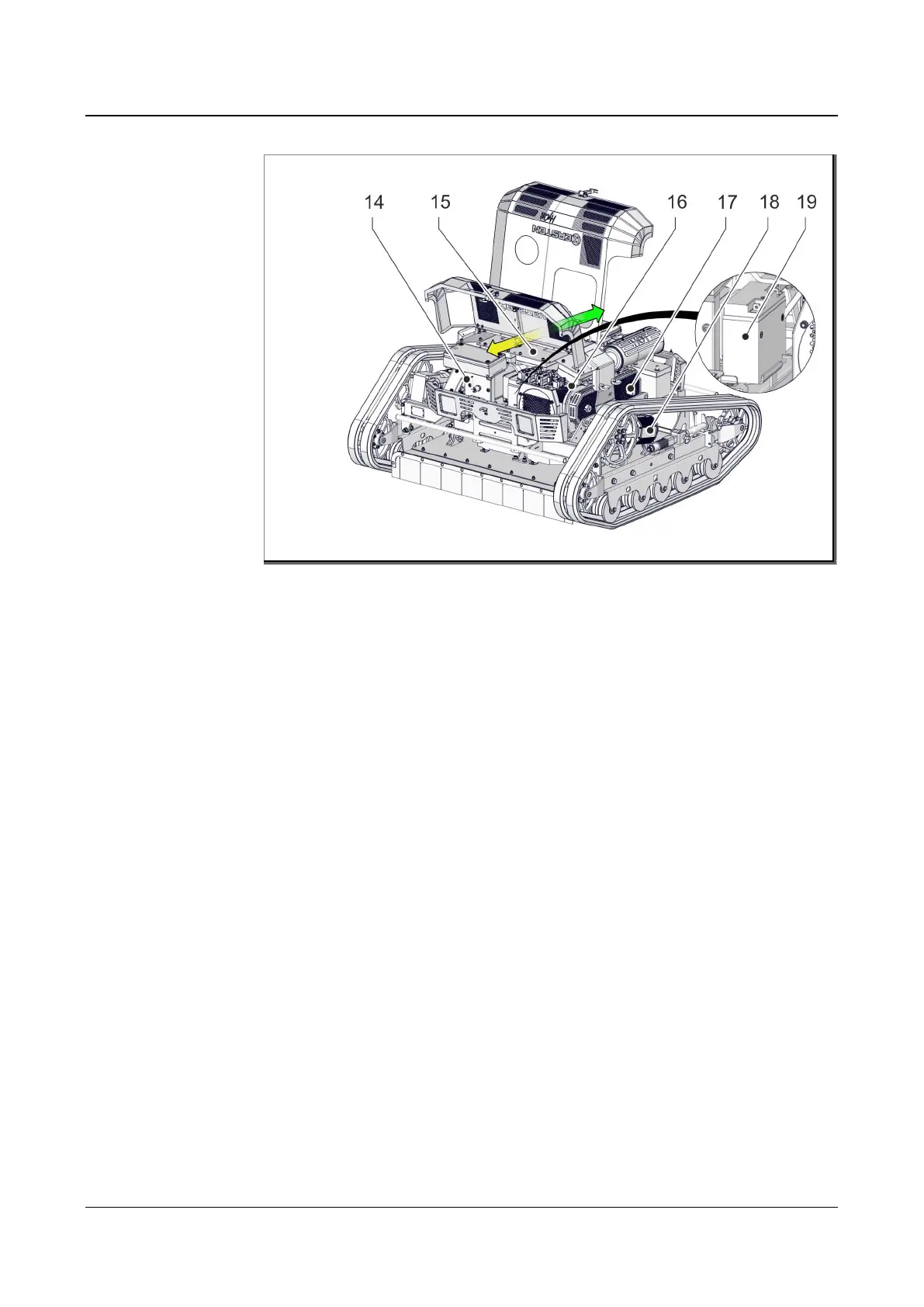

14 Disconnect switch
15 Four motor controller
16 Generator
17 Toothed belt drive between the combustion engine and generator
18 Right caterpillar drive electric motor
19 12-volt battery
The remote-controlled tracked mover is primarily designed for mowing areas on
slopes up to a gradient of 50° = 120%.
A combustion engine (9) drives a generator (16) via a connecting toothed drive belt
(17). This provides the electrical energy for the electrical caterpillar drives (13 and
18) and the electrical drive of the mulching/mowing unit (12). Between the
generator (16) and the three drive motors (12, 13 and 18) there are four lead
batteries connected in series as back-up batteries (8). These back-up batteries (8)
can be used to operate the tracked mower temporarily without the combustion
engine (9).
The tracked mower is operated via a wireless remote control (see Chapter 6.2
Wireless remote control on Page 31).
