7.4.1 Changing a disc and all the blades on it

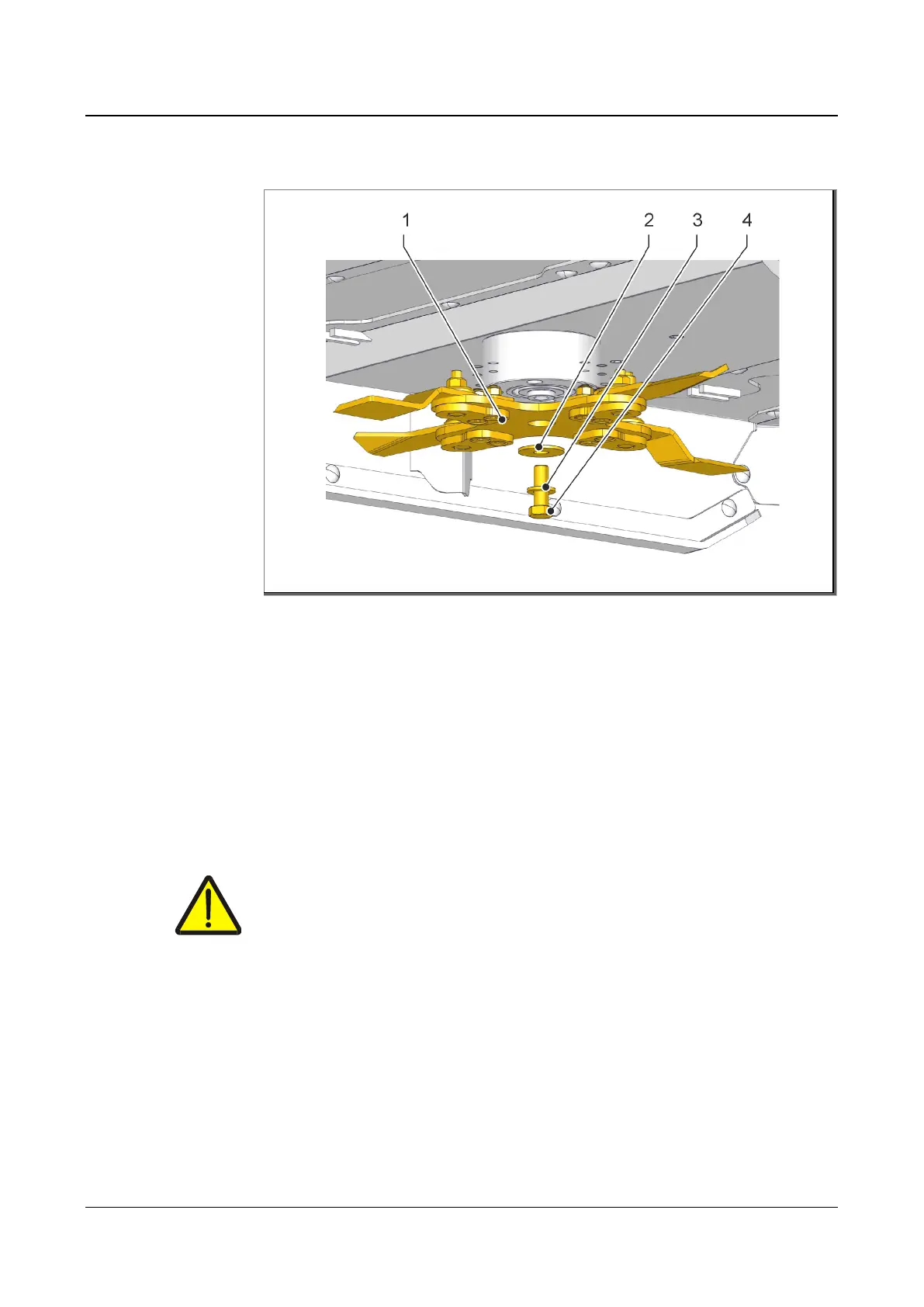

Fig.
14
: Changing the disc of the mowing unit
1 Mowing unit blade disc
2 Washer
3 Wedge lock washer
4 Hexagon bolt
To remove the blade disc (1), proceed as follows:
1. Loosen and remove the hexagon bolt (4). Ensure that the blade disc (1)
does not fall off here.
2. Remove the blade disc (1), washer (2) and wedge lock washer (3) by gently
pulling them downwards.
WARNING
When mounting the blade disc (1), a new wedge lock washer (3) must be used!
Tighten the hexagon bolt (4) with a torque of 240 Nm in accordance with applicable
standards.
