7.4.2 Changing opposite blades

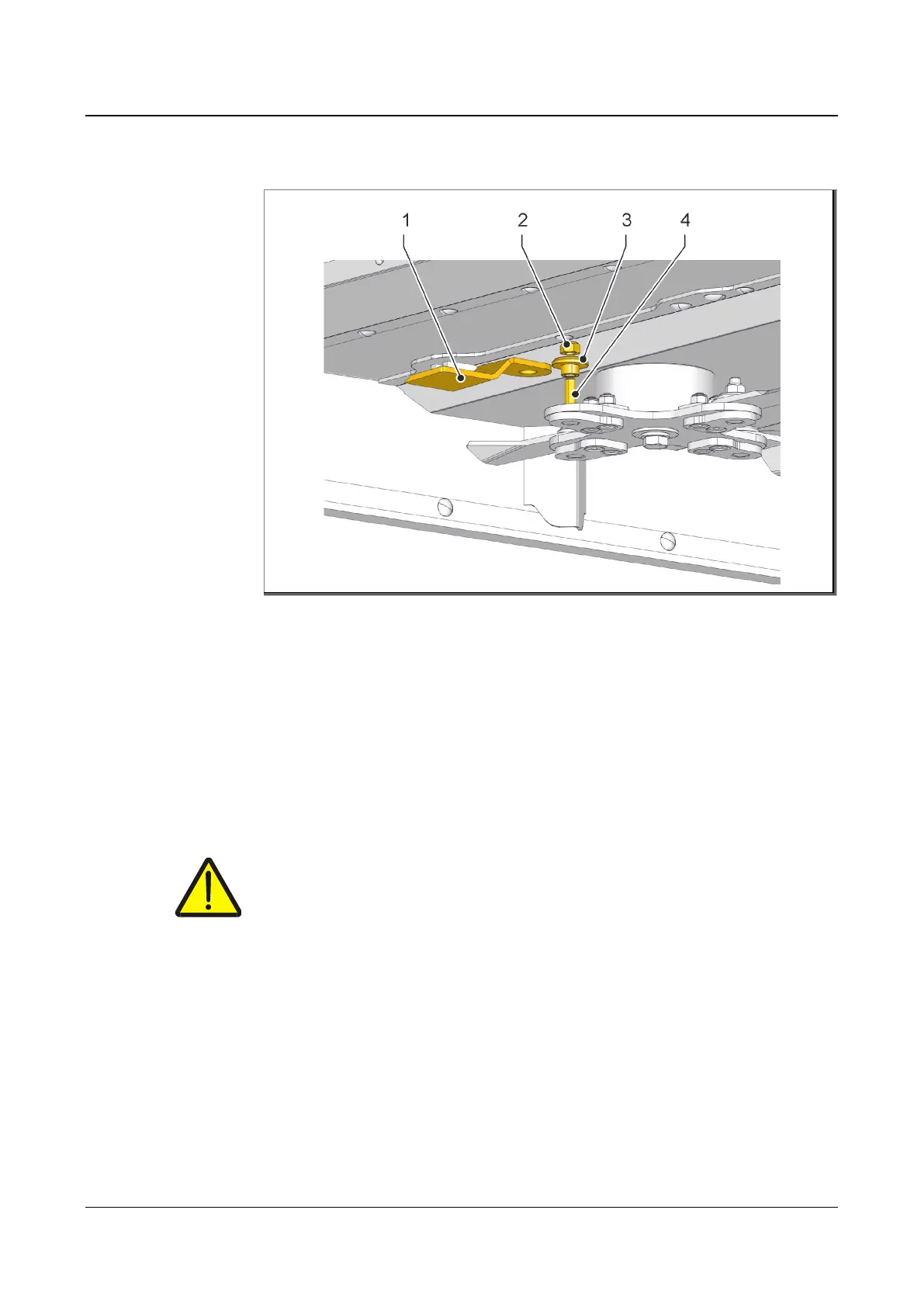

Fig.
15
: Changing the blades of the mowing unit
1 Mowing unit blades
2 Locking nut
3 Spacer sleeve
4 Hexagon bolt
To remove the blades, proceed as follows:
1. Loosen the locking nut (2) and remove it from the hexagon bolt (4).
2. Remove the mowing unit blades (1) and spacer sleeve (3) from the top.
Ensure that the hexagon bolt (4) does not fall off here.
WARNING
When installing the new blades (1), care must be taken to ensure that the blades
(1) can move freely around the spacer sleeve (3).
New locking nuts (2) and hexagon bolts (4) must be used when the blades are
changed!
Tighten the locking nut (2) with a torque of 120 Nm in accordance with applicable
standards.
