7.6 Lifting up the chain
If the rubber drive chain has fallen out of place or if a new one needs to be
installed, then the drive chain needs to be lifted up.
Fig.
17

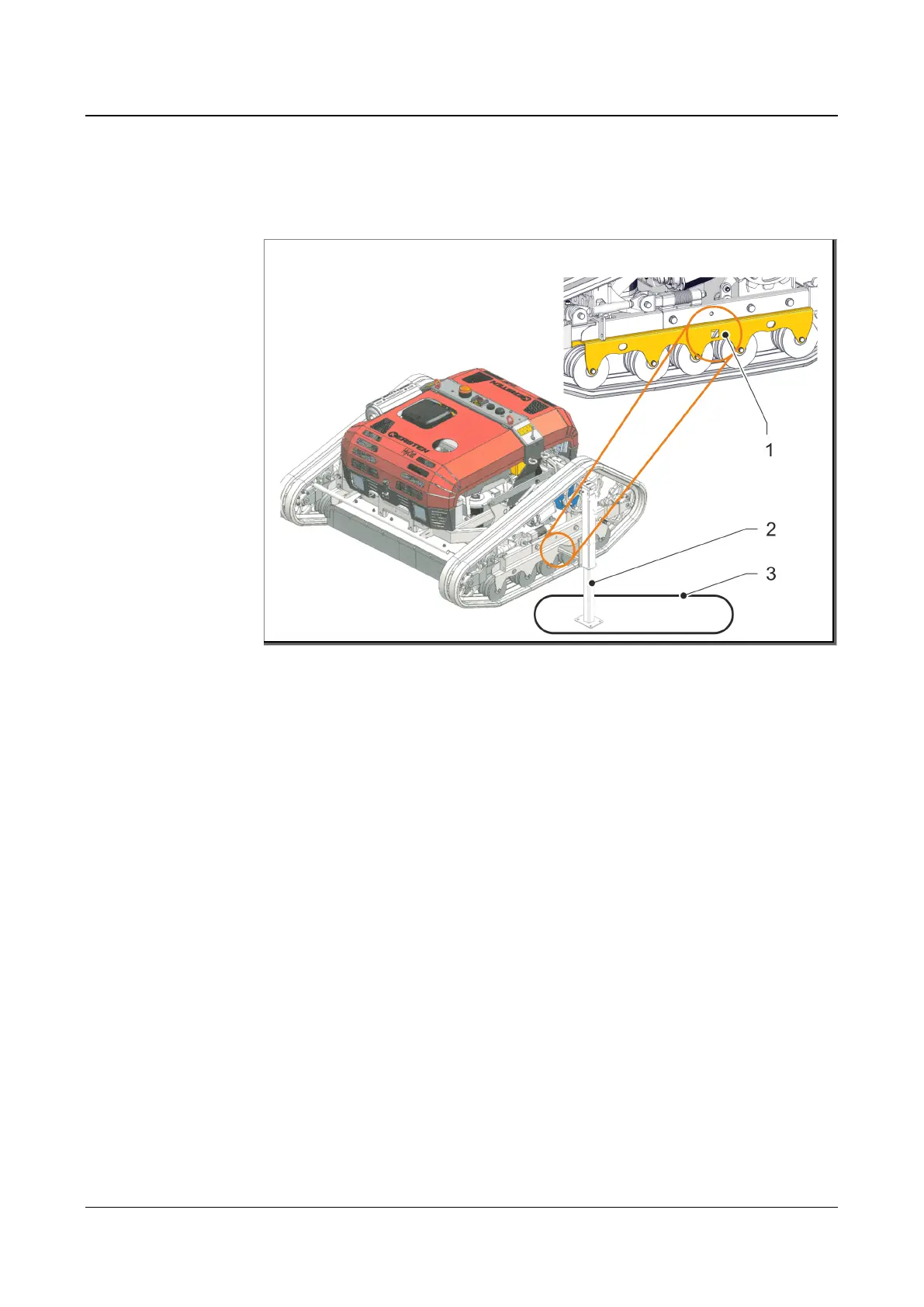

: Lift the mower up on the side
1 Rectangular receptacle for the bolt of the lifting element
2 Lifting element (jack; available as an option)
3 Rubber drive chain
1. Before using the lifting element (2), the new rubber drive chain (3) must be
positioned so that the foot of the lifting element (2) is standing within the
closed drive chain (3) lying on the floor.
2. The bolt of the lifting element (2) must be plugged into the rectangular
receptacle (1) of the roller carrier.
3. Use the crank of the lifting element (2) to raise the mower on one side.
