B
3
1
2
Description
877-00136_1.0_17.09.2018
32

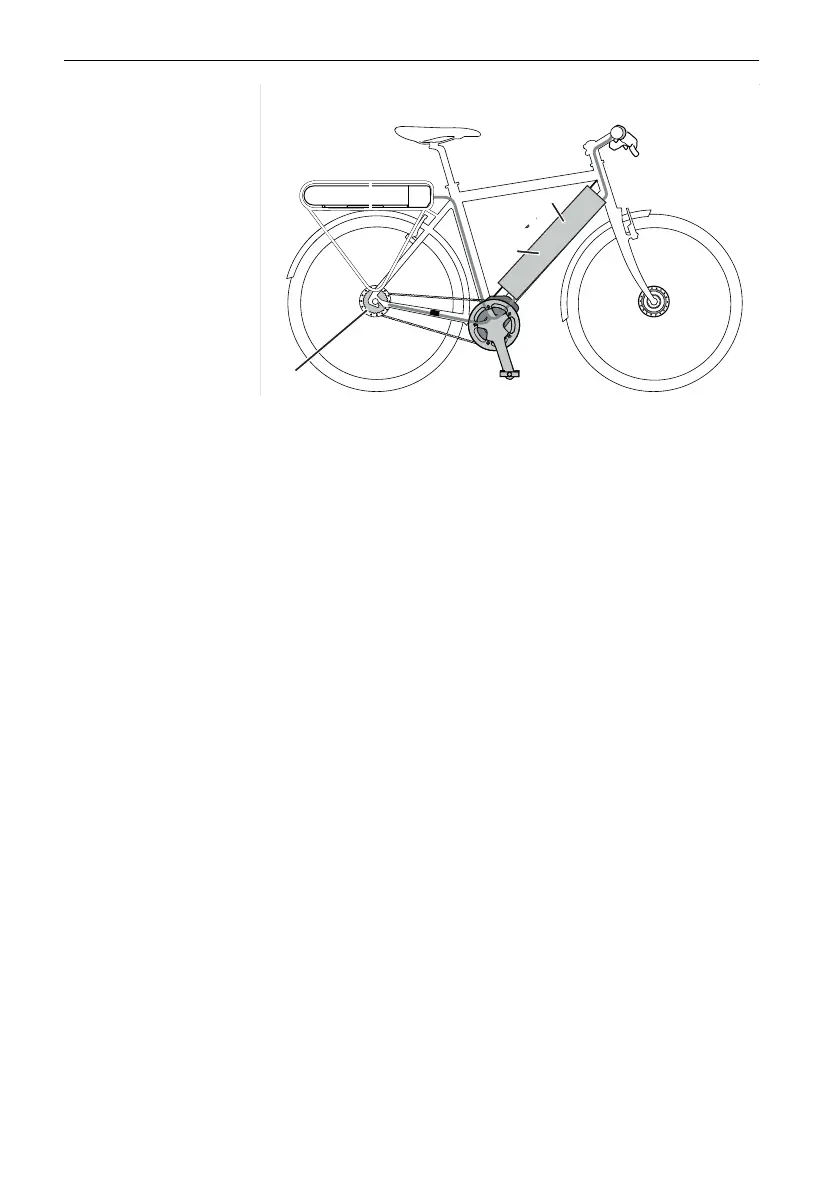

Figure 8: Diagram of electric drive system
1 Operating element with display
2 Integrated battery
3 Motor
• a charger which is designed for this battery.
As soon as the required muscle power from the rider
pedalling passes a certain level, the motor is activated
gently and assists the pedalling motion of the rider.
The motor force is determined by the set level of
assistance.
The bicycle does not have a separate emergency stop
or emergency shut-off button. The drive system can be
stopped in case of emergency by removing the display.
The motor switches off automatically as soon as the
rider no longer pedals, the temperature is outside the
permitted range, there is an overload or the shut-off
speed of 25 km/h has been reached.
