Lead conguration for No-Trip testing
In No-trip mode the tester can be used with the mains lead KAMP12 when testing at 13A
socket outlets, or the distribution board lead set ACC063 for testing at other points in the
circuit. In No-trip mode the 3 colour coded prods/crocodile clips of the test lead should be
connected to the corresponding Line, Neutral and Earth terminals.
Lead conguration for High current 2-wire testing
The high current test mode requires the use of the distribution board lead set ACC063
congured in 2-wire mode.
To arrange the test leads in 2-wire mode pull the blue prod or crocodile clip off the blue test
lead and plug the Blue probe into the back of the Green 4mm connector as shown below.
You will now have the Earth and Neutral leads connected together ready for connection to the
Earth or Neutral conductor to be tested.

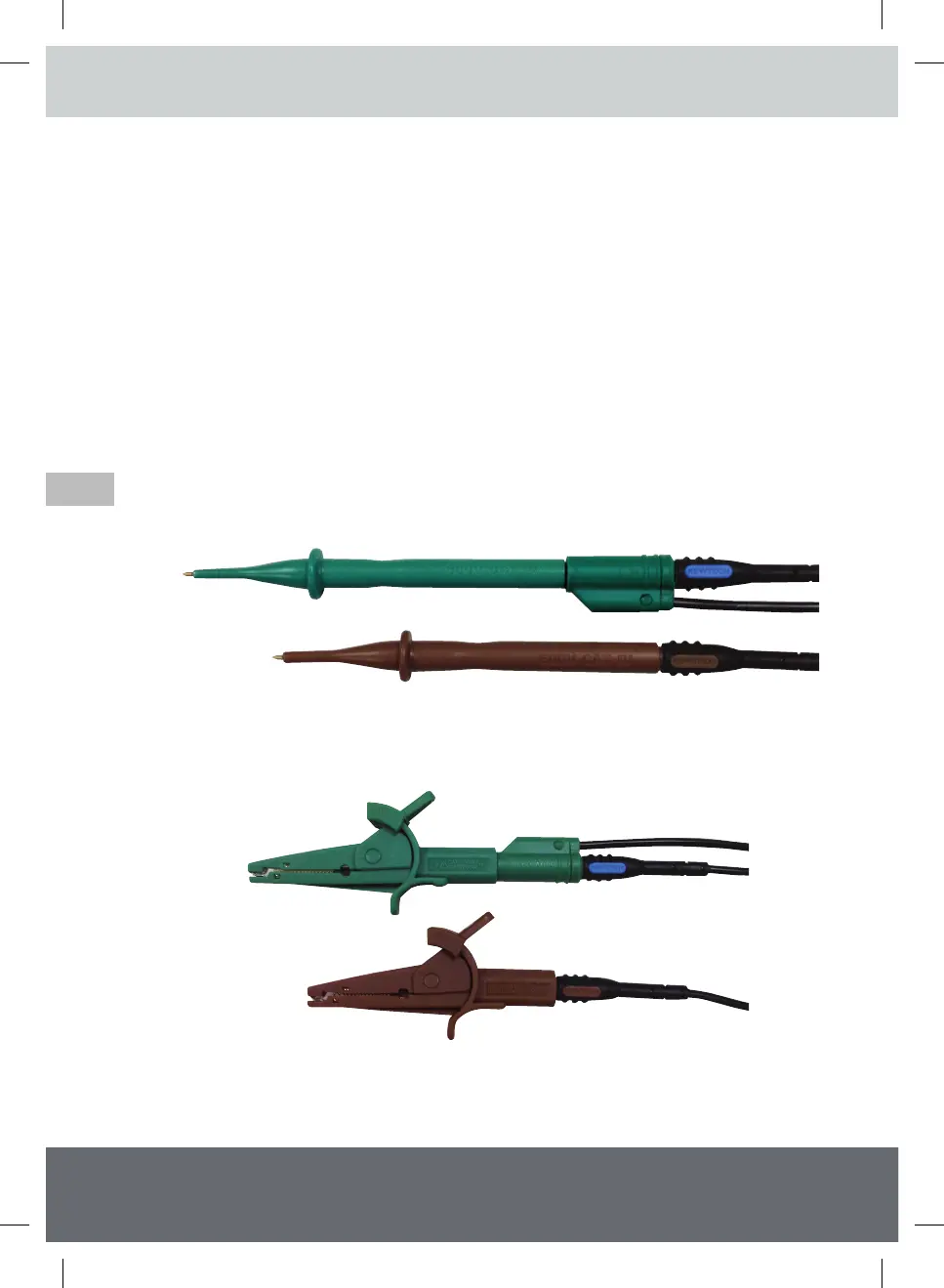

Fig 3. Prods in 2 wire testing conguration
Fig 4. Crocodile clips in 2 wire testing conguration
