9
Test lead inputs
The test lead input/ output terminals are separated into two groups by the clear sliding
interlock cover.
When slid to the left (gure 1) the interlock cover exposes only the Blue/Black terminal
(marked -) and the Brown/Red terminal (marked +). These are used for the Continuity and
Insulation test functions.
For both of these functions two of the test leads from the ACC063 set are used. The Brown
4mm Plug should be connected to the Brown/Red socket (+) and the Blue 4mm plug
connected to the Black/Blue socket (-)

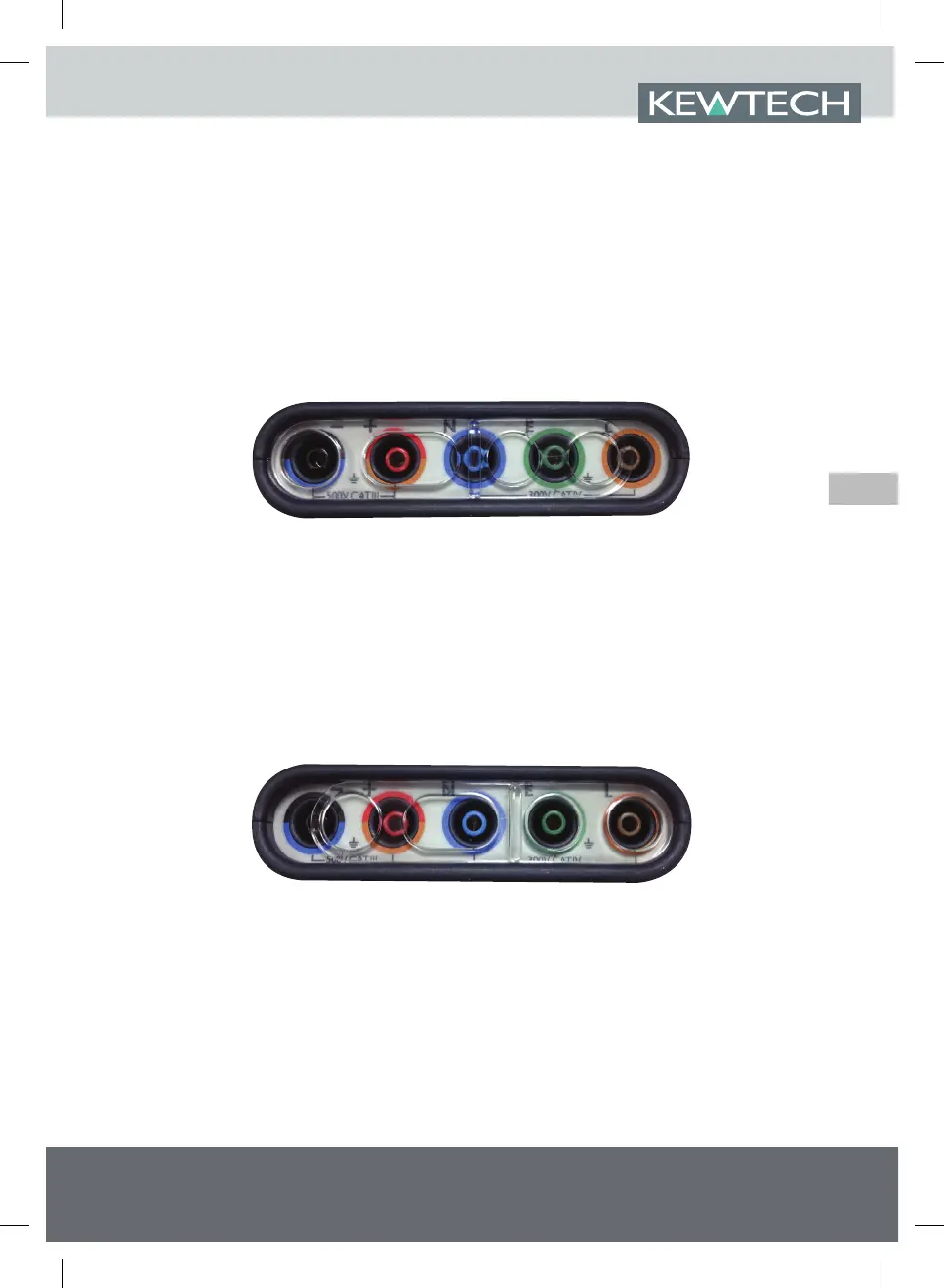

Fig.1 Interlock in position for Continuity and Insulation testing
Moving the interlock cover to the right (gure 2) blanks off these inputs and exposes
the Blue (Neutral), Green (Earth) and Brown (Line) inputs that are used for Loop and RCD
testing. This allows for connection of either the 13A mains lead (KAMP12) or the 3-pole test
lead set ACC063 for the live testing functions.
When using these lead sets the Brown 4mm plug is connected to the Brown/Red socket
(L), the Blue 4mm plug to the Blue/Black socket (N) and the Green 4mm plug to the Green
socket (E).
Fig.2 Interlock in position for RCD & Loop testing
