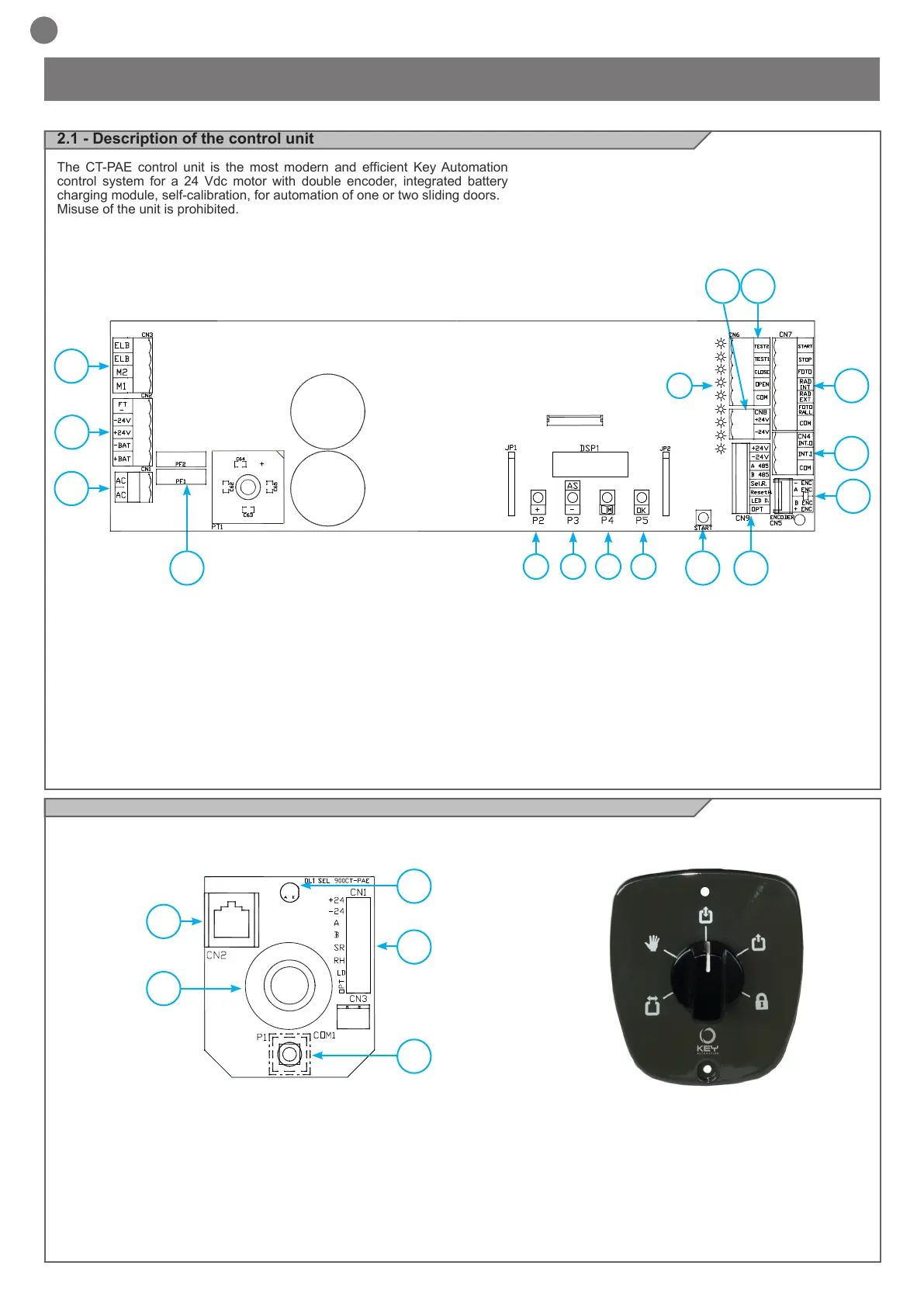

2.1 - Description of the control unit
The CT-PAE control unit is the most modern and efcient Key Automation
control system for a 24 Vdc motor with double encoder, integrated battery
charging module, self-calibration, for automation of one or two sliding doors.
Misuse of the unit is prohibited.
Description of connections CT-PAE
1 - Power supply connector from transformer 24 Vac
2 - Batteries and power supply connection connector accessories 24V
3 - Motor and electric lock connection connector
4 - Interlock connection connector
5 - Motor encoder connector
6 - Commands and test connection connector
7 - Connector for start-stop and internal/external radar and photocells
8 - Power supply connector accessories 24V
9 - Digital/manual selector connection connector
10 - Start button
11 - Safety fuses 2x15A
F1 Power transformer
F2 Power battery
12 - P2 button +
13 - P3 button -
14 - P4 button M (Menu)
15 - P5 button OK (Conrm)
16 - Commands and safety LED indicator
CT-PAE is equipped with a display that allows easy pro-
gramming and constant monitoring of inputs; in addition,
the menu structure allows easy setting of working time and
operating modes.
2 - PRODUCT OVERVIEW
A
E
D
B
C
Description of connections SELCT-PAE
A - CN1 Connection block to be connected to CN9 on CT-PAE control unit
B - CN2 Telephone connector to be connected to EASY external pad
C - COM Manual selector for selecting functions
D - P1 reset button
E - DL1 error LED indicator
2.2 - Description of manual selector SMNPAE
The manual selector permits variation of the control unit functioning modes
1
2
3
5
4
7
910
12 13 14 15
68
11
16
