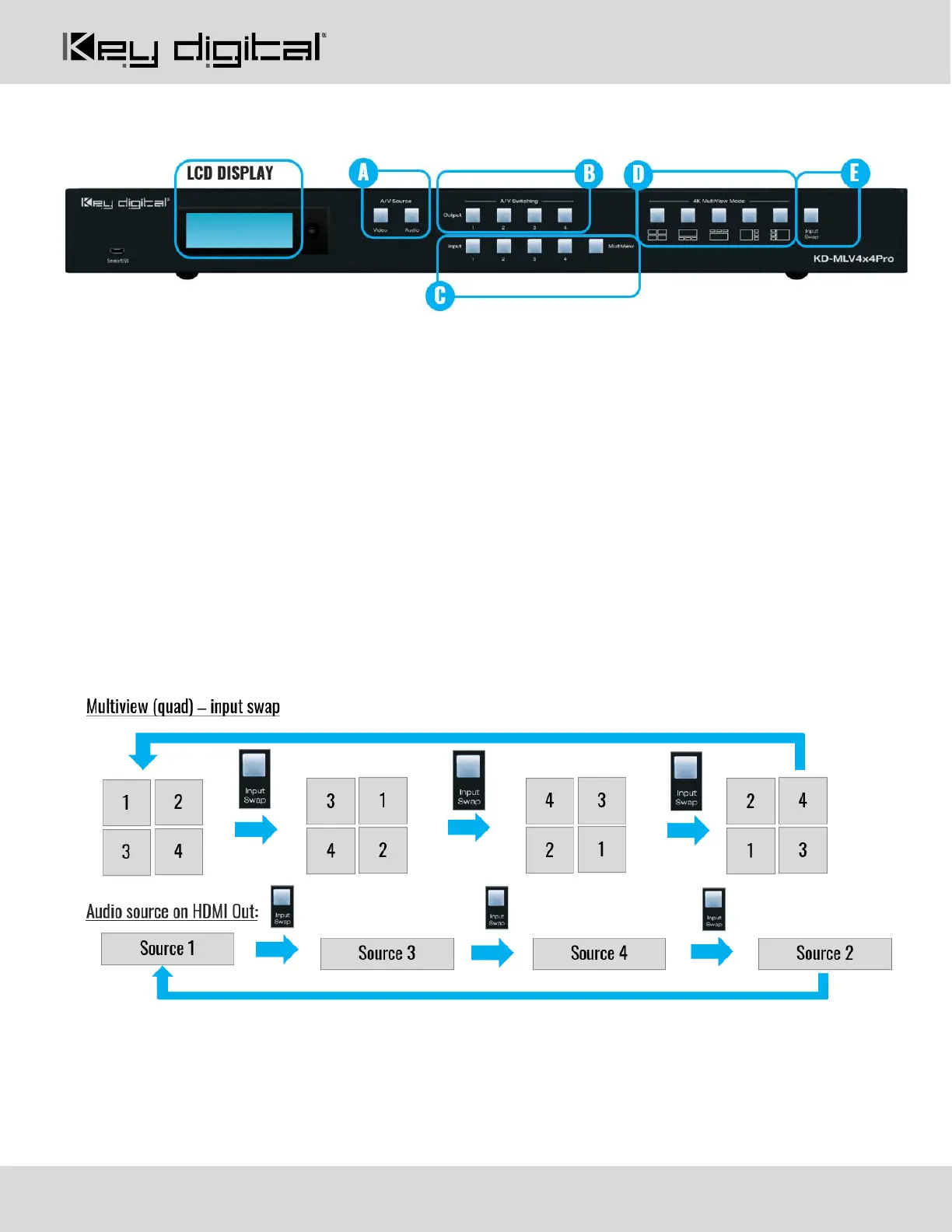

Front Panel Control & LCD
• Switching / Multi-view select: HDMI Video & Audio
1. Video button (section A)
2. Output button (section B)
3. Input button (full screen) or MultiView button (section C)
• Matrix Switching: External Audio only
1. Audio button (section A)
2. Output button (section B)
3. Input button (section C)
• Choose multi-view layout for all multi-view zones
1. 4K MultiView Mode button (section D)
• The Input Swap button (section E) rotates souce positioning when in a multi-view layout.
o When in quad layout, the HDMI audio will be of the source in the top-left position
o When in multi-view layout, the HDMI audio will be of the source in the large/primary position
o External audio does not automatically follow the HDMI audio. It must be switched independently.
o Sources rotate clockwise as pictured:
