Connections, Buttons, and LEDs

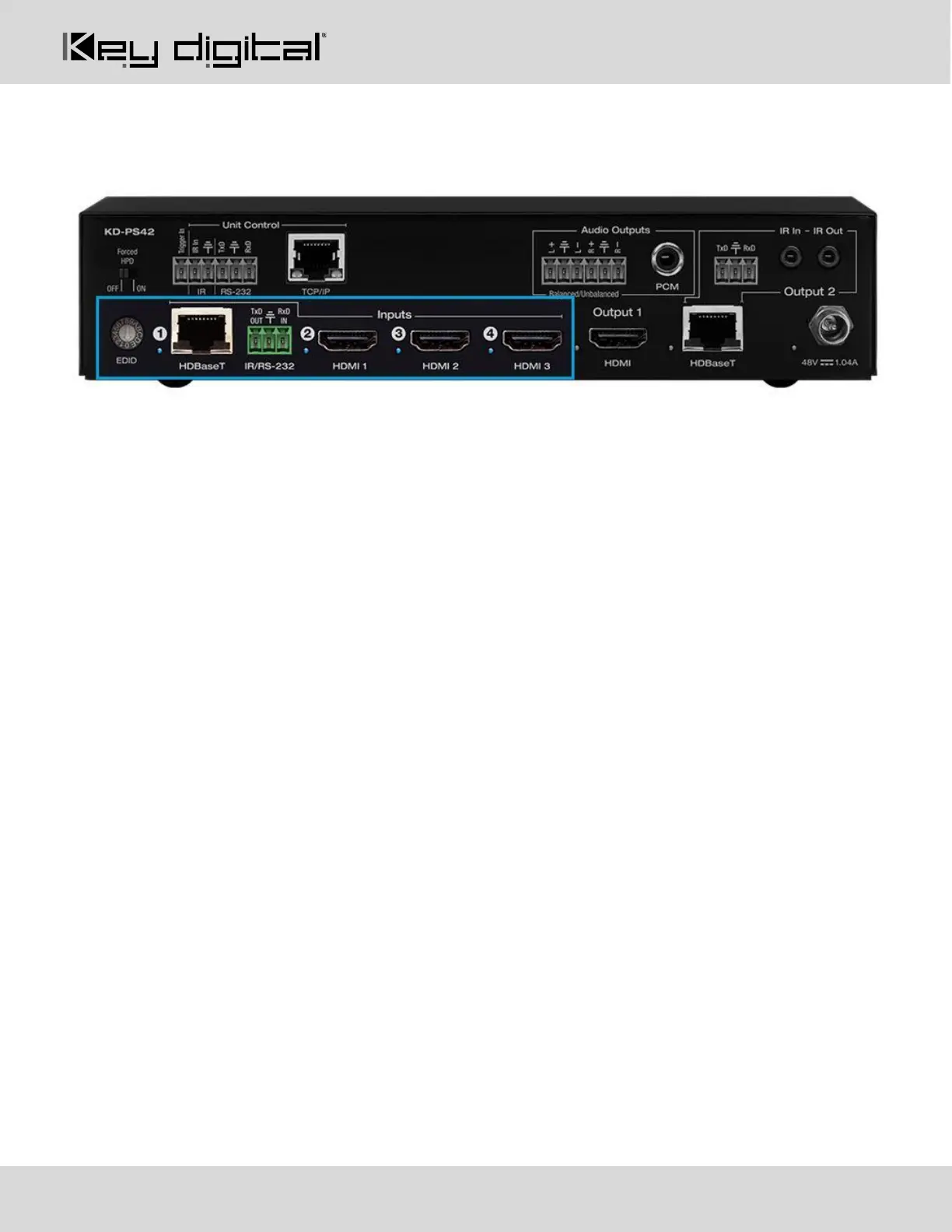

Inputs and EDID Handshaking Rotary
HDBaseT Port (Input 1): Using a CAT5e/6 cable, connect from a compatible KD Transmitter
• KD-X2x1WDTx – Wall plate transmitter with HDMI and Display Port inputs. Designed for installation in a US
dual-gang wall plate on wall, in a table or floor pocket.
• KD-X2x1WVTx – Wall plate transmitter with HDMI and VGA + L/R inputs. Designed for installation in a US
dual-gang wall plate on wall, in a table or floor pocket.
• 4K/UHD (18G): Up to 40m / 131 ft
• 1080p: Up to 70m / 230 ft
• Provides power over HDBaseT to connected transmitter
• Link light to the left of the port illuminates solid from healthy HDBaseT connectivity with Tx unit and
active incoming video signal.
• Does not support Dolby® Vision
HDMI (Input 2, 3 and 4): Using an HDMI cable, connect your HDMI sources.
• Supports up to UHD/4K @ 50/60 fps [4:4:4], 18Gbps
• Supports HDR10 and Dolby Vision
o Dolby Vision only available through HDMI inputs & outputs, not HDBaseT.
• Compliant with HDCP 2.2 and previous
• Supports lossless compressed audio formats including Dolby® TrueHD, Dolby® Digital Plus, Dolby
Atmos®, and DTS-HD Master Audio™
• Does not support CEC pass through from connected Rx unit / presentation switch
• Link light to the left of each port illuminates when there is an active HDMI signal passing through.
