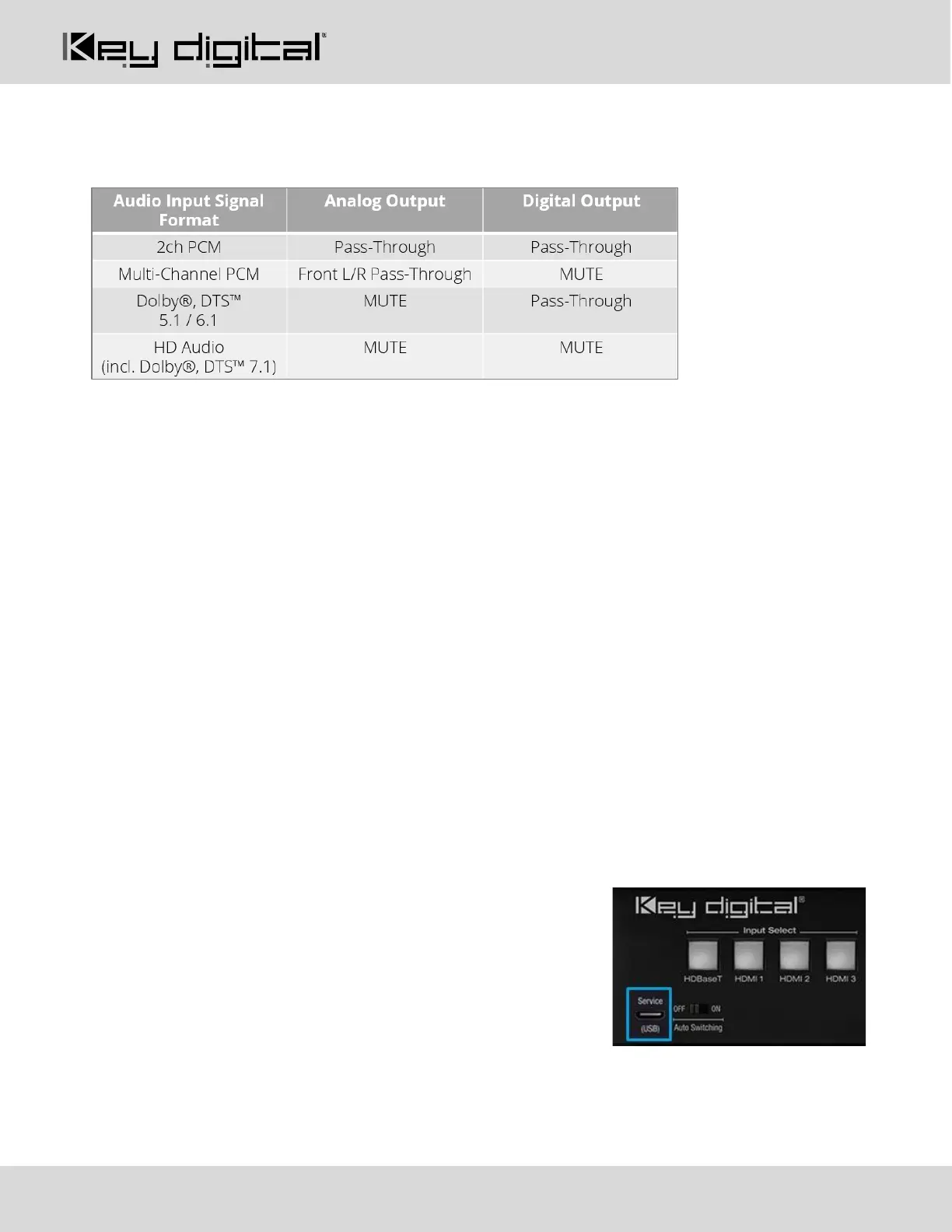

• Analog and digital de-embedded audio from the selected source
• There are no volume or tone control features
• There are no pre-amp features
Analog L/R Balance/Unbalanced
• 6-pin terminal block
• Drives audio signals up to 2 VRMS with a sampling rate of 192HHz
• Automatically mutes if audio formatting is not PCM 2ch
• Pin assignment:
o Left + is Pin 1; Left - is Pin 3; Left Ground is Pin 2
o Right + is Pin 4; Right - is Pin 6; Right Ground is Pin 5
PCM Digital
• RCA coaxial
• SPDIF IEC 60958 format
• Compatible with sampling rates up to 192KHz
• Supports multi-channel Dolby® surround formats up to 5.1 and DTV™ 6.1
• Automatically mutes if audio formatting is not PCM, Dolby®, or DTS™
Service USB Port
• Micro USB port
• Used for configuration and control from PC via KDMS Pro or
third-party control terminal
• Used for firmware updates (consult with Key Digital tech
support before updating firmware)
• Supports USB driver for Windows 10, 7, XP, Mac, Linux
• Will register as “Prolific USB-to-Serial Comm Port in Device
Manager
• Can be used as RS-232 control port. Baud rate is 57,600
unless adjusted otherwise
