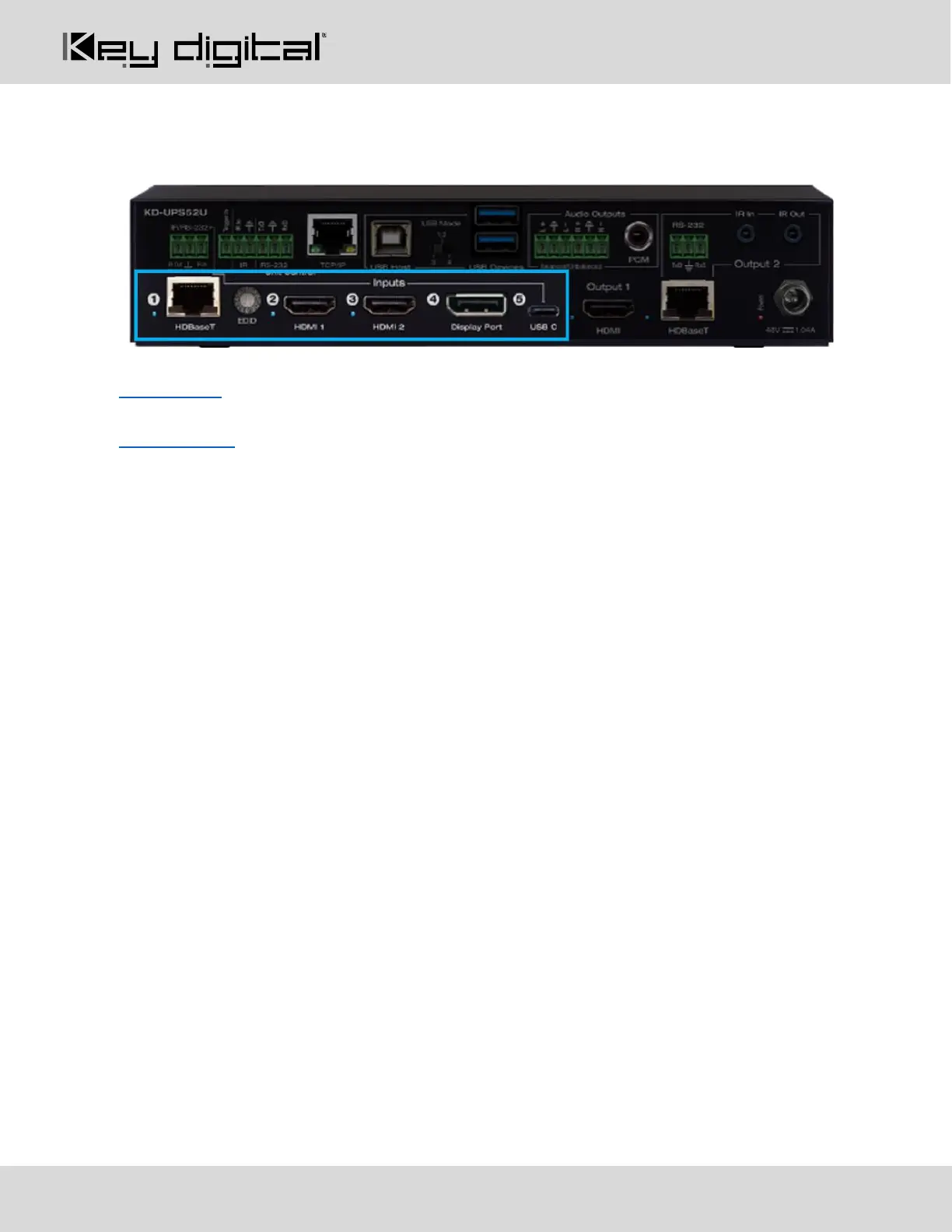

Connections, Buttons, and LEDs
Inputs and EDID Handshaking Rotary
HDBaseT (Input 1): Using a CAT5e/6 cable, connect from a compatible KD Transmitter.
• KD-PS22UTx – Black box transmitter with 2x HDMI inputs, and USB host and device ports. Designed for
under-table installation.
• KD-X4x1WUTx – Wall plate transmitter with 2x HDMI, 1x USB-C, and 1x DP input, USB host and device
ports, and CEC display control button pad. Designed for installation in a US triple-gang wall plate on
wall, in a table or floor pocket.
• KD-X3x1WUTx - Wall plate transmitter with 1x HDMI, 1x VGA + L/R, and 1x DP input, USB host and
device ports, and CEC display control button pad. Designed for installation in a US triple-gang wall plate
on wall, in a table or floor pocket.
• 4K/UHD (18G): Up to 100m / 328ft
• 1080p: Up to 150m / 492ft
• Provides power over HDBaseT to connected transmitter
• Link light to the left of the port illuminates solid from healthy HDBaseT connectivity with Tx unit and
active incoming video signal.
• Does not support Dolby® Vision
HDMI (Input 2 and 3): Using an HDMI cable, connect your HDMI sources.
• Supports up to UHD/4K @ 50/60 fps [4:4:4], 18Gbps
• Supports HDR10 and Dolby Vision
o Dolby Vision only available through HDMI inputs & outputs, not HDBaseT.
• Compliant with HDCP 2.2 and previous
• Supports lossless compressed audio formats including Dolby® TrueHD, Dolby® Digital Plus, Dolby
Atmos®, and DTS-HD Master Audio™
• Does not support CEC pass through from connected Rx unit / presentation switch
• Link light to the left of each port illuminates when there is an active HDMI signal passing through.
Display Port (Input 4): Using a Display Port cable, connect your source.
• Supports up to UHD/4K @ 50/60 fps [4:4:4], 18Gbps
• Supports HDR
• Supports Display Port version 1.3 and previous
• Compliant with HDCP 2.2 and previous
USB-C (Input 5): Using a USB-C cable, connect your source.
• Supports up to UHD/4K @ 50/60 fps [4:4:4], 18Gbps
To Next Page
