44

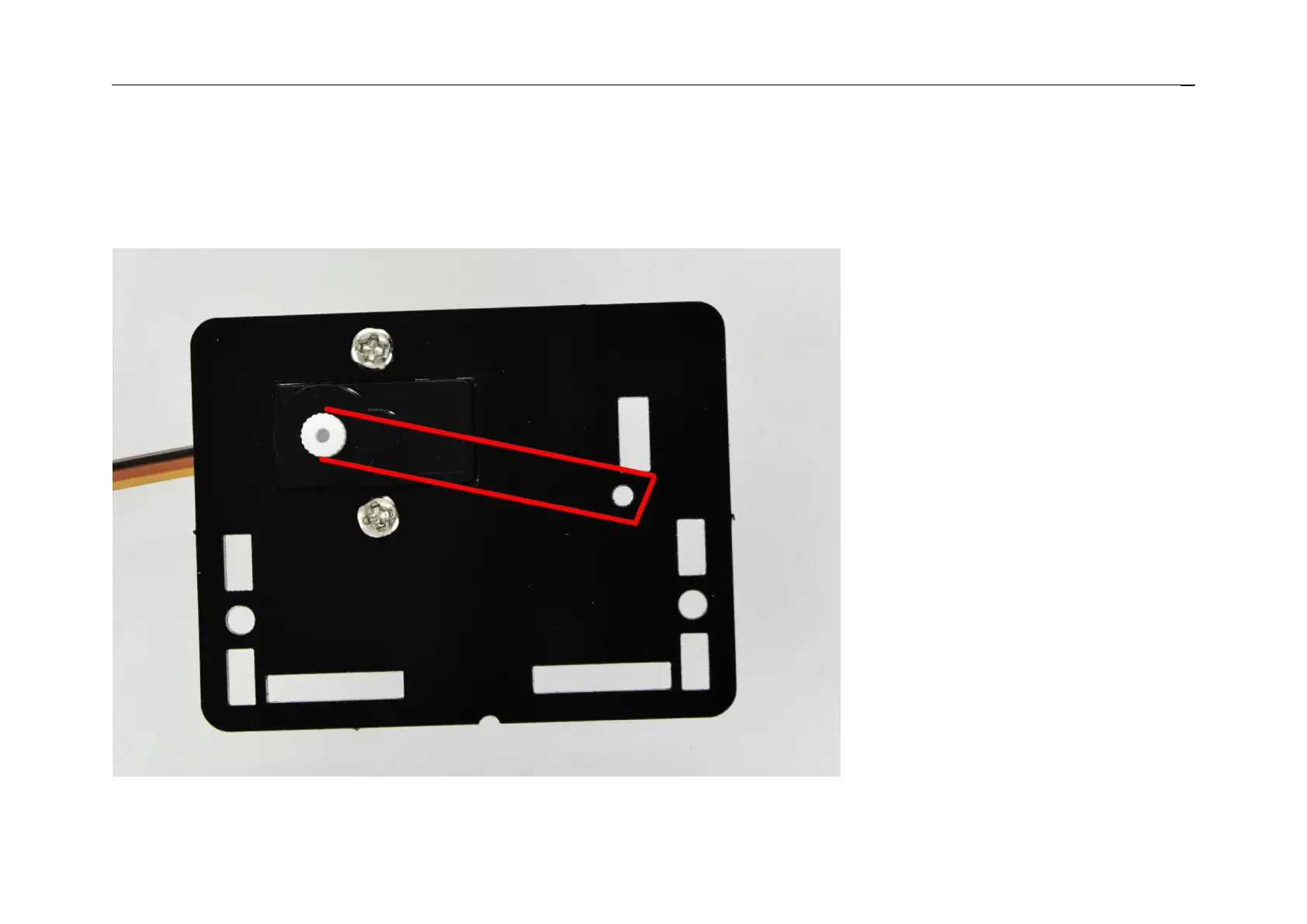

After that, screw the short acrylic plate joint and white servo mount⑦ to the Right servo motor using a
M2x8MM tapping screw and a M2x5MM tapping screw⑧.
