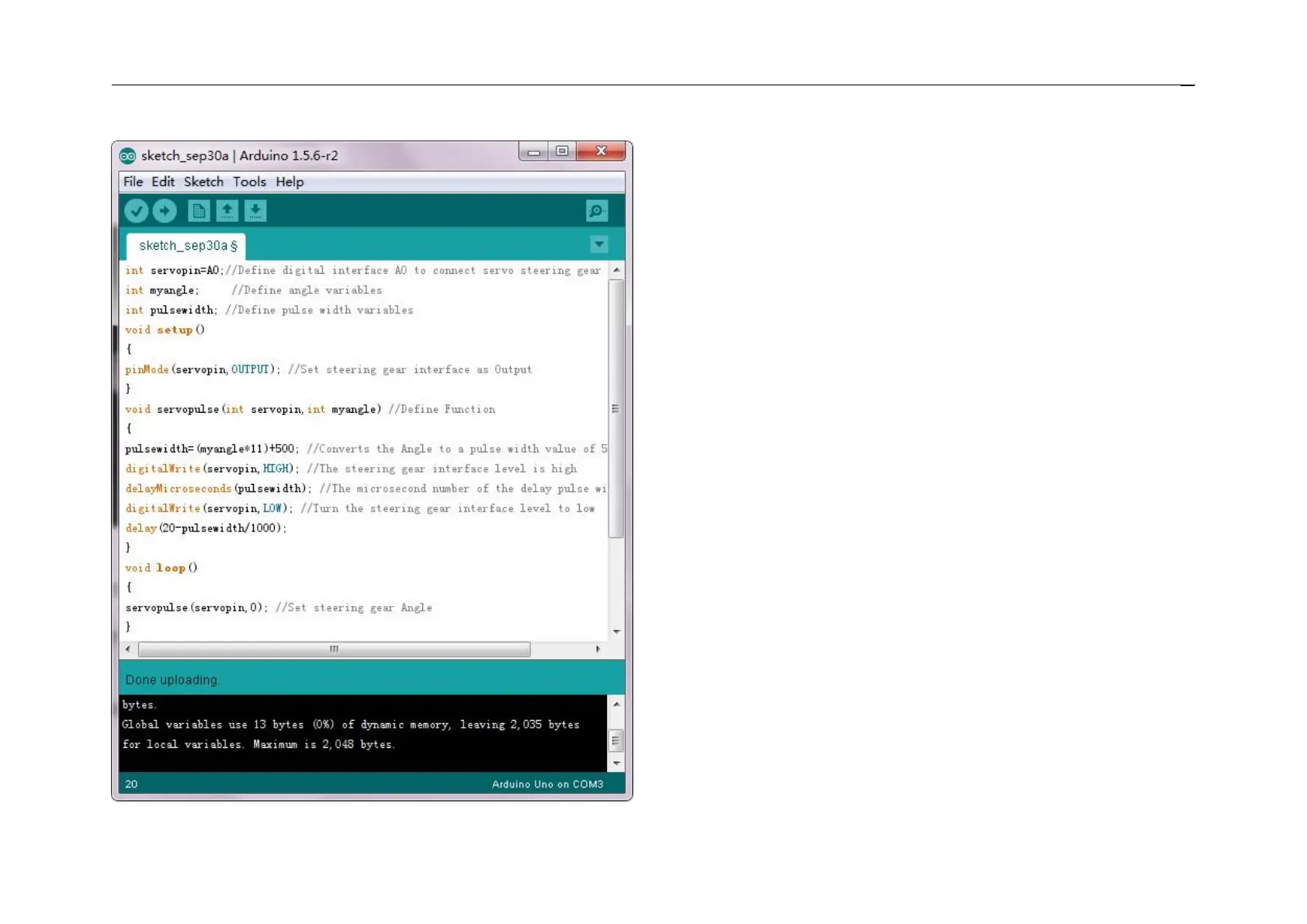

66
Note:
before
install
the
claw
servo
motor
,
shou
ld
set
the
servo
angle
to
0
degrees.
The
metho
d
is
the
same
a
s
80
°
servo
settings
mentioned
above.
Y
ou
just
nee
d
to
change
the
servopulse(servopin,80)
into
servopulse(servopin,0)
in
the
code.
