Keyscan Inc. Technical Guide (PC109x - 07.15)
24

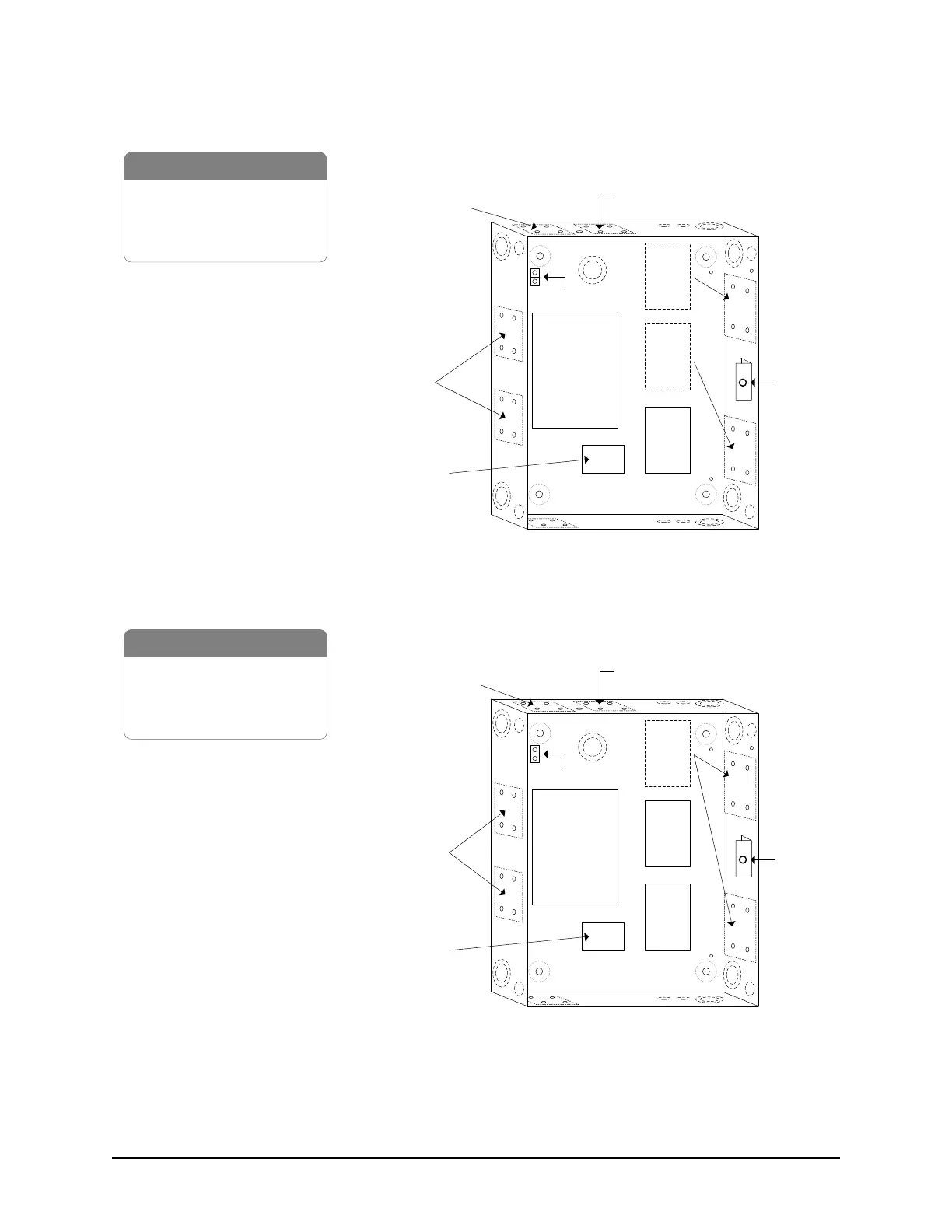

Figure 10 EC1500 with Board Mounting Positions
Figure 11 EC2500 with Board Mounting Positions
Front View
Cover not shown
Tamper
Switch
1 x EC1500B control board
1 x OCB-8
1 x DPS-15 power supply
1 x metal enclosure
EC1500B
Control
Board
OCB-8
Optional
OCB-8
Locations
Ground Lug
Optional
OCB-8
Locations
NETCOM
Optional
NETCOM*
Locations
PC109x
Parts
DPS-15
power supply
KI-00114E-09-12
* NETCOM - use terminal block
connections only, not 9-pin male
connector. (NETCOM refers to
NETCOM2 & NETCOM6)
CIM
or
NETCOM
Front View
Cover not shown
Tamper
Switch
1 x EC2500B control board
2 x OCB-8
1 x DPS-15 power supply
1 x metal enclosure
EC2500B
Control
Board
OCB-8
Optional
OCB-8
Locations
Ground Lug
OCB-8
NETCOM
PC109x
Parts
DPS-15
power supply
KI-00115E-09-12
Optional
NETCOM*
Locations
* NETCOM - use terminal block
connections only, not 9-pin male
connector. (NETCOM refers to
NETCOM2 & NETCOM6)
CIM
or
NETCOM
