Bank 1

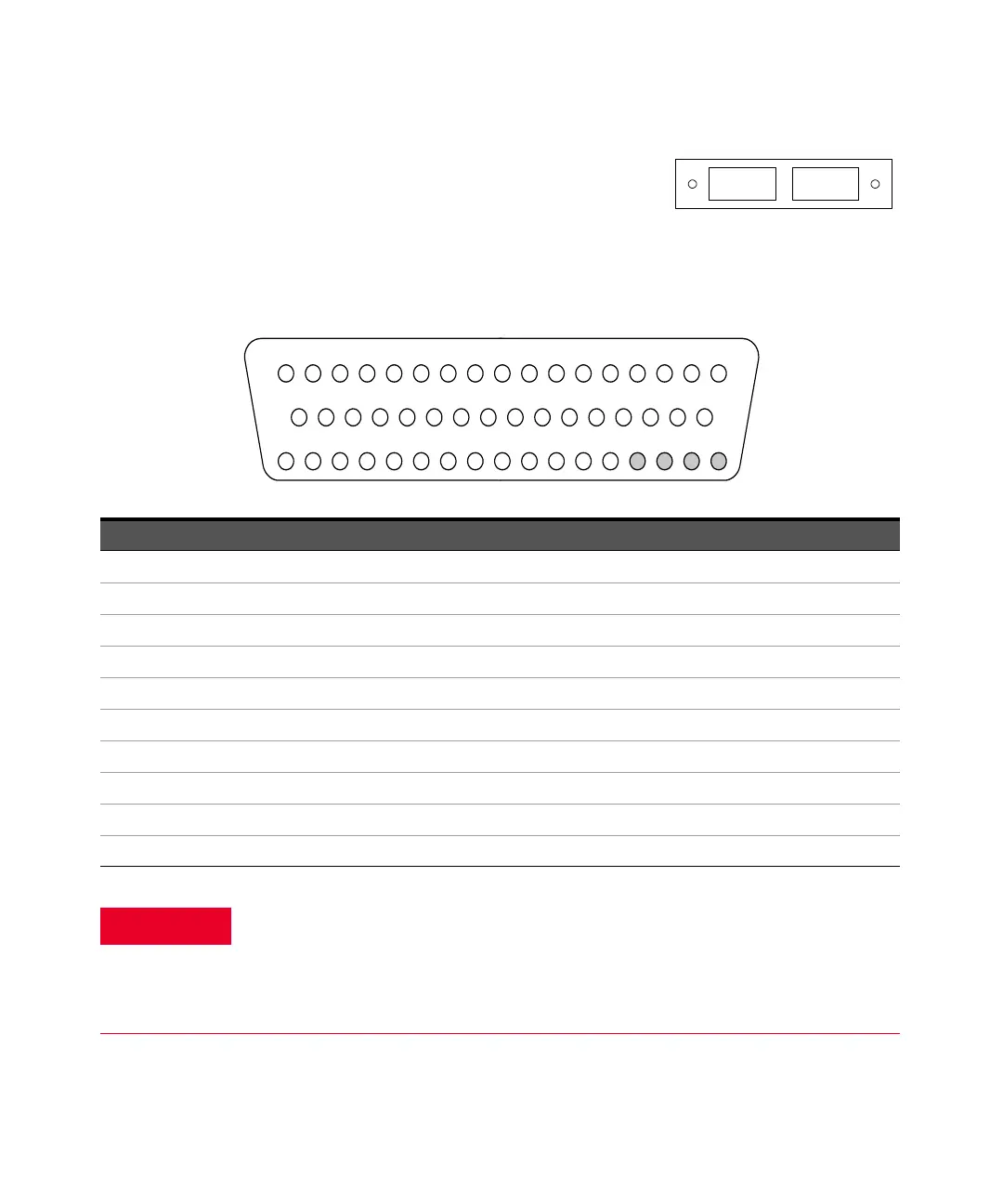

For orientation, the D-sub connector
end of the module is facing you.
Bank 1
Bank 2
17L
34
35
36 37
38
39 40
41
42
43 44 45
46
47 48 49
50
18
19 20
21 22
23
24
25 26
27 28
29 30 31 32
33
GND 6H 6L 16H 16L 12H 12L 8H 8L 18H 18L 10H 10L
NC NC NC NC
Reserved 11H 11L 7H 7L 17H 13H 13L 9H 9L 19H 19L 15H 15L Interlock 1
1 2 3 4 5 6 7 8 9 101112131415 16 17
Interlock11H 1L 2H 2L 3H 3L
COM
1H
COM
1L
4H 4L 14H 14L 5H 5L 20H 20L
50-Pin D-Sub
Male Connector
Description Pin Description Pin Description Pin Description Pin Description Pin
1H 1 6H 35 11H 19 16H 37 COM1 H 7
1L 2 6L 36 11L 20 16L 38 COM1 L 8
2H 3 7H 21 12H 39 17H 23 Interlock 1 17
2L 4 7L 22 12L 40 17L 24 Interlock 1 33
3H 5 8H 41 13H 25 18H 43 Reserved 18
3L 6 8L 42 13L 26 18L 44 GND 34
4H 9 9H 27 14H 11 19H 29 No Connect 47
4L 10 9L 28 14L 12 19L 30 No Connect 48
5H 13 10H 45 15H 31 20H 15 No Connect 49
5L 14 10L 46 15L 32 20L 16 No Connect 50
WARNING
As a safety feature, interlock 1 pins (17 and 33) on Bank 1 must be shorted to
enable the Bank 1 Analog Bus relays to close. The optional 34925T-001 (for
2-wire) terminal block shorts these pins for you. This feature protects
inadvertent routing of high voltages from the Analog Bus to the D-sub
connector of the module.
