4 Calibration Procedures
116 Keysight 34970A/34972A Service Guide
Tests 4 - 43:
Make the connections to the 34908A as shown in the diagram below. Connect
copper shorts between all channels as shown. Be sure to route your wiring for
proper strain relief and install the module cover. Install the 34908A in slot 200 of
the 34970A/34972A.

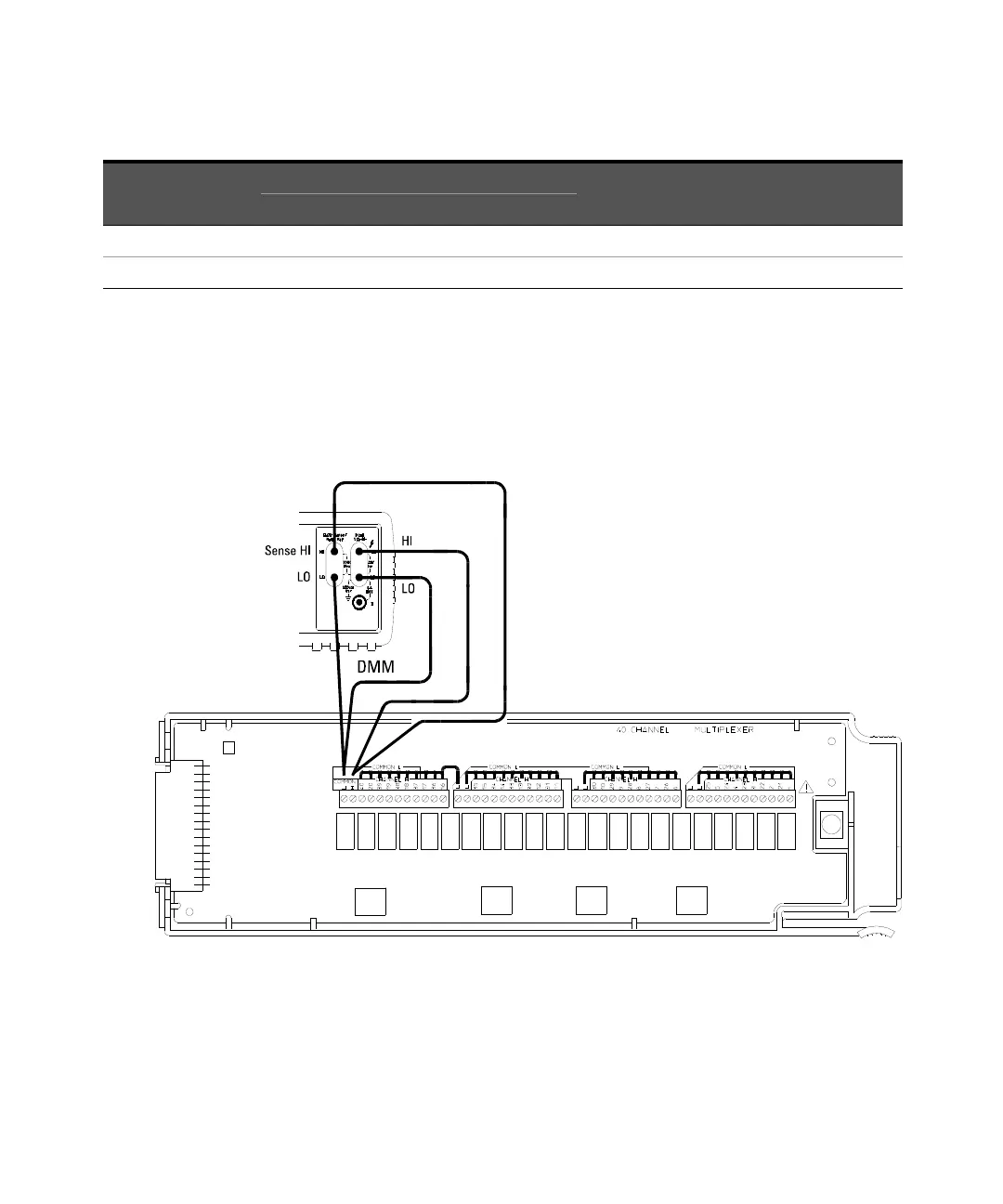

Connections for 34908A Verification Tests 4 through 43
Test #
Channel
Configured
External DMM Ohmmeter Connections
Measured Value
Test
Limit
Relay Measured
HI LO HI Sense LO Sense
2 Ch 01 H Com L Com H Com L Com ________Ohms — —
3 Subtract (Test 2 - Test 1) ________Ohms 2.00 W K421
To Next Page
