1 Getting Started

38 E364xA User’s and Service Guide

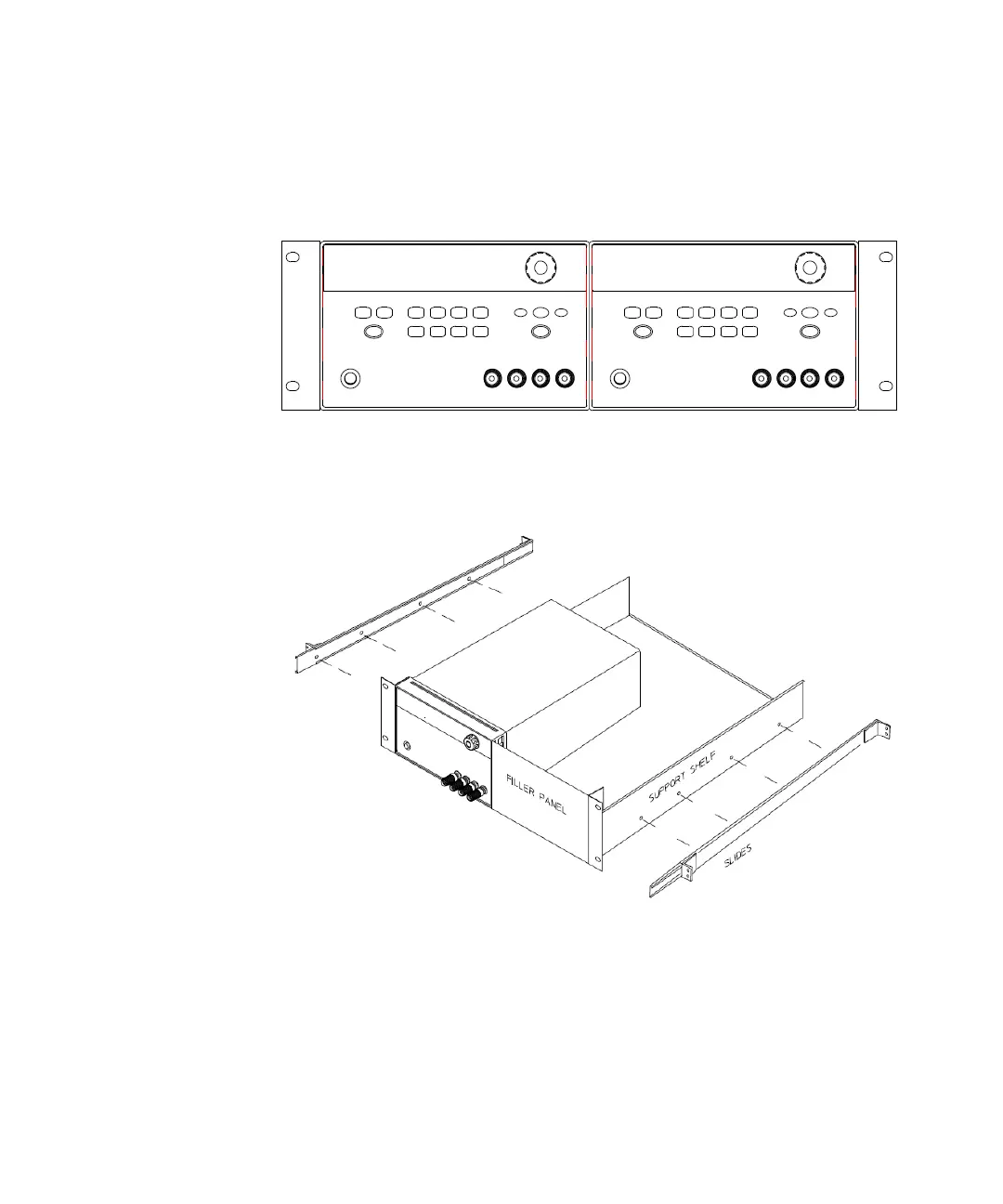

4 To rack-mount two instruments side- by- side, order the lock- link kit

(5061-9694) and the rack-mount kit (5063- 9214). Be sure to use the support

rails inside the rack cabinet.

5 To install one or two instruments in a sliding support shelf, order the support

shelf (5063-9256) and the slide kit (1494-0015).
