Keysight FieldFox Handheld Analyzers Service Guide 119
Repair and Replacement Procedures
Removing and Replacing the Case Group Parts
Replacing the Battery Cable
1. Separate the front and rear cases. See “Separating the Front and Rear
Cases” on page 115.
2. Refer to Figure 7-9. Note the orientation of the cable for installation of the
new cable, then, using a small flat-blade screwdriver to move the cable
connector, release the retention clips on the cable connector and remove
the cable from the rear case.

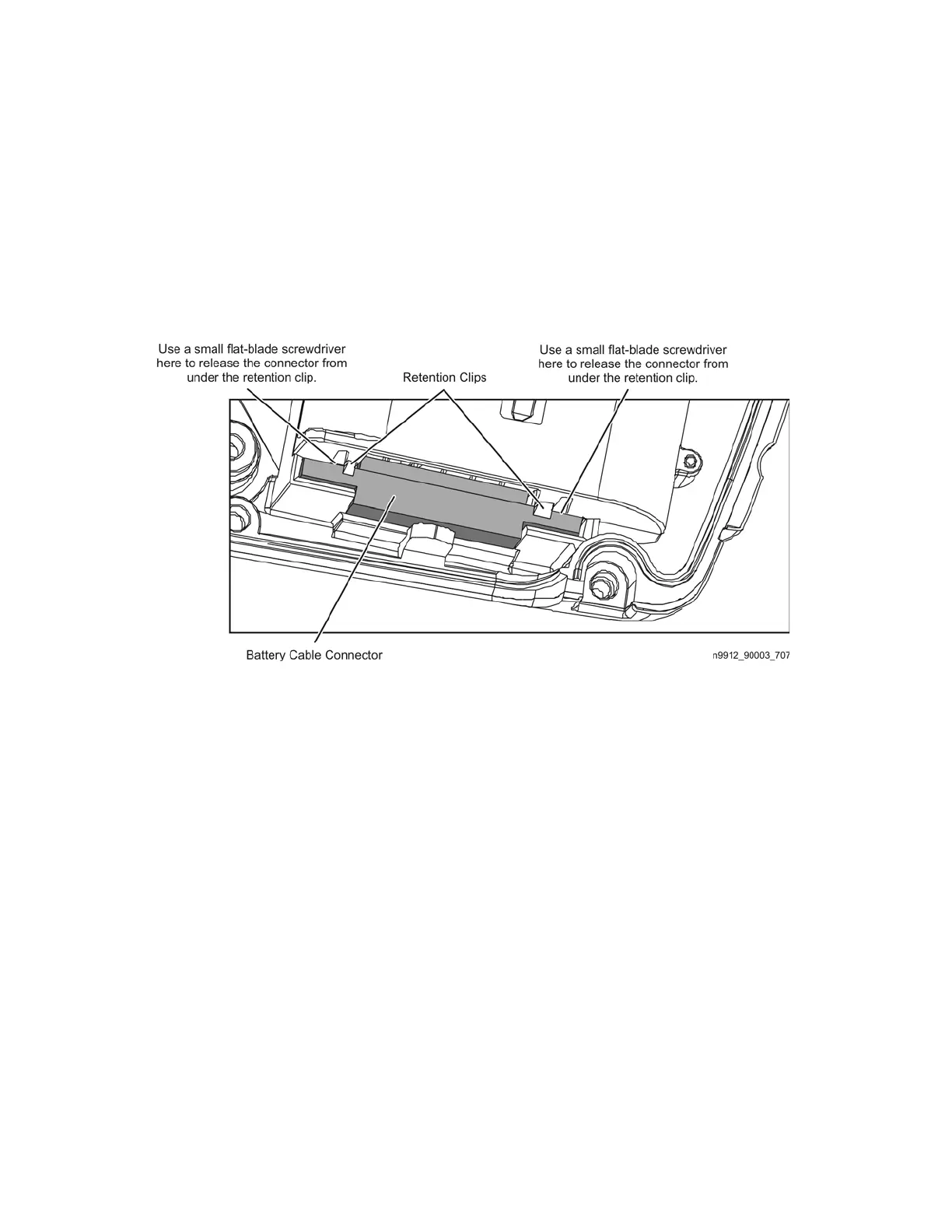

Figure 7-9 Replacing the Battery Cable
3. When installing the new battery cable, make sure that the connector
snaps into place.
4. Reinstall the rear case onto the front case. See Combining the Front and
Rear Cases.
Replacing the Rear Case
1. Separate the front and rear cases. See Separating the Front and Rear
Cases.
2. Carefully remove the serial number label and the Windows CE label from
the back of the old rear case and apply the labels to the new rear case.
3. Remove the kickstand assembly from the old rear case and install it on the
new rear case. See Replacing the Kickstand, Hinge Cover, and Hinge.
4. Remove the battery cable from the old case and install it in the new case.
See Replacing the Battery Cable.
5. Install the new rear case onto the front case. See Combining the Front and
Rear Cases.
