i3070 4-mod Inline System (E9986E)
Replacing the Power Supply 19

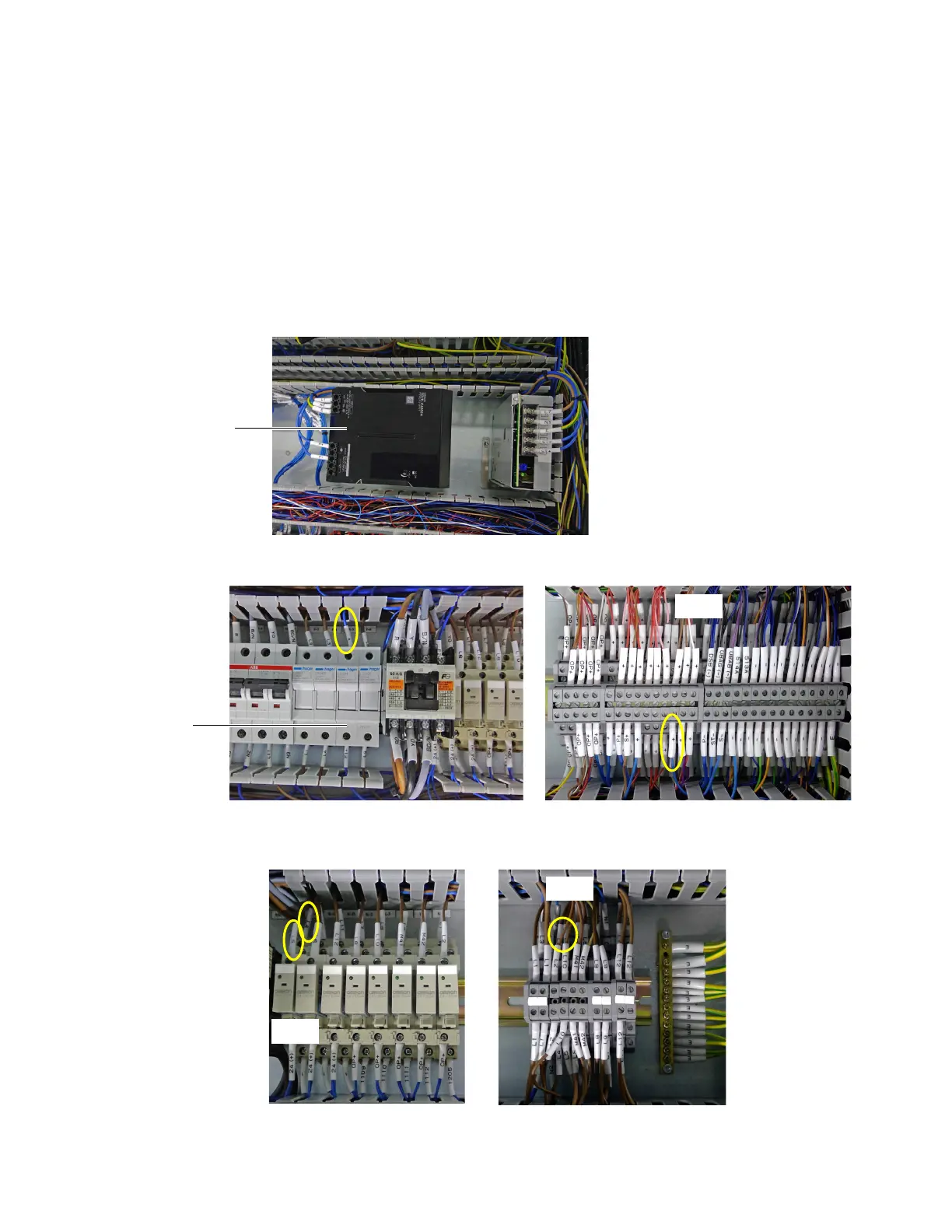

8 Cables labeled L1, N2, E, P+, and P- (previously connected to PS1) are to be
connected to the Omron power supply. The terminal point connections remain
the same.
• If using the existing cables, the connector heads have to be replaced with
ferrule heads to connect to the Omron power supply.
• If the existing cables are not long enough, replace them with the new cables
that have the same labels. Be sure to connect the new cables to the same
locations as the old cables.
9 Connect a new cable labeled + from F-5 to TB-3.
10 Remove the cables labeled L4 and L5 which are connected between K-B and
TB-1.
Omron 20 A AC/DC
power supply
To Next Page
