Keysight Technologies i3070 Series 5i - i3070 Lean Inline System Power Supply Replacement

10 Replacing the Power Supply
i3070 Lean Inline System (E9988EL)
i3070 Lean Inline System (E9988EL)
1 Remove the button screws securing the system’s top cover and remove the top
cover.

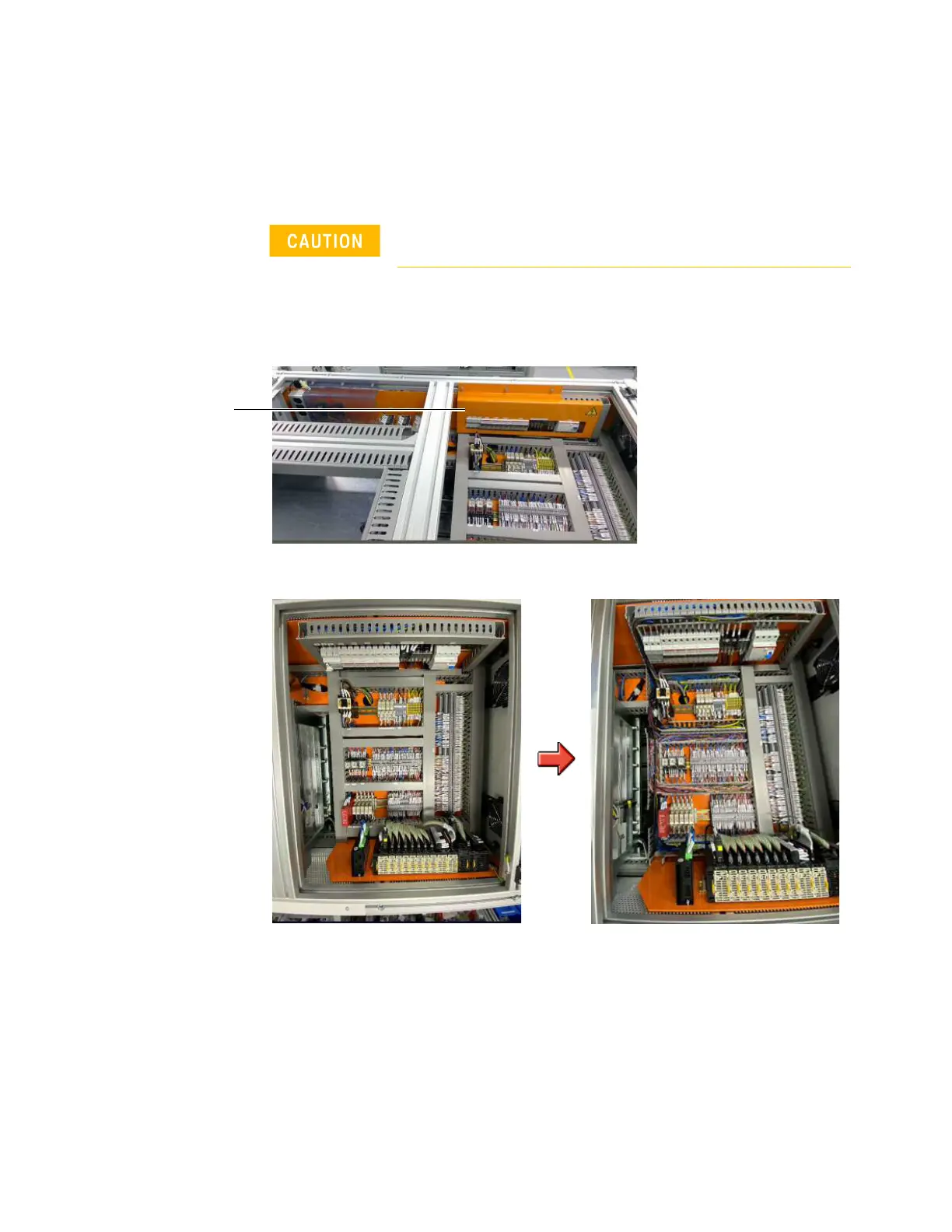

2 Remove the cap screws to remove the cover to the electrical panel.
3 Remove the trunking covers to access the cables.
Turn off the main switch before beginning any replacement
work.
electrical panel
