i3070 Inline System (E9988E)
Replacing the Power Supply 9
Installing the Cosel 6.4 A AC/DC power supply
If installing the Cosel 6.4 A AC/DC power supply, follow step 14 through step 17.
14 Install the bracket and mount the new Cosel 6.4 A AC/DC power supply.
15 Connect the cables labeled ST+, ST-, E, N1, L7 (formerly from PS3) to the
Cosel power supply. Tighten the screws to secure the cables and close the
protective cover.
Completing the installation
16 Make sure all the cables are routed properly in the trunking, then close all the
trunking covers.
17 Ensure all connections are correct before securing the system’s top cover.

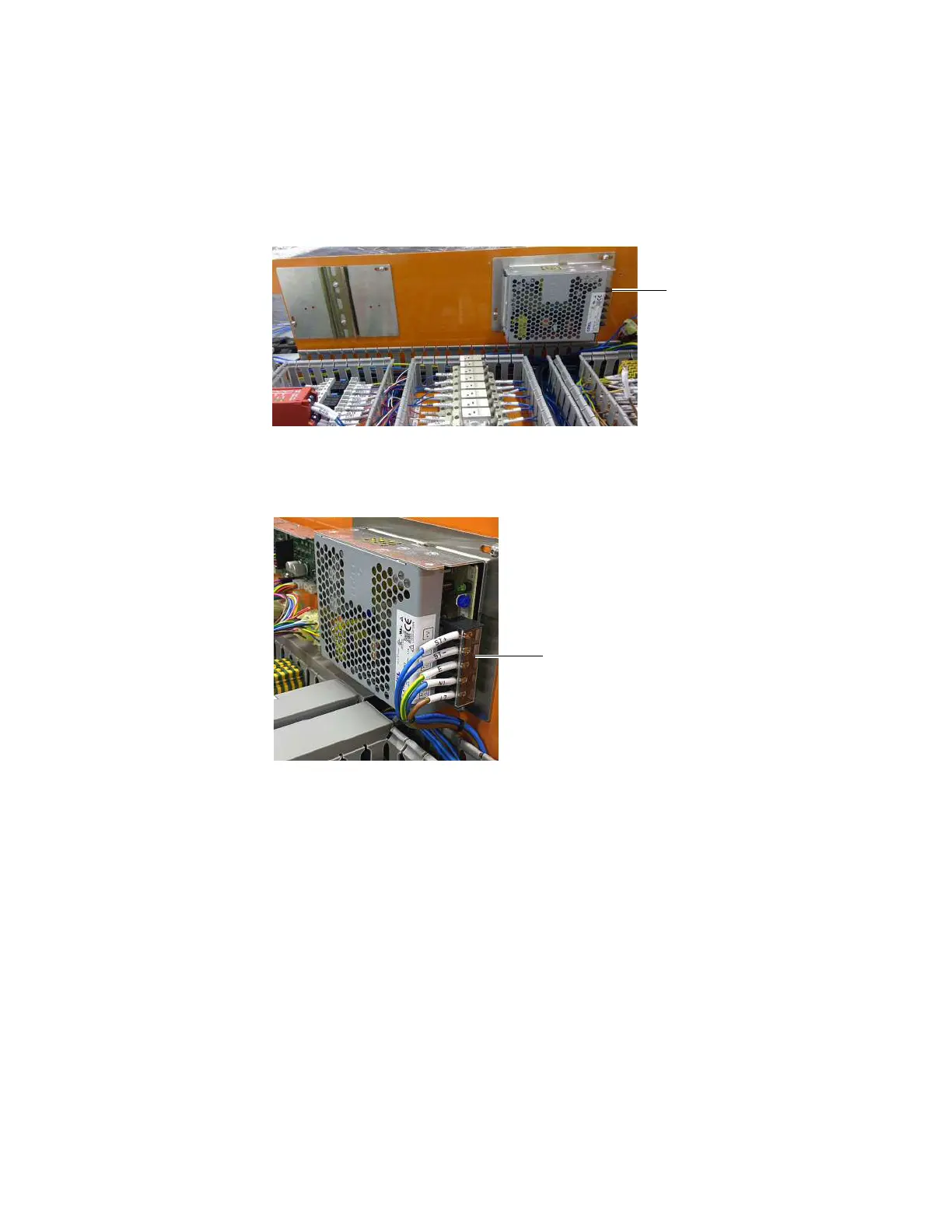

Cosel 6.4 A AC/DC power
supply with bracket
