Getting Started 2
Keysight Infiniium MXR-Series Real-Time Oscilloscopes User's Guide 43
• When Triggered is selected, the oscilloscope must find the trigger before
saving and displaying captured data.
• When Auto is selected, if a trigger does not occur within a certain amount of
time, an acquisition is automatically saved and displayed. In Auto trigger
mode, you are able to see your signals while setting up the desired trigger.
Use the Trigger dialog box to select any of the modes of triggering, the parameters
and conditions for each trigger mode, and advanced configuration items.
You can also mouse over the Trigger Level field and use the resulting controls to
set a particular trigger level when the oscilloscope is set for edge trigger on a
particular channel. You can drag the trigger reference indicator at the left side of
the display, or drag the trigger line itself, which appears when you click or touch
the grid.
Waveform Generator
The built-in license-enabled waveform generator can output sine, square, ramp,
pulse, DC, noise, sine cardinal, exponential rise, exponential fall, cardiac, Gaussian
pulse, PRBS, and demo waveforms on the GEN OUT output.
Noise can be added to all waveform types except: noise and demo.
AM, FM, or FSK modulation can be performed on all waveform types except:
square, pulse, DC, noise, Gaussian pulse, and demo.
The [Wave Gen] key enables or disables the waveform output on GEN OUT.

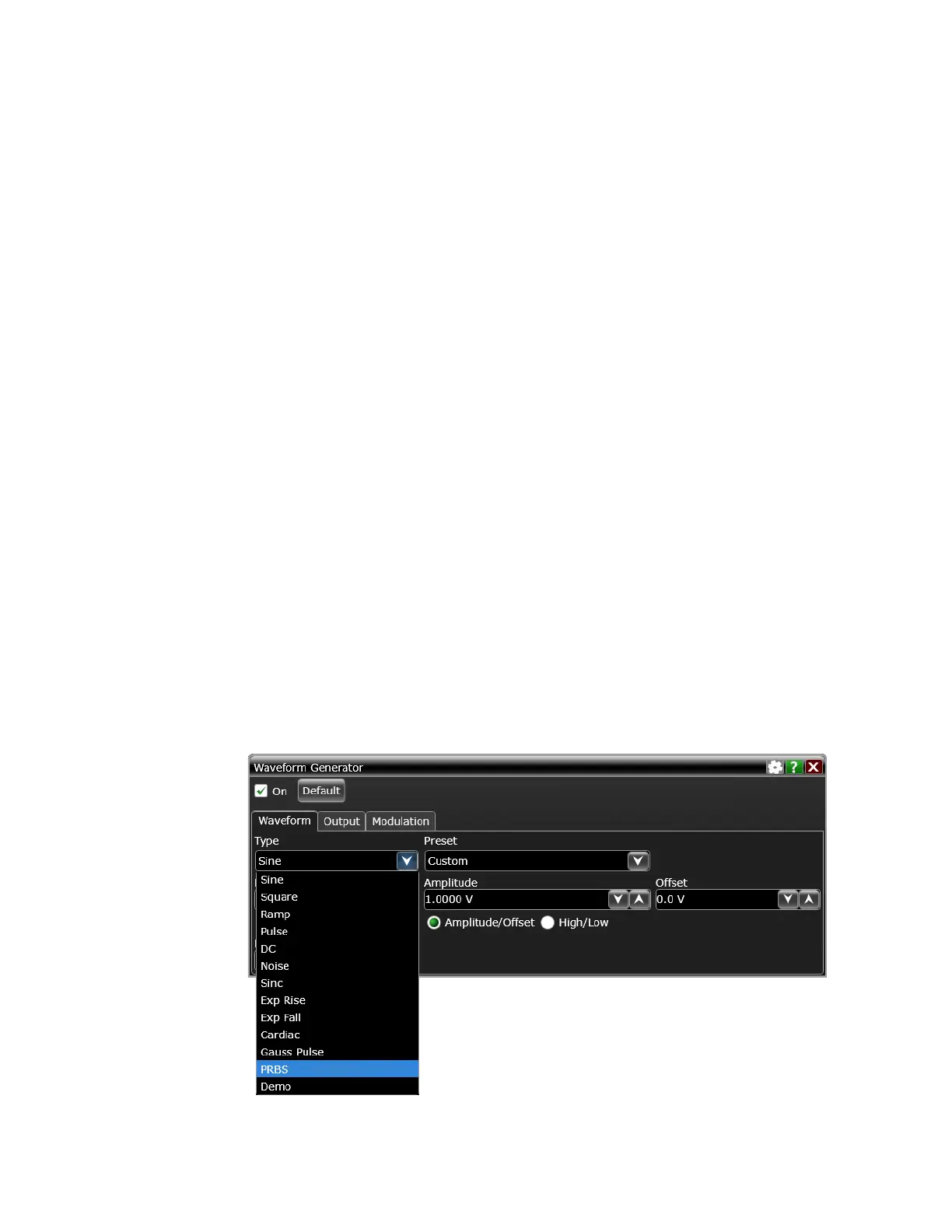

To select the waveform type and its parameters in the graphical user interface,
choose Setup > Waveform Generator... to open the Waveform Generator dialog box.
