STEP 4. Install the Network Analyzer Modules
STEP 4. Install the Network Analyzer Modules
IMPORTANT Please review all safety information located in Chapter 3 before proceeding with
installing and using the network analyzer module.
NOTE These modules can be used in a chassis with a PXIe, or PXI-H chassis slots.
Recommended Best Practices to Ensure Proper and Safe Module Operating
Conditions
• Ensure proper chassis air flow is maintained.
• The use of a Keysight M9018A chassis is recommended for optimum
temperature control. If a different chassis is used, make sure it provides
thermal protection if fans become inoperable or forced air cooling is
obstructed.
— If using the Keysight M9018A PCIe Cable Interface, download the
Keysight Multiple PXIe and AXIe Chassis System Configuration Tool.
Save the file to your local hard drive; do not try to open the file from the
Internet location.
• Use slot blockers and EMC filler panels in empty module slots to ensure
proper operating temperatures. Keysight chassis and slot blockers optimize
module temperature performance and reliability of test.
• Set chassis fans to high or auto. Do not disable fans.
• Position chassis to allow plenty of space around chassis air intake and fan
exhaust.
• At ambient temperatures above 45° C (113° F) set the chassis fan to high.

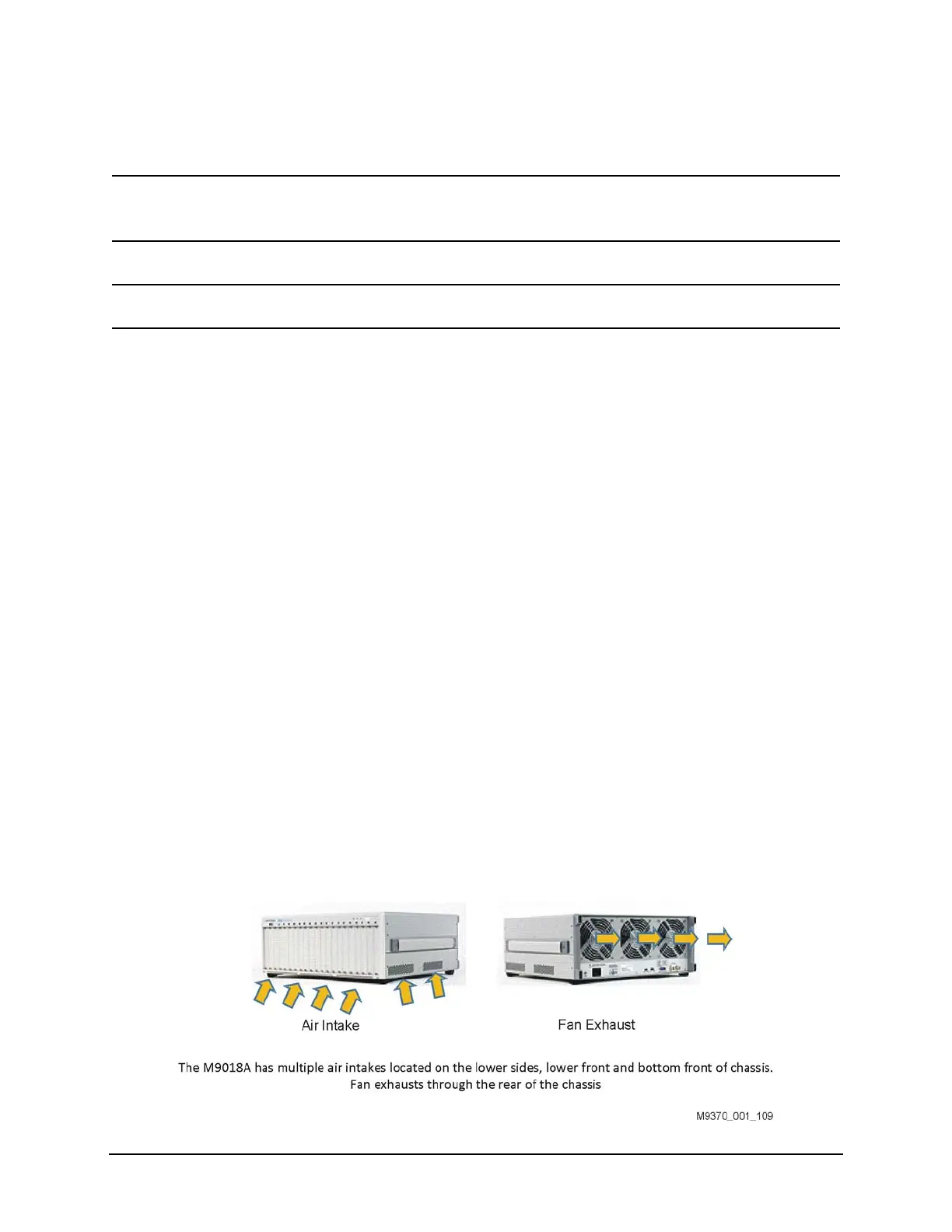

Figure 1-2 M937xA chassis air flow
