Programming the Status Register System
Overview

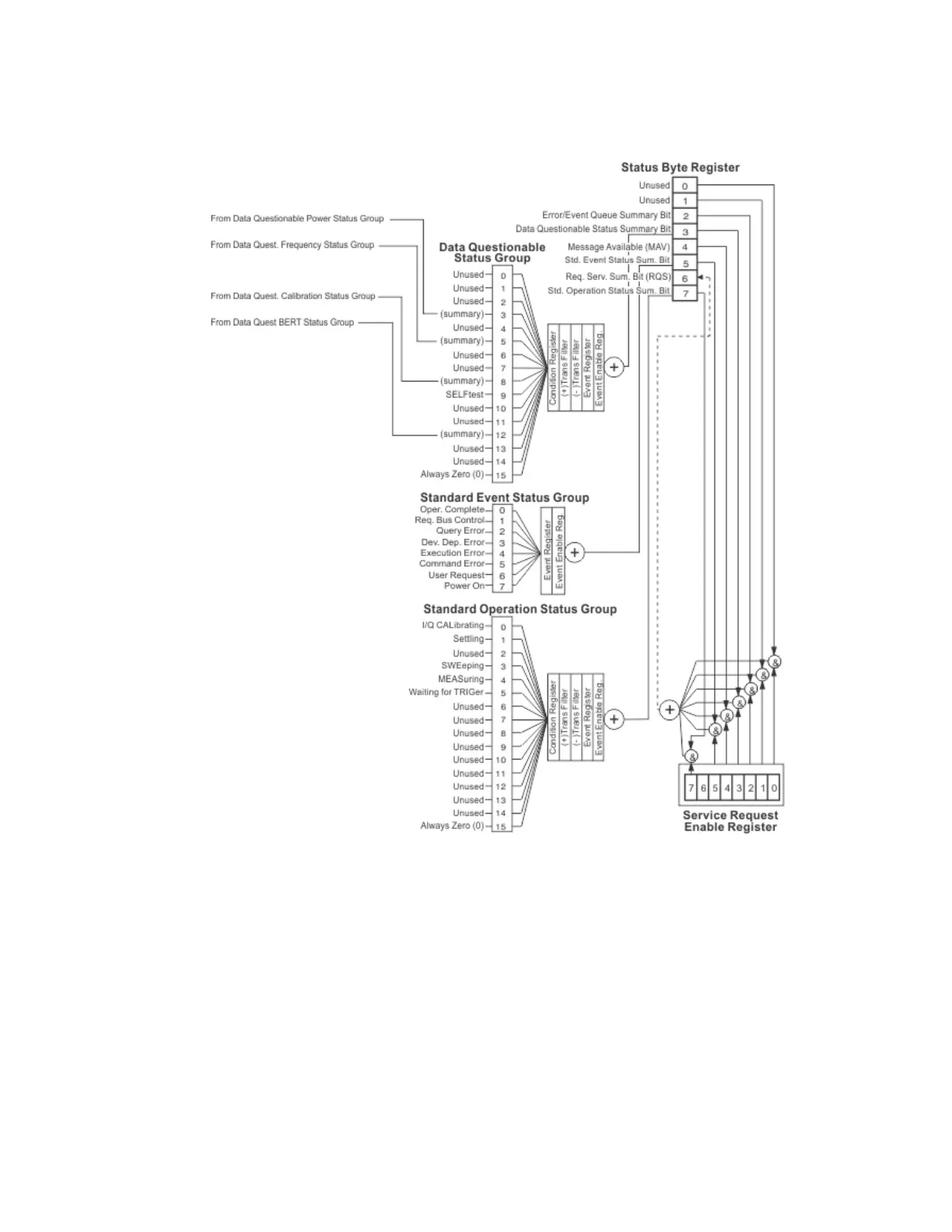

Figure 4-2 Overall Status Byte Register System (2 of 2)
