16 Installation Note N9000-90039
Option T03 and T06, Tracking Generator Upgrade Kit

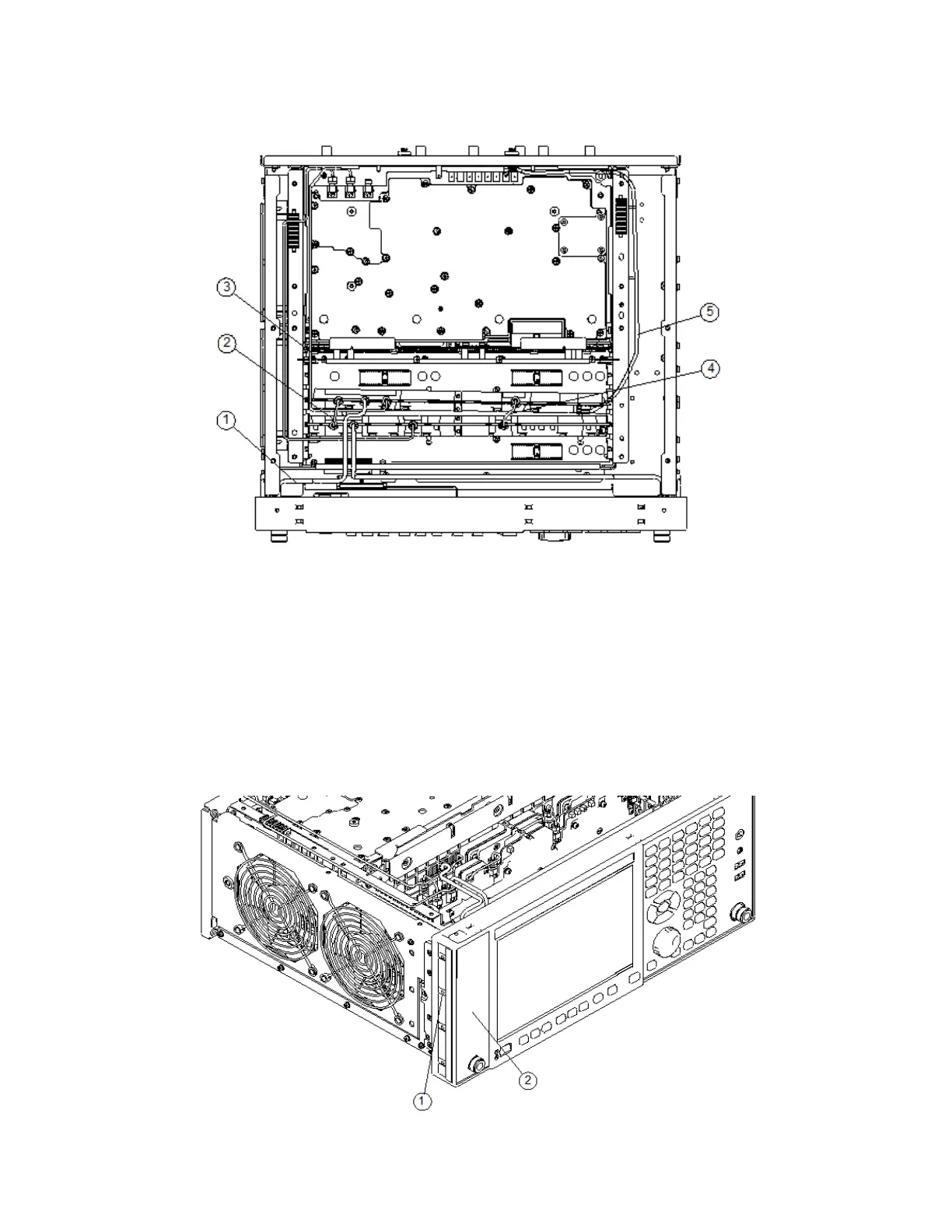

Figure 10 Install the RF Semi-rigid Cable
4. Locate the cable assemblies N9000-20104, N9000-20105, N9000-20106, and N9000-20107
in the retrofit kit.
5. Refer to Figure 10, install N9000-20105 (2), N9000-20106 (3), N9000-20104 (4), and
N9000-20107 (5) onto the corresponding instrument assemblies.
6. Re-install the front frame assembly, top brace, reference bracket and instrument outer case.
Avoid pinching cables when installing the top brace.
7. Locate the overlay in the retrofit kit. Refer to Figure 11, attach the overlay (2) to the front frame
assembly (1).
Figure 11 Install the RF Semi-rigid Cable
