Installation Note N9000-90039 15
Option T03 and T06, Tracking Generator Upgrade Kit
Install the RF Input Connector Assembly
1. Locate the tracking generator assembly in the unit.
2. Refer to Figure 8 to install the RF input connector assembly (1) into the instrument chassis.
3. Tighten the screws (3) with 9 inch-pounds.
4. Install the EMI O-ring (2) Shielding onto the RF input connector.

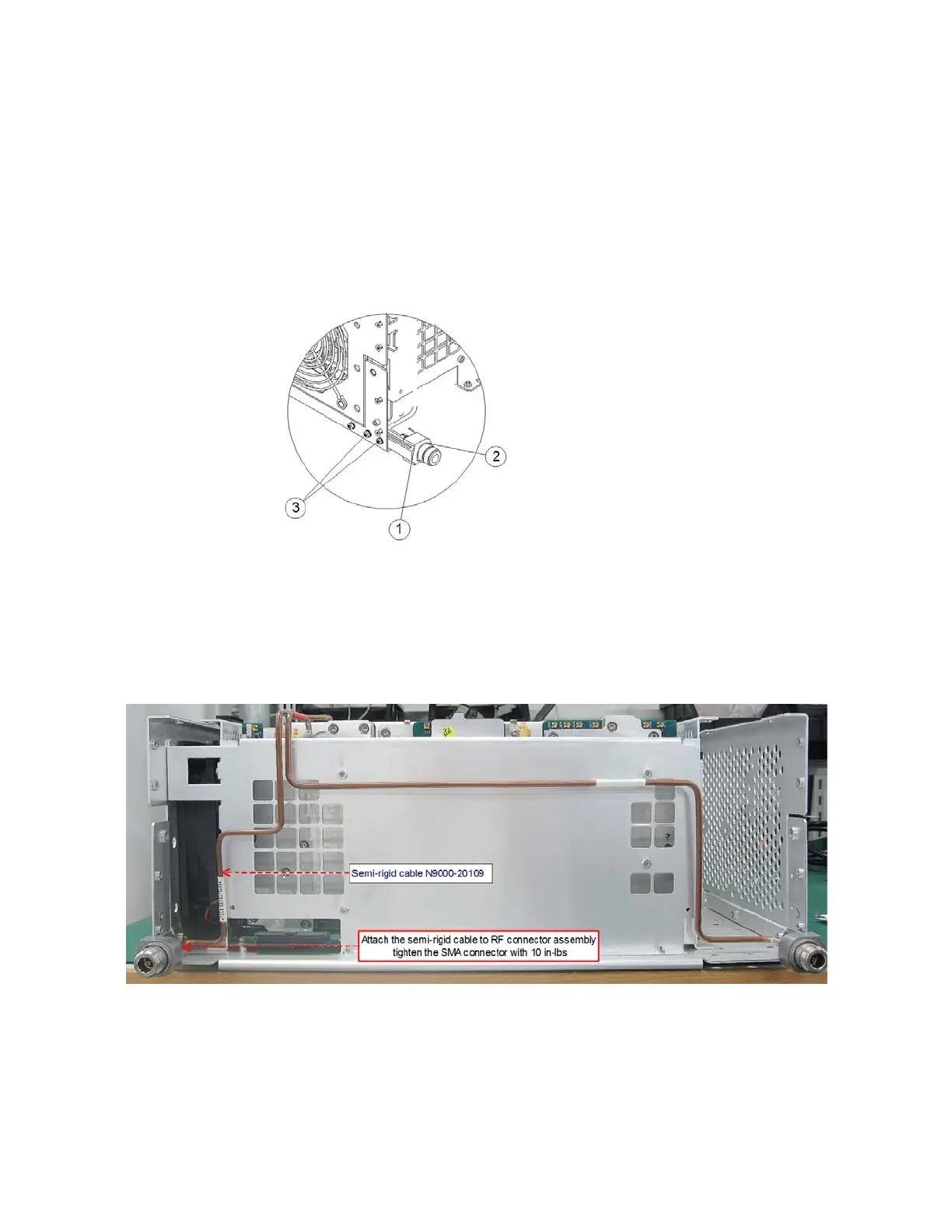

Figure 8 Tracking Generator Assembly Installation
Install the Cable Assembly
1. Locate the cable assembly(N9000-20109) in the retrofit kit.
2. Refer to Figure 9, attach the semi-rigid cable to RF input connector assembly and tighten the
SMA connector with 10 in-lbs.
Figure 9 Install the RF Semi-rigid Cable
3. Refer to Figure 10, connect the other end of the cable (1) to tracking generator assembly.
Tighten the SMA connector with 10 in-lbs.
