14 Installation Note N9000-90039
Option T03 and T06, Tracking Generator Upgrade Kit
Tracking Generator Installation
Please follow the procedures below to install the tracking generator in N9000B unit.
Install the Tracking Generator Assembly
OpLocate the tracking generator assembly in the kit.
2. Refer to Figure 7 to install the assembly (3) into slot 4 in the chassis and press down to plug it
into the motherboard.

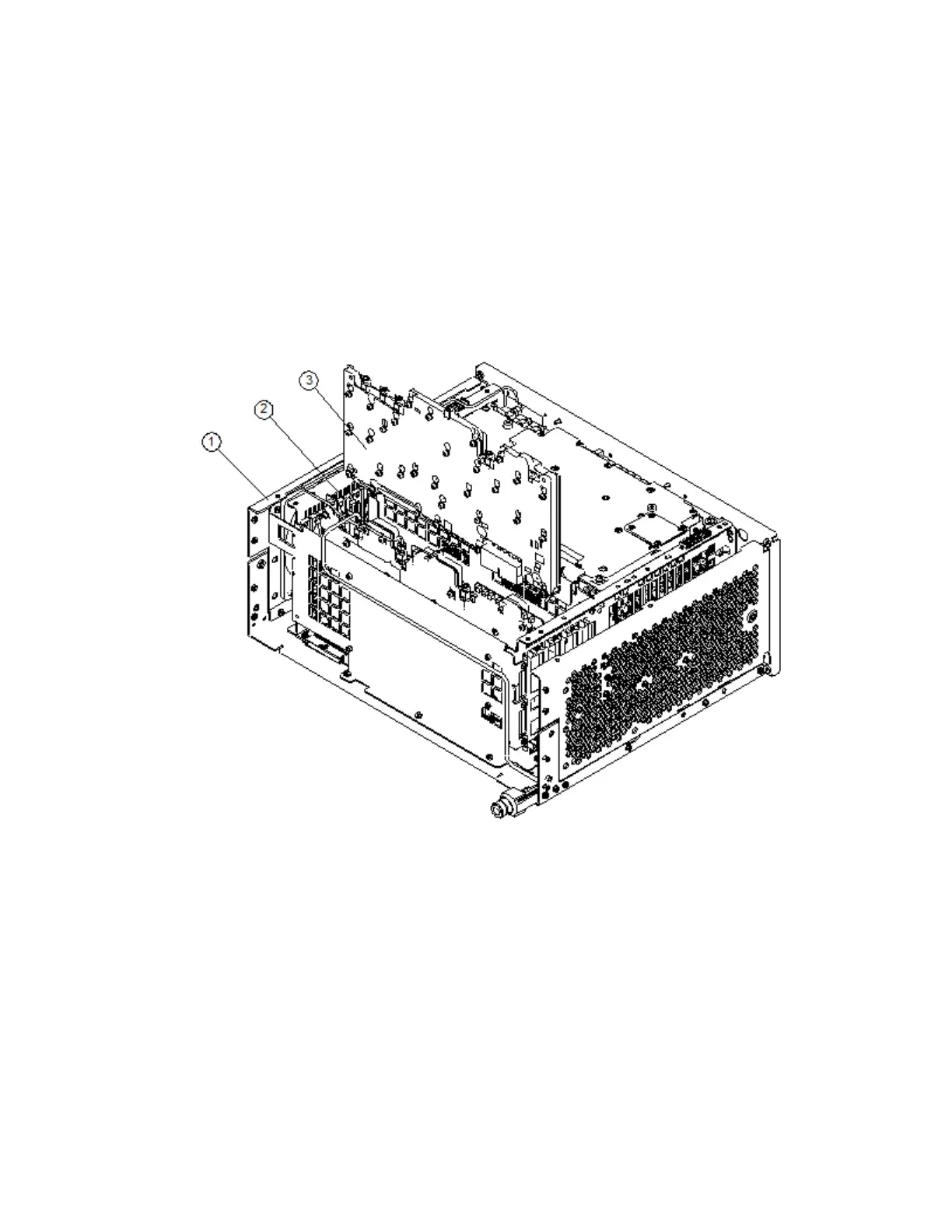

Figure 7 Tracking Generator Assembly Installation
