Keysight Technologies N9010B-526 Installation Note

16 Installation Note N9030-90077
Option BBA, Analog Baseband I/Q Inputs Upgrade Kit
4. Refer to Figure 9. Remove cable W8 at (2) by unscrewing cable and pulling cable free of
connector.
5. Remove cable W52 (1) between top switch port 4 and Low Band Switch Assembly connector
that is closest to the inner chassis.

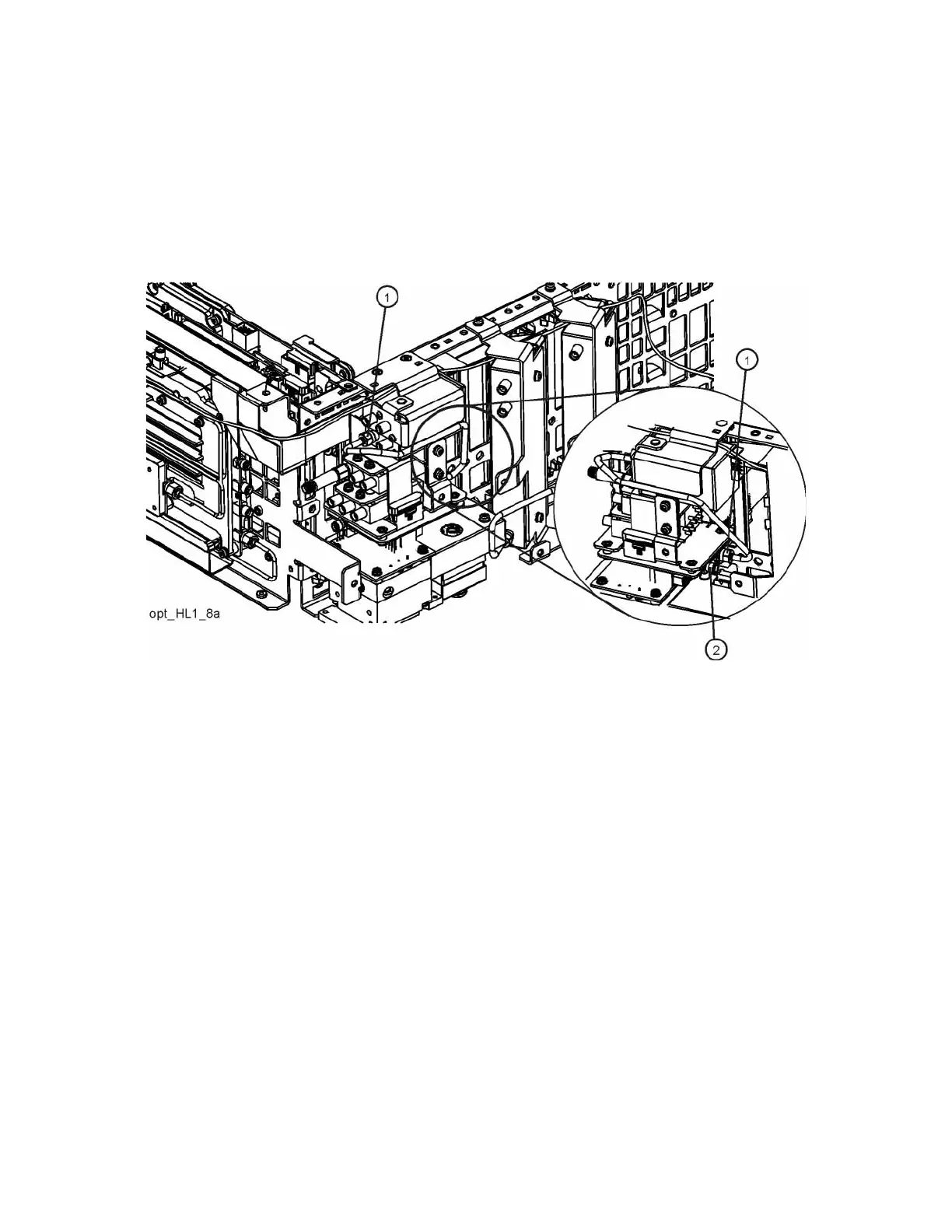

Figure 9 W52 Cable Removal
