Keysight Technologies N9010B-526 Installation Note

Installation Note N9030-90077 17
Option BBA, Analog Baseband I/Q Inputs Upgrade Kit

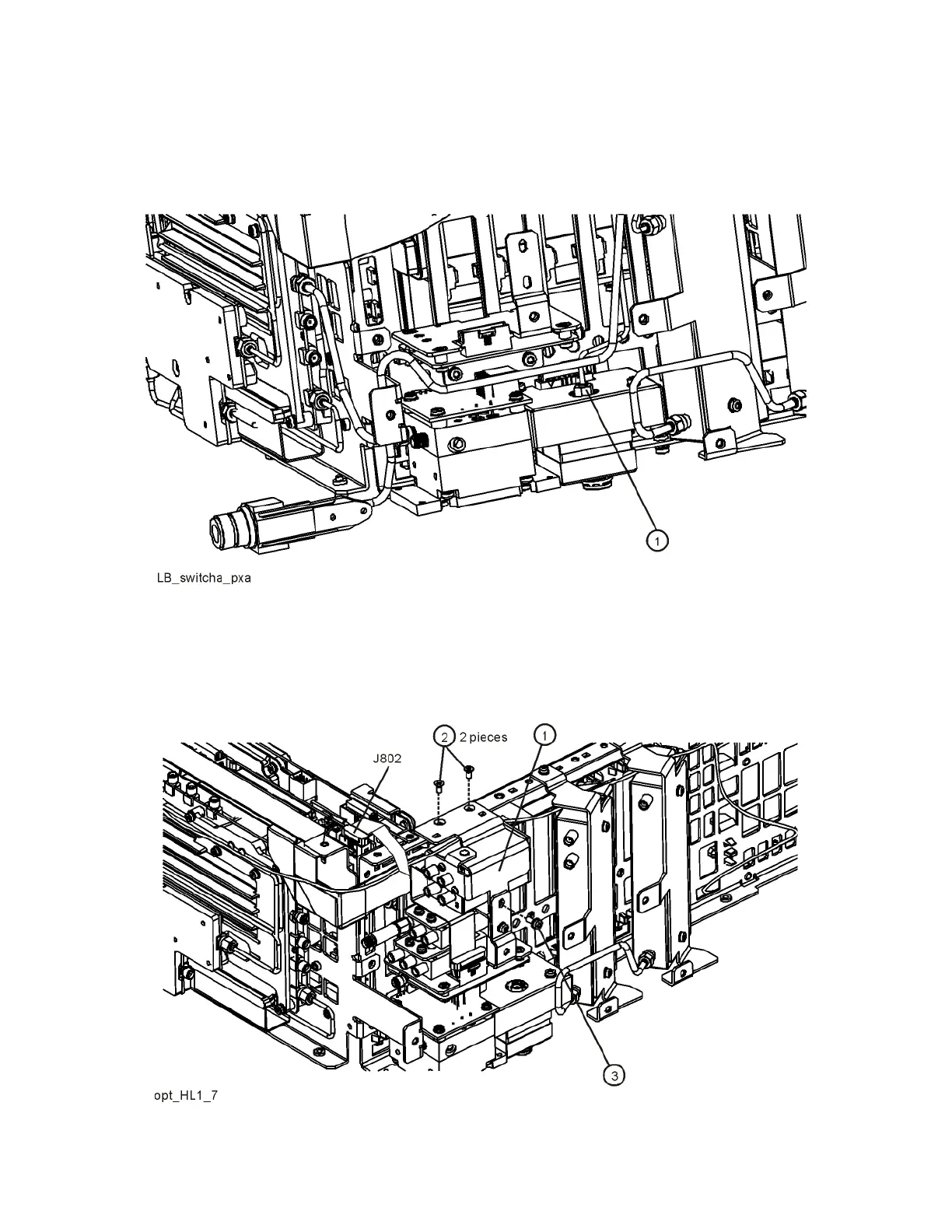

6. Refer to Figure 10. Completely loosen cable W2 (1) on the LO assembly.
Figure 10 Disconnect LO Cable
7. Refer to Figure 11. Loosen the switch assembly (1) by removing the two screws at the frame
(2) and the single screw on the side (3).
Figure 11 Switch Assembly
