N9030B PXA Signal Analyzer Service Guide 71
Boot Up and Initialization Troubleshooting
Potential Problems During Boot Process

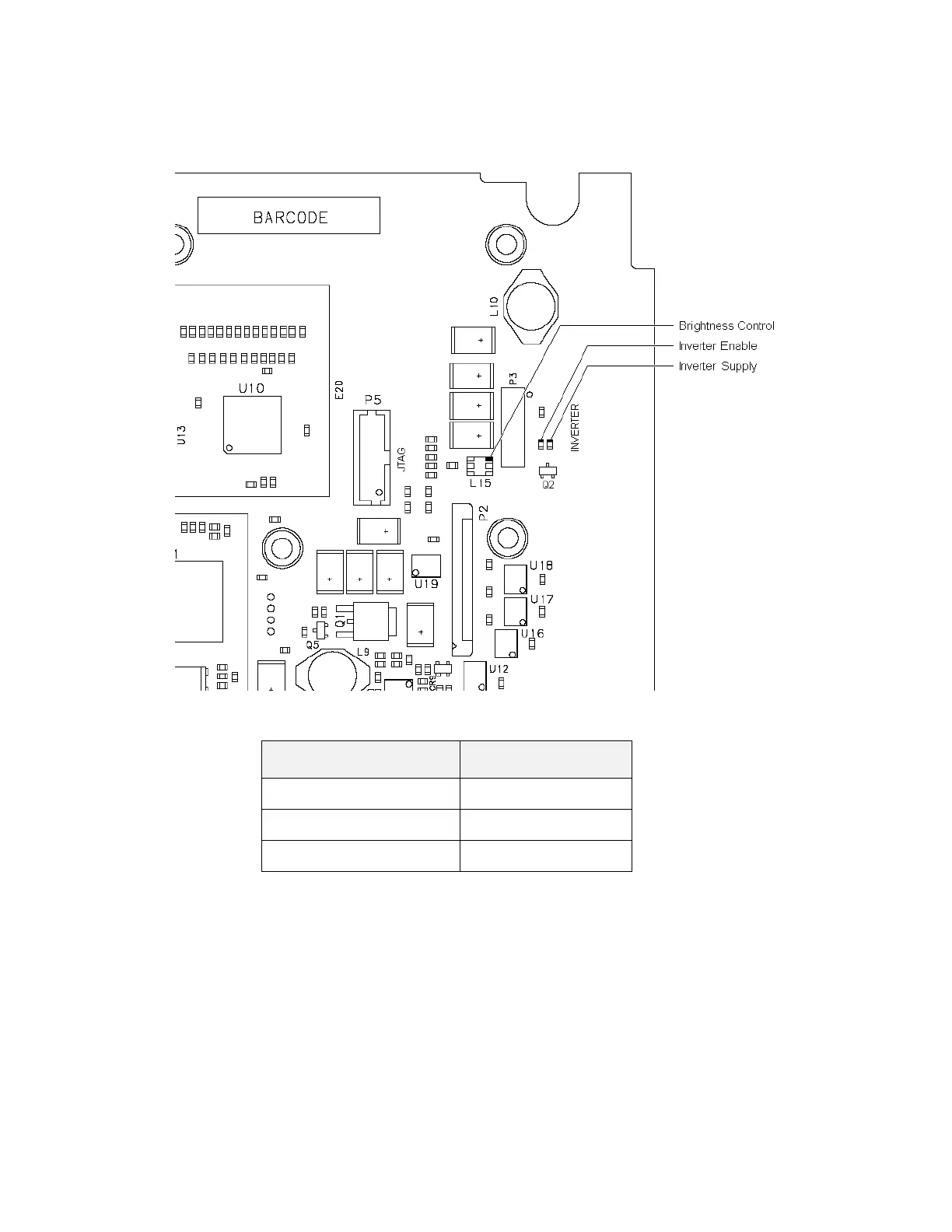

Figure 2-9 A1A2 Front Panel Interface Board LCD Backlight Inverter Control Voltages
10.Are all of the 3 voltage levels within their expected ranges?
If yes:
Replace the A1A4 LCD Inverter board.
If not:
Replace the A1A2 Front Panel Interface board.
Table 2-2 Expected Backlight Inverter Control Voltage Levels
Signal Expected Voltage
Brightness Control 0 to 3 VDC
Inverter Enable >6 VDC
Inverter Supply +12 VDC
