10 | Keysight | Low Current Semiconductor Measurements Using the B2980A Series Ammeter - Technical Overview
(continued)

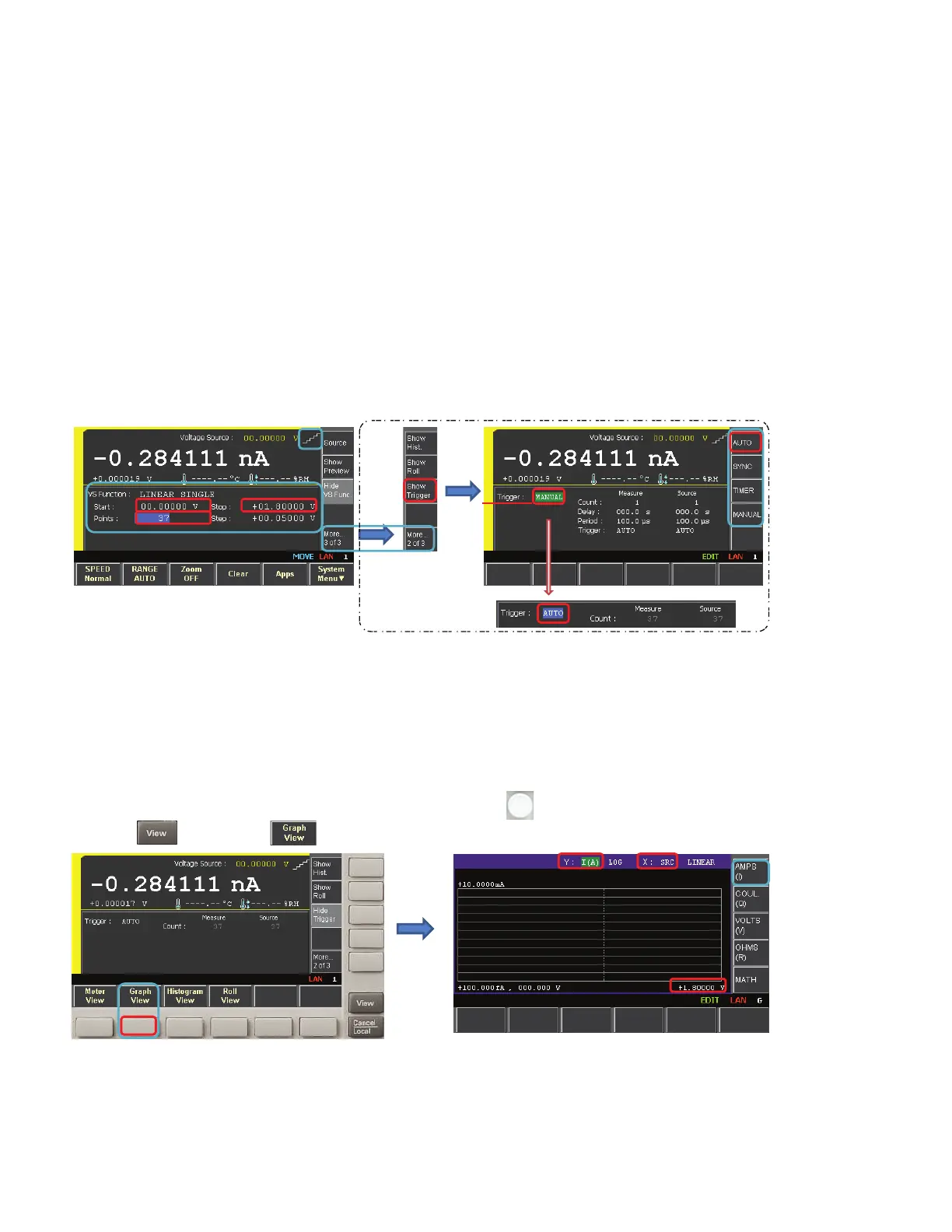

Step 3. (1) The Source function graphic changes to linear single sweep (upper right corner of screen).
- Start: 0 V
- Points: 37 (or any number required to achieve the desired Step voltage.)
(3) Press the [More... 3 of 3] assist key two times until it changes to the [More... 2 of 3] softkey label.
(4) Press the [Show Trigger] assist key. The trigger sub-panel is now displayed. If the Trigger mode is set to MANUAL as shown
in step (5), then perform the following steps:
(5) Using the [Knob], place the cursor over the Trigger function and press the knob to select it. This changes the assist softkey
labels.
(6) Press the [AUTO] assist key to change the Trigger function to AUTO mode.
(7) In this mode, the trigger parameter changes automatically as you change the sweep parameters.
Step 4. (1) Press the [View] key, and then press the [Graph View] function key. The X-Y graph view panel opens.
2-1. Y: I (A)
2-2. X: SRC (Source V)
1.
2.
3.
4.
5.
6.
7.
Optional steps
(1) Press key, then press soft key.
(2) Edit Y and X axis parameter to plot the data.
Use to select items, and select from the
list of the assist key.
1.
2-1. 2-2.
2-3.
To Next Page
