2. How to change the FFT settings ?

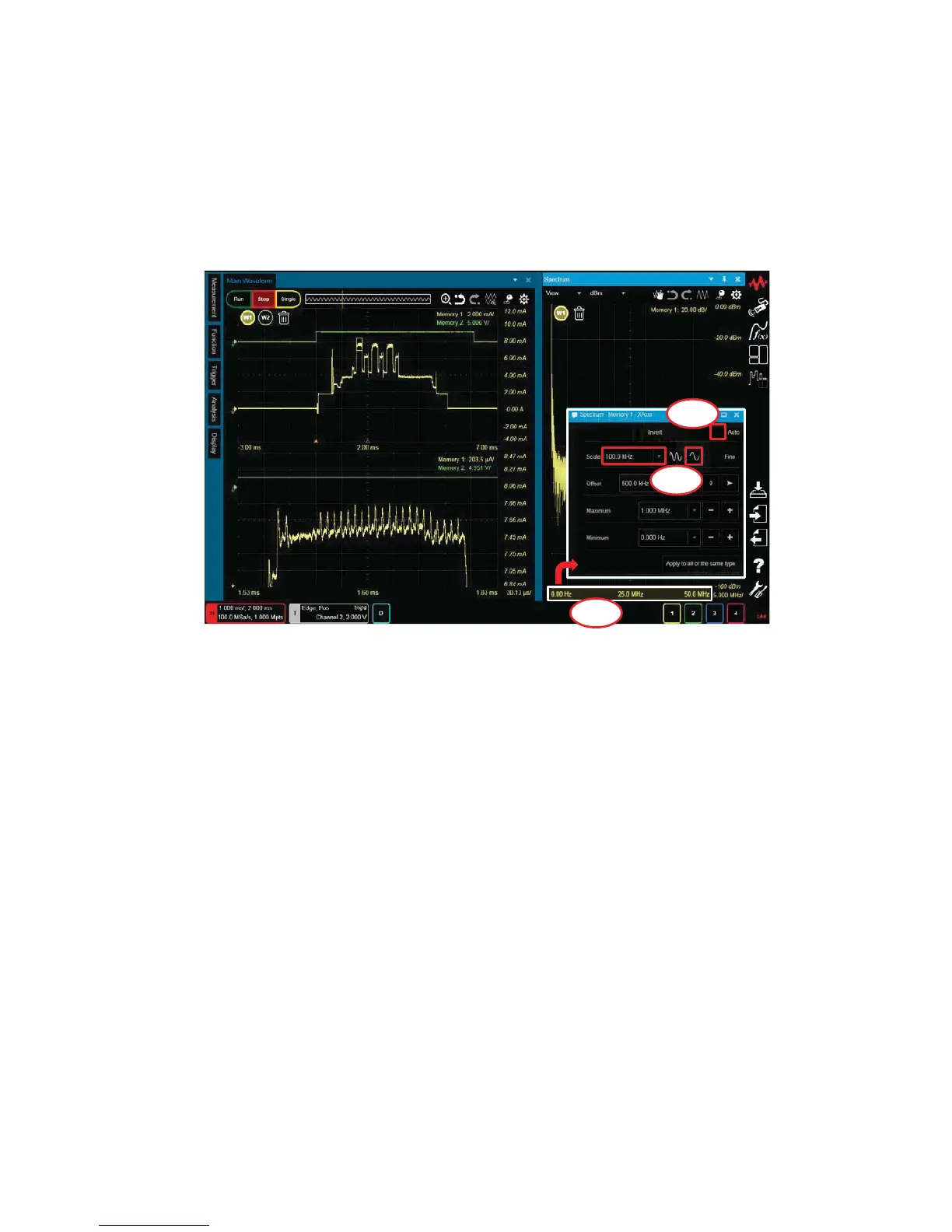

2-1. Double-click anywhere on the horizontal axes in the Spectrum graph
view.
2-2. Un-check the “Auto” box.
2-3. Click this button until the Scale is 100.0KHz.
3. How to adjust the chosen area of interest on the waveform ?
The CX3300 has two ways in which to adjust the chosen area of interest.
a) Gating Function > FFT
b) Waveform Zoom > FFT
Refer to the next page for further details.
2-2
2-3
2-1
Spectrum graph
45
To Next Page
