Gently slide the load module into the slot by pushing on the front of the load module.
Do not use ejector tabs as handles to support the load module while installing and seating into
the chassis. The ejector tabs are to be used only when ejecting.
4. Push the load module firmly into the backplane connector Figure: Seat the Load Module into
Backplane Connector. The load module must be firmly seated into the connector.

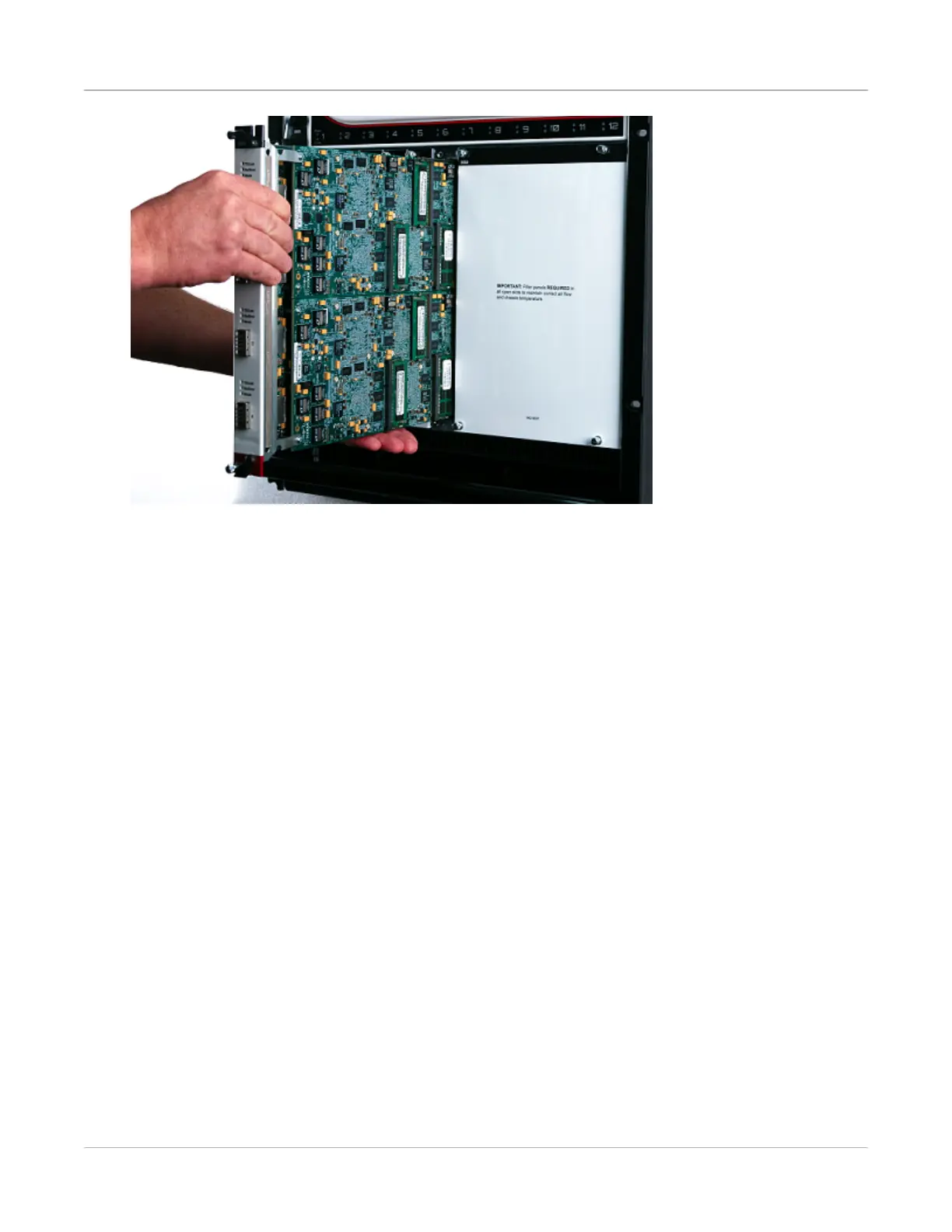

Figure: Seat the Load Module into Backplane Connector
Chapter 2 Installation
