6 Installation Note N9020-90185
Option CR3 or CRP Installation Kit

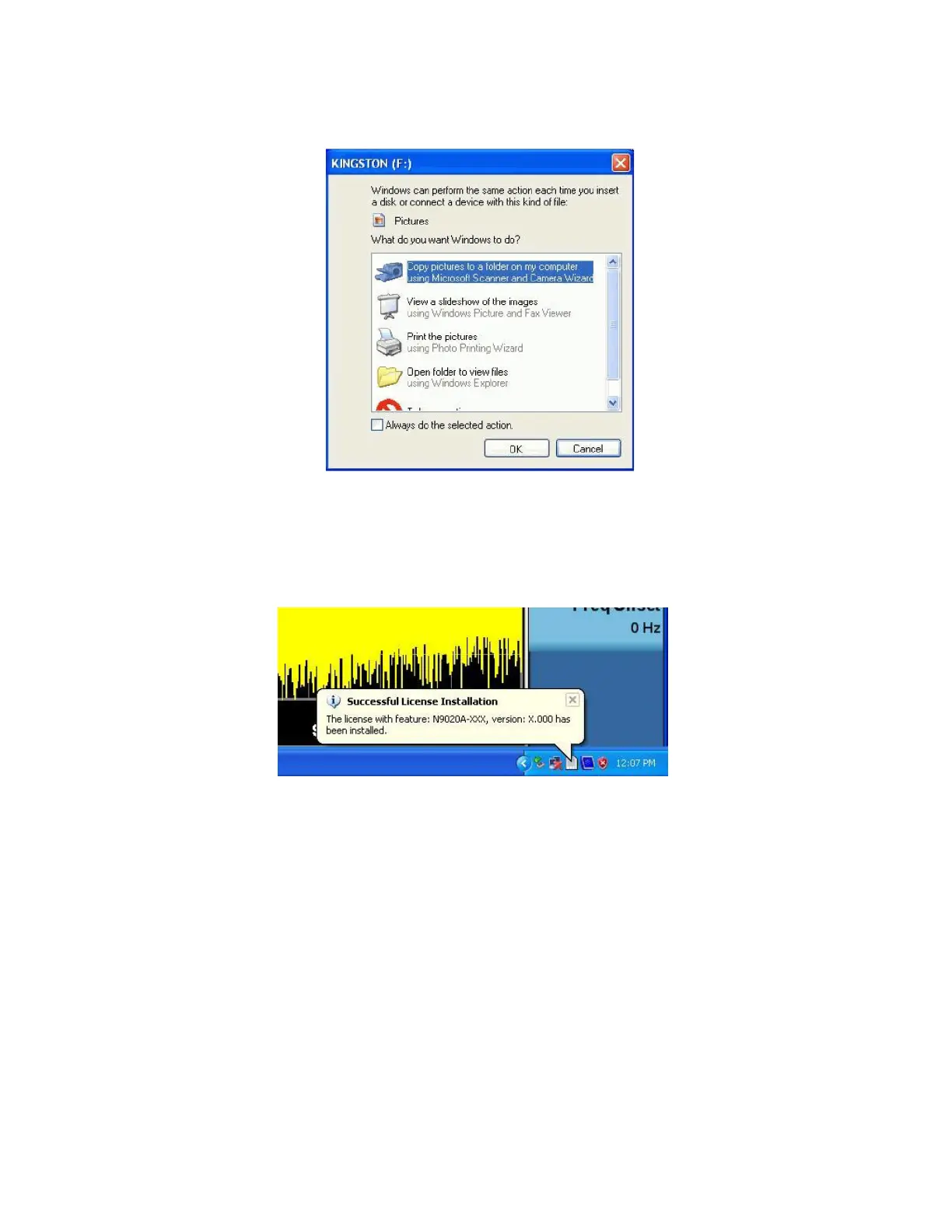

Figure 1 USB Storage Device Configuration Menu
7. The signal analyzer will automatically consume the License File. (This may take a few minutes)
When the License File is consumed the Keysight License Manager will display a “Successful
License Installation” message as shown in Figure 2.
Figure 2 Successful License Installation
Alternate Installation Procedure
The License File can be manually installed over USB or LAN by placing the license file in the
following folder on the signal analyzer
C:\Program Files\Agilent\licensing
Verify the Installation
1. Cycle the power on the signal analyzer.
2. Press System, Show, System to display a list of installed options.
3. Verify that the newly installed option appears on the list.

Keysight MXA Series Specifications

General

Resolution Bandwidth (RBW)	1 Hz to 10 MHz
Video Bandwidth (VBW)	1 Hz to 10 MHz
Display	10.4-inch touchscreen
DANL	-166 dBm at 1 GHz (typical, with preamp on)
Connectivity	LAN, USB, GPIB
Amplitude Range	+30 dBm
Dimensions	177 mm (H) x 426 mm (W)
Phase Noise	-98 dBc/Hz at 10 kHz offset (1 GHz carrier)
