Disassembly 4
Model N6705 Service Guide 87
Removing/Installing the Top Chassis
Step 1.
Remove the top cover and any modules as previously described.
Step 2.
Remove the two side panels.

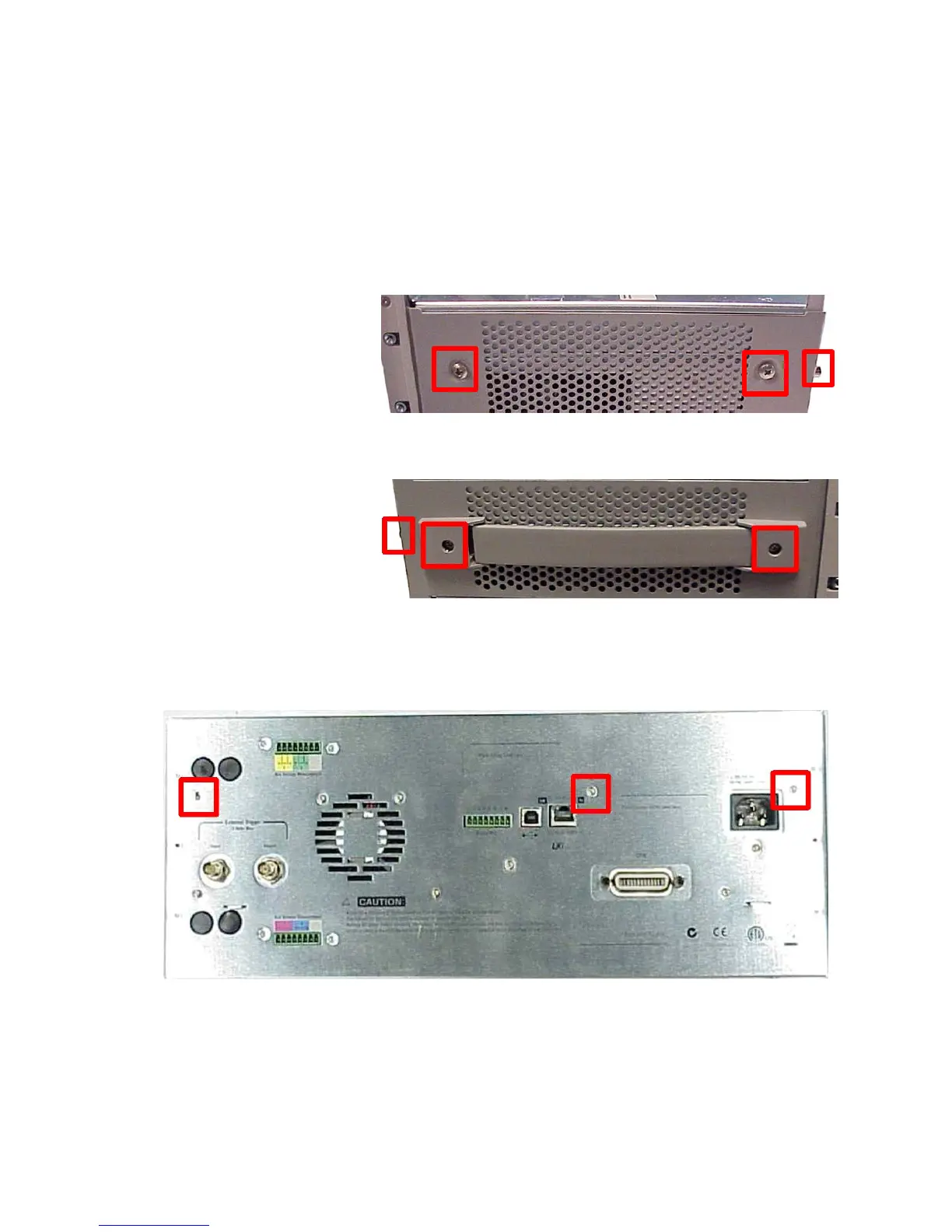

The handle side requires a T20 driver (see Figure 4-7). The other side
panel requires a Philips pozidrive head (see Figure 4-8). There is also a
screw (T10) that needs to be removed from the rear of each side panel.
Figure 4-7. Right Side Panel
Figure 4-8. Left Side Panel
Step 3
. Remove three screws using a T10 driver from the rear panel.
Figure 4-9
Step 4.
Remove three screws using a T10 driver from the front panel sub
assembly.
