Making Time-Gated Measurements
Gated LO Measurement

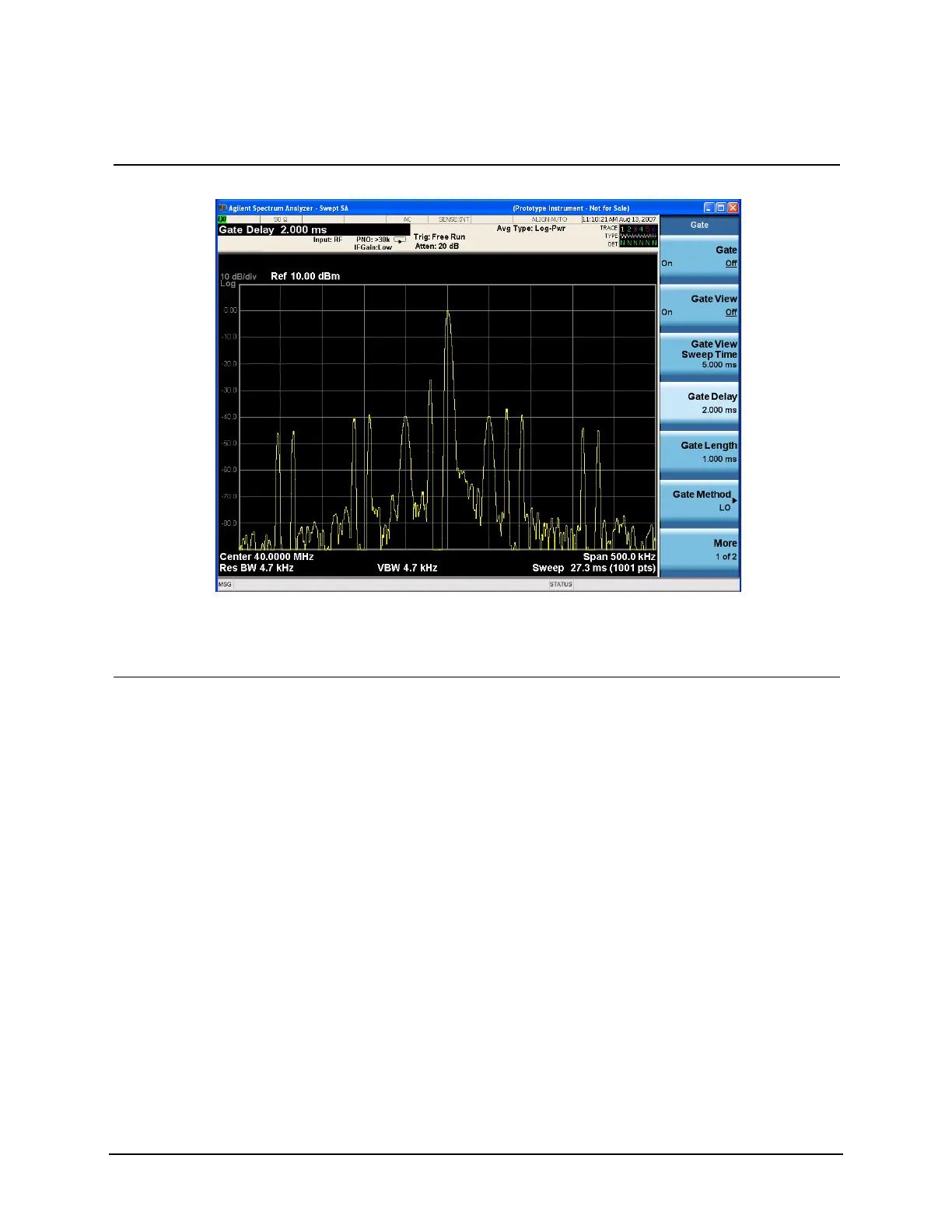

Figure 8-7 Pulsed RF FM Signal
The moving signals are a result of the pulsed signal. Using delta markers with a time readout, notice that the
period of the spikes is at 5 ms (the same period as the pulse signal). Using time gating, these signals well be
blocked out, leaving the original FM signal.
8 Enable the gate settings. • Press Gate (On). See Figure 8-8.
Step Action Notes
