Option Esc External Source Control
Using the M1970 Series Mixers with X-Series Signal Analyzers (Option EXM)

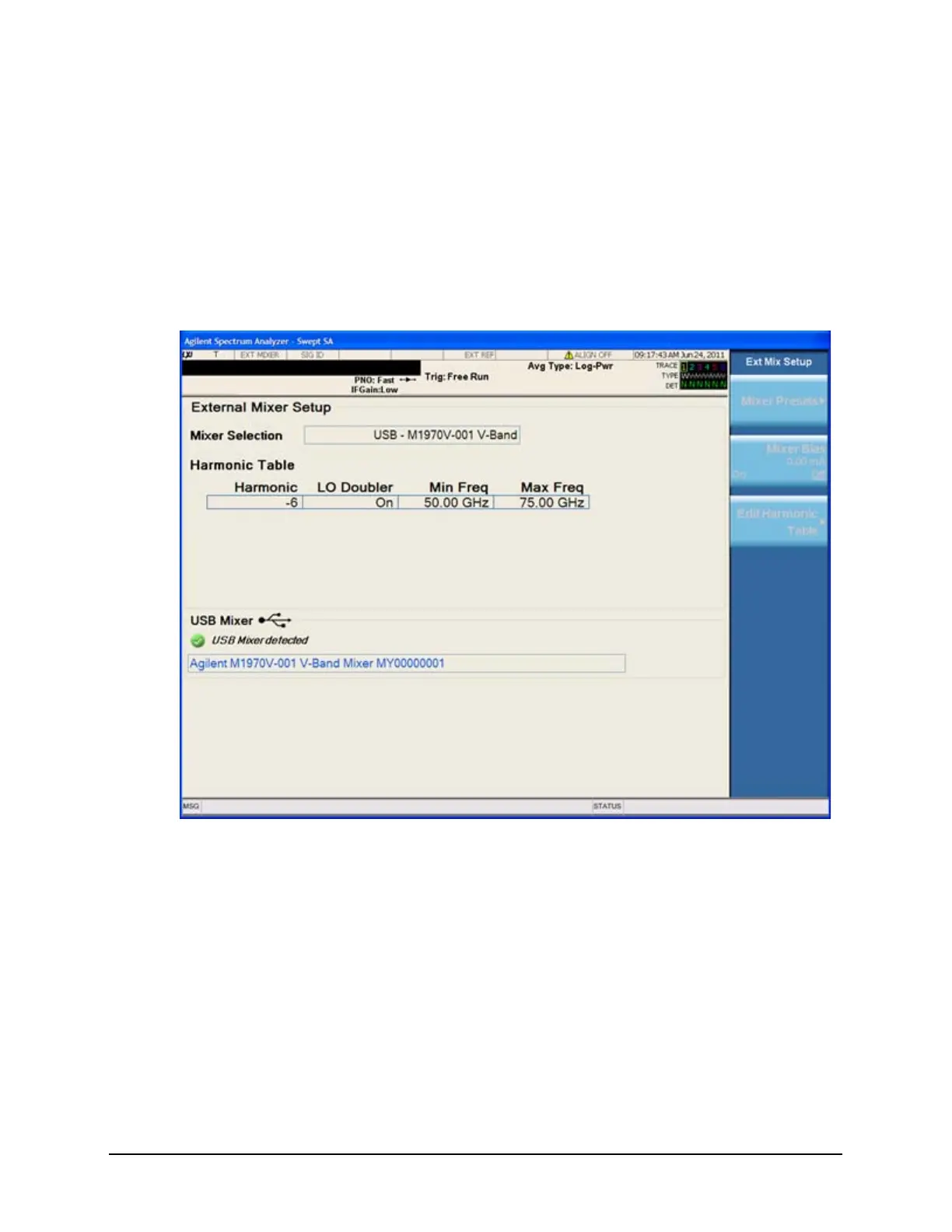

Viewing the external mixer setup screen
The mixer setup screen contains information such as mixer serial and model number,
harmonic mixing used, and the status of the mixer connection. When the USB mixer
is connected, the Mixer Preset, Mixer Bias and Edit Harmonic Table keys are grayed
out since these keys do not apply. However, if you unplug the USB cable, the Mixer
Presets key will become functional and the connection status will show USB Mixer
not connected.
To view the setup screen, press Input /Output, External Mixer, Ext Mix Setup.

Keysight N9030A Specifications

General

Analysis Bandwidth	Up to 40 MHz
Real-Time Bandwidth	Up to 40 MHz
Dynamic Range	> 100 dB
Resolution Bandwidth	1 Hz to 10 MHz
Operating System	Microsoft Windows
Connectors	USB, LAN, GPIB
Interface	USB, LAN, GPIB
Power Requirements	100 V to 240 V, 50 Hz to 60 Hz
