Keysight N9030A

105
Making Time-Gated Measurements
Gated Video Measurement

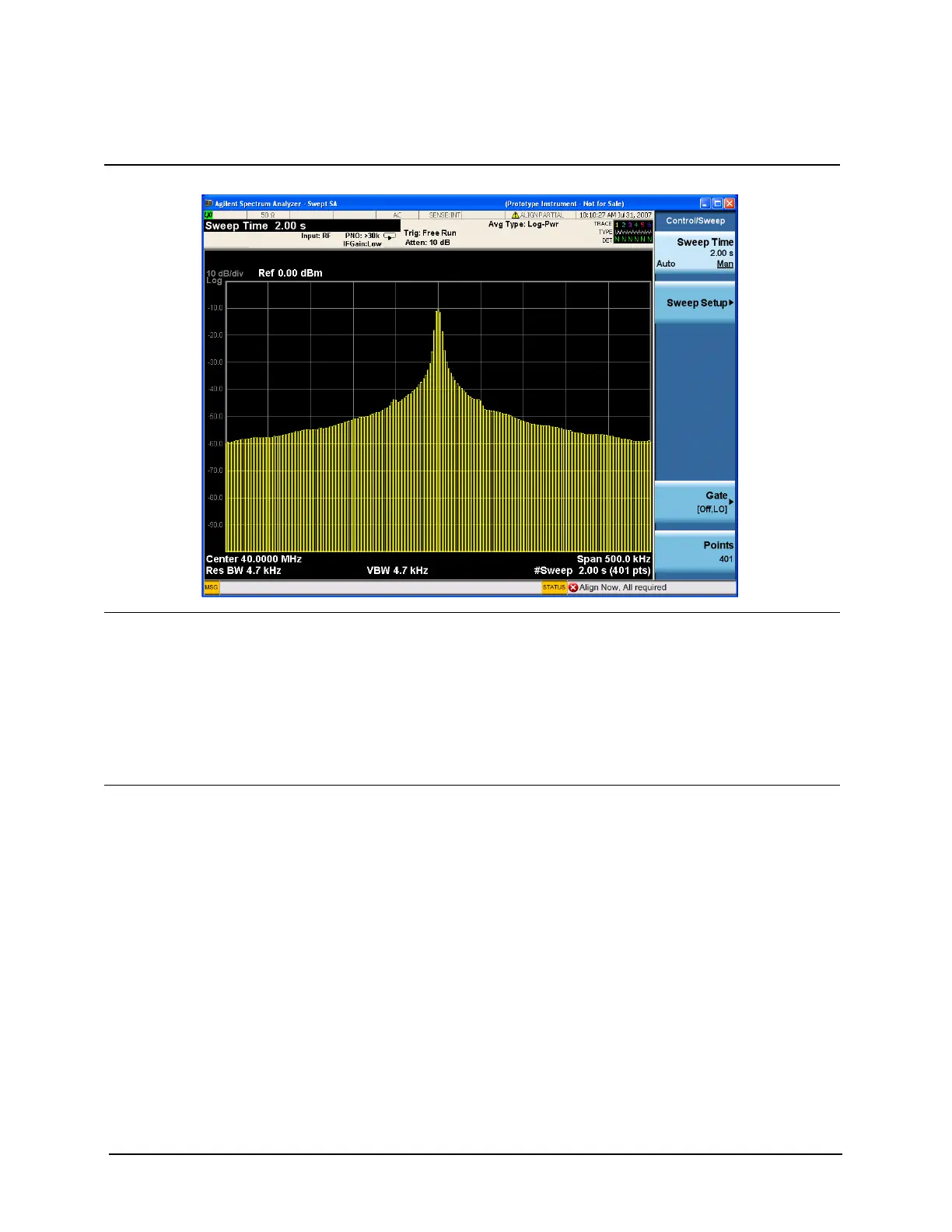

Figure 8-9 Viewing a Pulsed RF FM Signal (without gating)
6 Set the gate delay and
gate length.
a. Press Sweep/Control,
Gate, More, Control
(Edge).
b. Press More, Gate
Delay, 2, ms.
c. Press Gate Length, 1,
ms.
Ensure that the gate control is set to Edge.
7 Turn the gate on. a. Press Sweep/Control,
Gate, Gate Method,
Video.
b. Press Gate (On).
Step Action Notes
