Time Gating Concepts

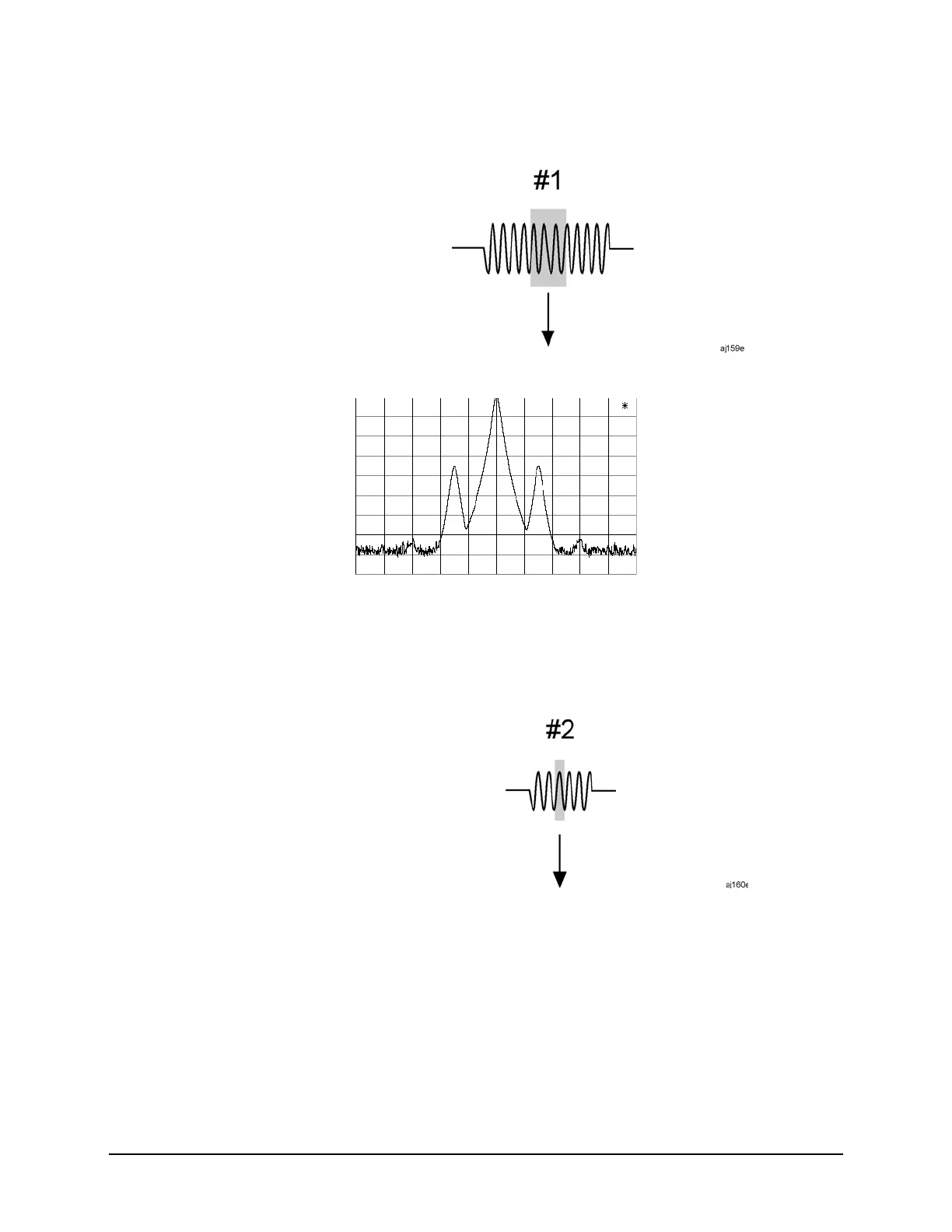

Figure 15-12 Signal within pulse #1 (time-domain view)
Figure 15-13 Using Time Gating to View Signal 1 (spectrum view)
Moving the gate so that it is positioned over the middle of signal 2 produces a result
as shown in Figure 15-15 Here, you see only the spectrum within the pulses of
signal 2; signal 1 is excluded.
Figure 15-14 Signal within pulse #2 (time-domain view)
