Keysight N9030A

35
Measuring Multiple Signals
Resolving Small Signals Hidden by Large Signals

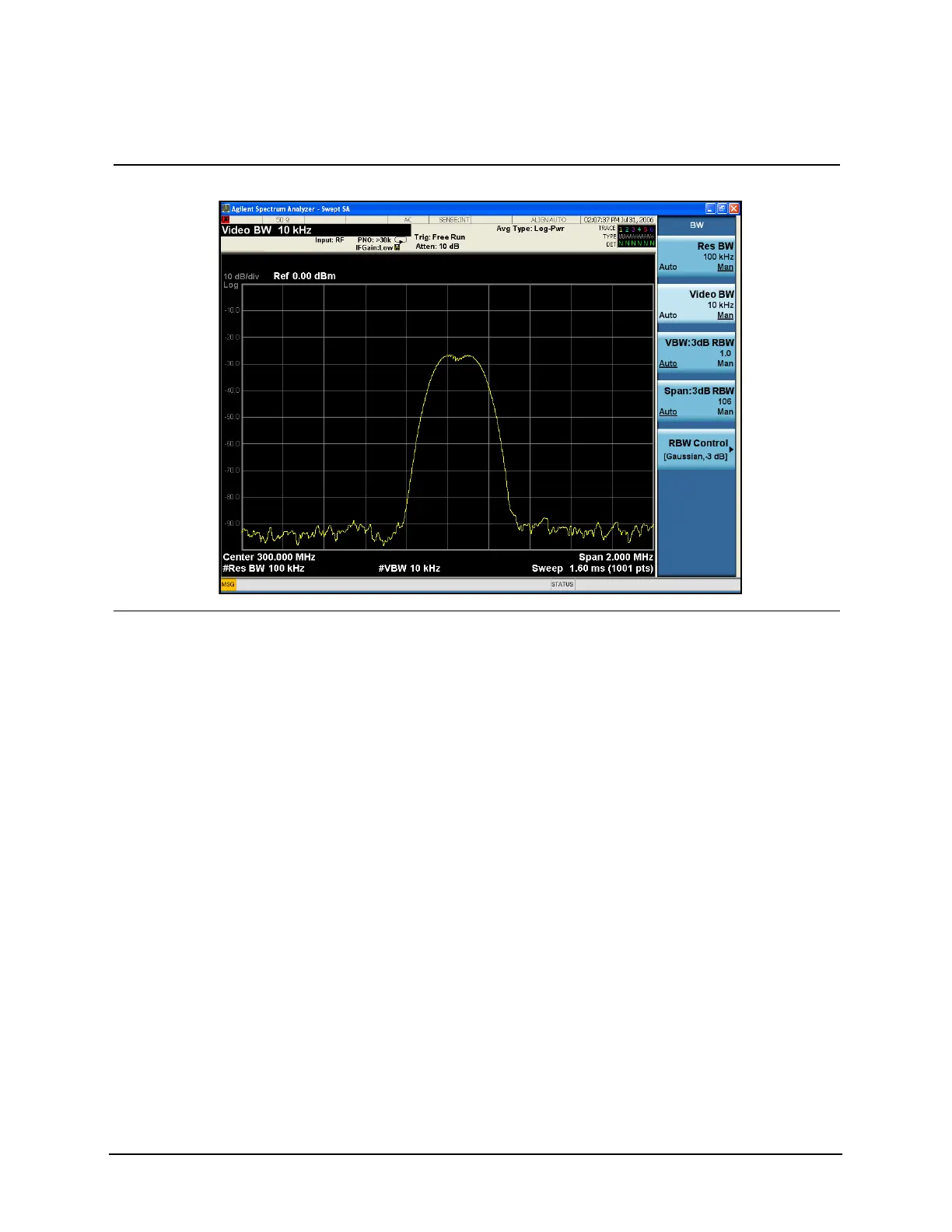

Figure 2-10 Unresolved Signals of Equal Amplitude
9 Decrease the RBW. • Press BW, 10, kHz. The Signal Analyzer 10 kHz
filter shape factor of 4.1:1 has
a bandwidth of 4.1 kHz at the
60 dB point. The
half-bandwidth, or 20.5 kHz,
is narrower than 50 kHz, so the
input signals can be resolved.
See Figure 2-11.
Step Action Notes
