Keysight PNA Series Installation And Service Guide

2-2 Installation and Service Guide N5251-90001
System Description
N5251A Network Analyzer System
PNA Series Microwave Network Analyzer System
N5251A
N5251A Network Analyzer S
ystem
The N5251A is a 2-port or 4-port vector network analyzer system with an extremely wide
frequency range of 10 MHz to 110 GHz. The N5251A uses the same 1.0 mm test port
connections throughout its entire range of test frequencies. It is never necessary to make and
break connections to complete a test.

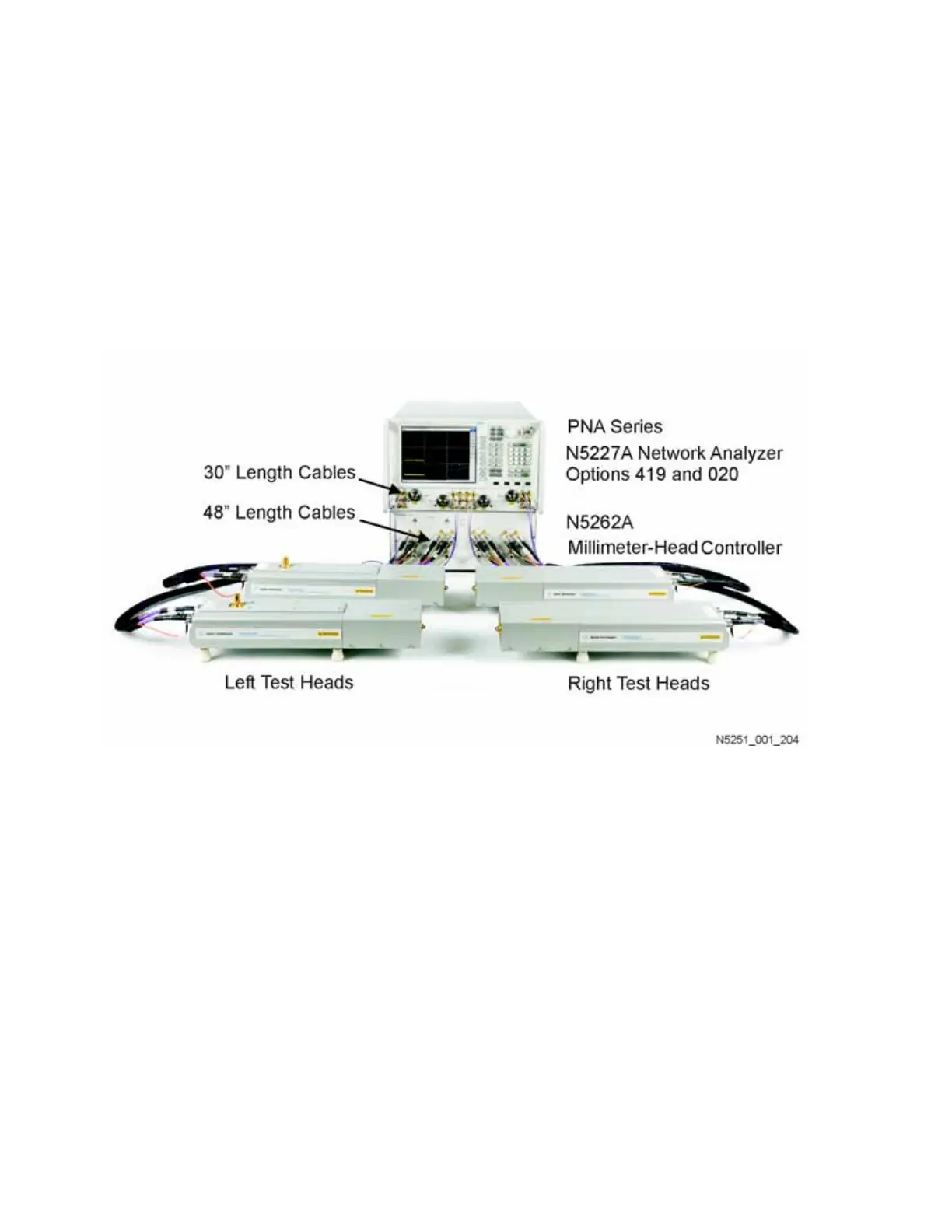

The illustration below shows the N5251A configured for coaxial measurement. The system can
also be configured for on-wafer measurement using a wafer probe test station.
Figure 2-1 N5251A 4-Port System

Keysight PNA Series Specifications

General

Number of Ports	2, 4
Impedance	50 Ω
Output Power Range	-55 dBm to +13 dBm (varies by model)
Dimensions	Varies by model
Weight	Varies by model
Power Requirements	100-240 VAC, 50/60 Hz
Storage Temperature	-40°C to 70°C
