Performing LCR Measurements
U1731C/U1732C/U1733C Quick Start Guide 5
Performing LCR Measurements
Auto Identification (Ai)
Press the button to automatically identify and select an
appropriate primary measurement function (L, C, or R), second-
ary measurement function (D, Q, or θ), and measurement mode
(parallel or series) for the device-under-test.

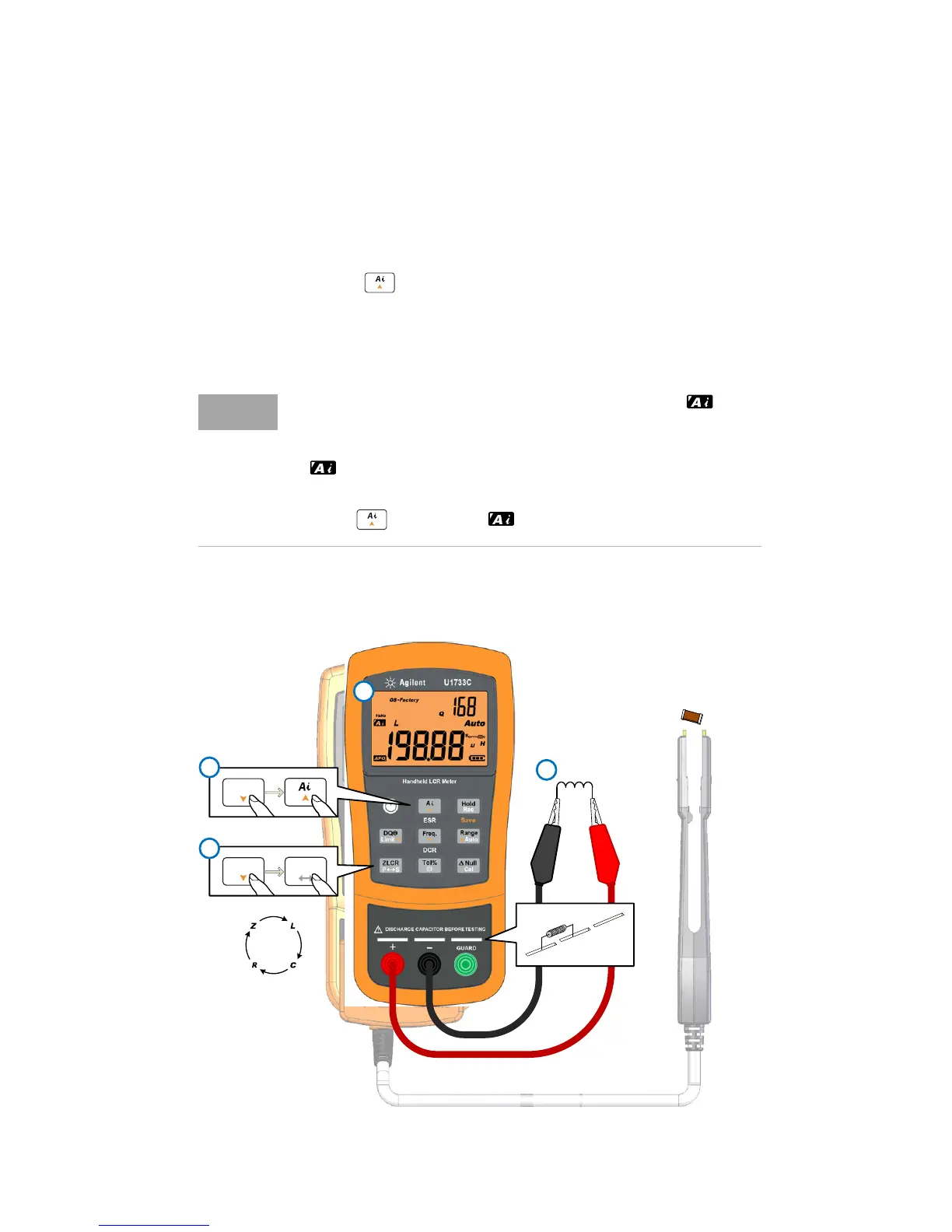

LCR measurement steps
NOTE
The LCR meter powers up in the Ai mode by default. is
shown on the left of the display screen when the Ai mode is
enabled.
• flashes when the LCR meter is identifying a measure-
ment function and mode.
• Press again while is shown to exit the Ai mode.
Inductor
3
2
OR
Surface Mount
Device (SMD)
U1782B
SMD Tweezers
P S
ZLCR
Freq .
1
Freq .
OR
1
